Insize Coating Thickness Gage ISO-1200FN

INSIZE COATING THICKNESS GAGE BASIC TYPE (CODE ISO-1200FN)

Probe is suitable for both magnetic and non-magnetic metal substrates Can measure the thickness of non-magnetic coating and non-metallic coating on magnetic metal substrate Substrate: iron, steel, magnetic stainless steel (not for non-magnetic stainless steel) Coating: zinc, aluminum, copper, chrome, tin, plastic, powder, paint (not for nickel) Can measure the thickness of non-conductive coating on non-magnetic metal substrate Substrate: copper, aluminum, zinc, non-magnetic stainless steel Coating: plastic, powder, paint, anodizing (not for chrome and zinc plating) 3 measuring modes: Fe, NFe, Fe/NFe Store 9 measuring records Small and portable, easy for operation

Download Catalog

Measuring range		0~2000 μm
Resolution		0.1μm (range<100μm) 1 μm (100μm<range<500μm) 0.01 mm (1.00mm<range<2mm)
Accuracy		±(2 μm + 3 % L) L is measuring thickness in μm
Measure interval		0.5s

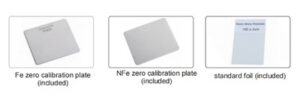

Calibration Mode		zero calibration
Measuring mode		Fe, NFe, Fe/NFe
Minimum substrate thickness	Fe	0.2mm
Minimum substrate thickness	NFe	0.05mm
Minimum measuring area		Ø25mm
Minimum Radius Of Curvature Workpieces	Convex Surface	5mm
Minimum Radius Of Curvature Workpieces	Concave Surface	25mm
Unit		μm/mil
Power Supply		2×1.5V AAA batteries
Main unit dimension		101x62x28 mm
Probe dimension		71x26x22 mm
Weight		114g

Probe is suitable for both magnetic and non-magnetic metal substrates
Can measure the thickness of non-magnetic coating and non-metallic coating on magnetic metal substrate
Substrate: iron, steel, magnetic stainless steel (not for non-magnetic stainless steel)
Coating: zinc, aluminum, copper, chrome, tin, plastic, powder, paint (not for nickel)
Can measure the thickness of non-conductive coating on non-magnetic metal substrate
Substrate: copper, aluminum, zinc, non-magnetic stainless steel
Coating: plastic, powder, paint, anodizing (not for chrome and zinc plating)
3 measuring modes: Fe, NFe, Fe/NFe
Store 9 measuring records
Small and portable, easy for operation
