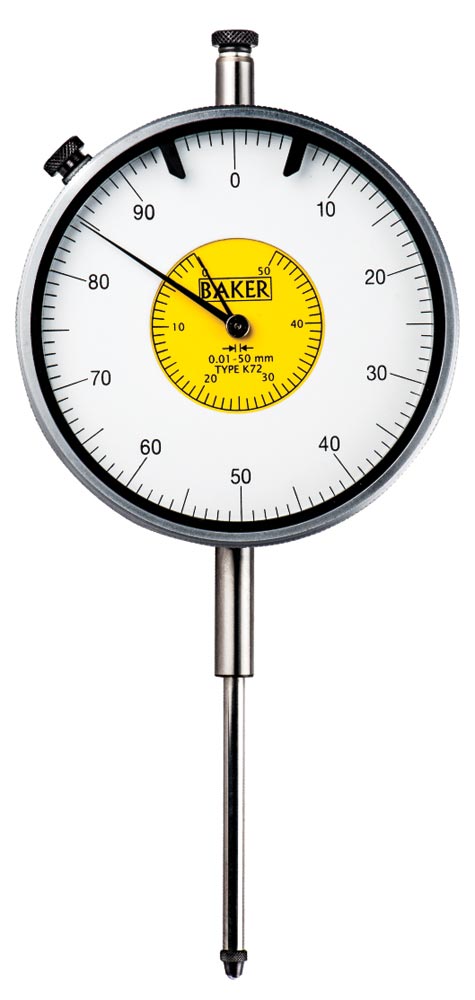

BAKER MECHANICAL PLUNGER DIAL GAUGES (MODEL 88)

Baker Mechanical large Diameter plunger type dial gauge with range 50mm/2inch. Used formeasuring larger range up 50mm.

Buy Now

Type	Range	Reading	Graduation
K72	50 mm	0.01 mm	0-100
K76	2″	0.001″	0-100

Specification: IS, DIN, ANSI & JIS

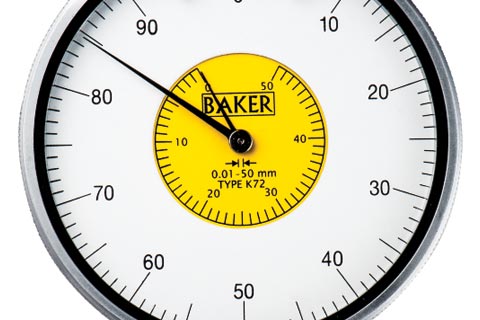

The one revolution dial gauge eliminates reading errors due to multiple revolutions
Shock proof mechanism to absorb shock due to sudden spindle impact
Every gauge carries a calibration certificate giving actual values
Hardened stem for trouble free clamping
Spindle made of stainless steel
Fitted with tungsten carbide ball anvil
Rigid brass case for increased rigidity
Strong and smooth metal bezel
Supplied with tolerance pointers
Aesthetically appealing protective top cap in black colour
Special dial Gauges for OEMs also manufactured on request
