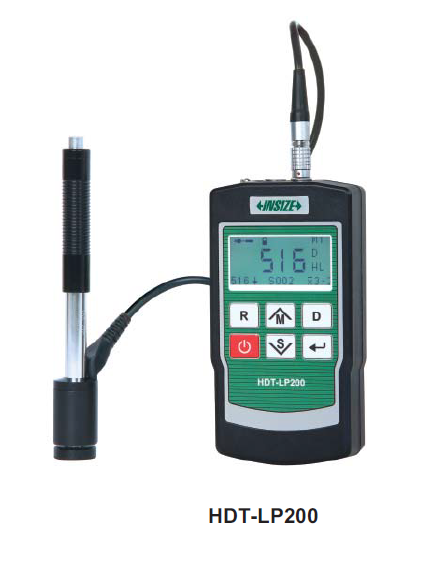

Insize HDT-LP200 | Portable Leeb Hardness Tester Basic

INSIZE PORTABLE LEEB HARDNESS TESTER (BASIC TYPE) HDT-LP200

Description: Can change probes Dual-coil probe for high accuracy Universal testing angle, no need to set impact direction Based on Leeb (HLD), converted to Vickers (HV), Brinell (HB), Rockwell (HRC, HRA and HRB), Shore (HS) and tensile strength (SGM) Dual value display, shows both Leeb and converted hardness Large LCD display with backlight Can choose

Specification:

Code	HDT-LP200	HDT-LP200B
Printer	not included	included
Output		bluetooth
Resolution	1HLD/1HV/1HB/0.1HRC/0.1HRB/ 0.1HRA/0.1HS/1SGM
Accuracy	±6HLD (when HLD=800)
Measuring range	HL 100-960/HRC 0.9-79.2/HRB 1-140/ HB 1-1878/HV 1-1698/HS 0.5-1370/ HRA 1-88.5/SGM (rm) 1-6599N/mm2
Power supply	2xAA battery
Dimension	127x67x30mm
Weight	240g

Standard Delivery:

Main unit	1 pc
Hardness test block D	1 pc
Small support ring	1 pc
Cleaning brush	1 pc
Impact device D	1 pc
Printer (inclded in HDT-LP200B)	1 pc

Applicable Workpiece:

Impact device		DC	C	D	D+15	DL	E	G
Application		inner wall of small space	small or thin workpiece, coating layer	general use	deep groove	narrow slot or small hole	very hard material	casting or forging workpiece
Maximum roughness of workpiece (Ra)		2pm	0.4pm	2pm	2pm	2pm	2pm	7pm
Minimum weight of workpiece	direct measurement	5kg	1.5kg	5kg	5kg	5kg	5kg	15kg
	on solid support	2kg	0.5kg	2kg	2kg	2kg	2kg	5kg
	coupled on plate	0.05kg	0.02kg	0.05kg	0.1 kg	0.05kg	0.05kg	0.5kg
Minimum thickness of workpiece		3mm	1mm	3mm	3mm	3mm	3mm	10mm

Description:

Can change probes
Dual-coil probe for high accuracy
Universal testing angle, no need to set impact direction
Based on Leeb (HLD), converted to Vickers (HV), Brinell (HB), Rockwell (HRC, HRA and HRB), Shore (HS) and tensile strength (SGM)
Dual value display, shows both Leeb and converted hardness
Large LCD display with backlight
Can choose large font display and statistics display
Automatically calculate maximum, minimum and average value
Save 300 data
Operating temperature: -10°C-’45°C
According to ASTM A956, DIN 50156, GB/T 17394
