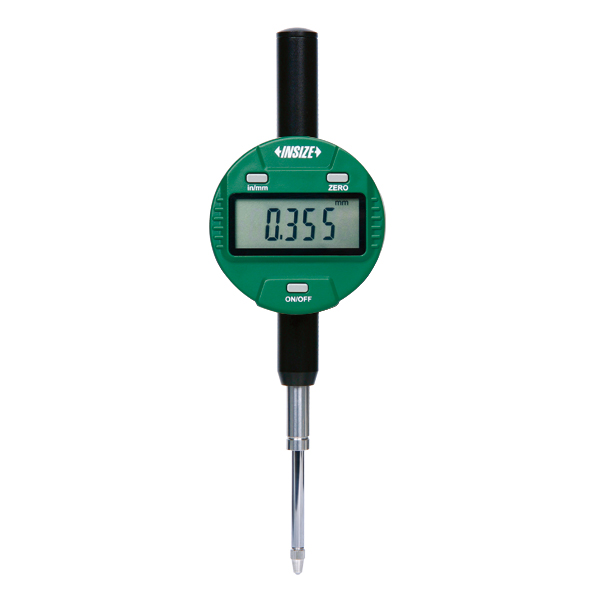

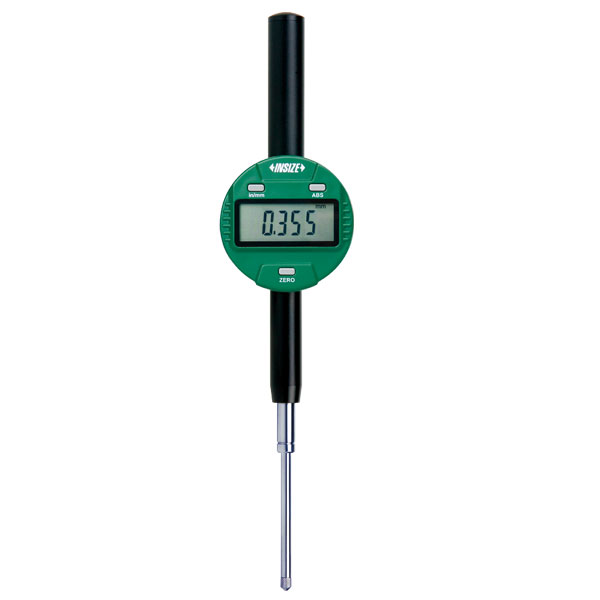

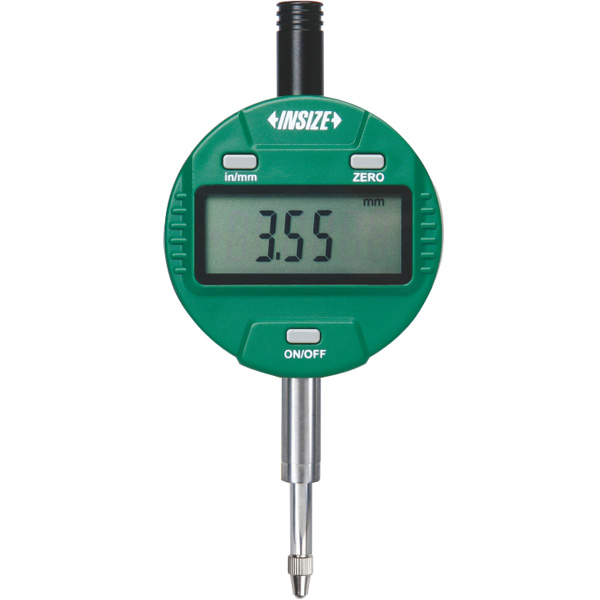

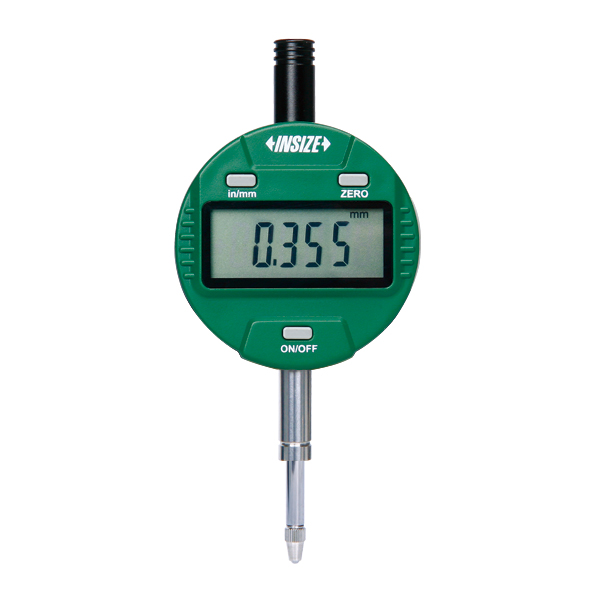

INSIZE DIGITAL INDICATOR STANDARD TYPE (CODE – 2112)

Button function: on/off, inch/mm, zero, data preset, change measuring direction, absolute/incremental measurement Switchable high/low frequency measurement mode, high frequency mode is suitable for high speed moving of spindle and has large power consumption, low power consumption in low frequency mode Keep preset data in memory after restart CR2032 battery, automatic power off (time is adjustable) Data output Optional accessory: data output cable code 7315-50M

Buy Now

Download Catalog

Resolution 0.001mm/0.00005″

Code	Range	Accuracy	Hysteresis	Maxmium Measuring Force	Remarks
2112-101F*	12.7mm/0.5″	5μm	2μm	1.5N	flat back
2112-251F*	25.4mm/1″	5μm	3μm	2.2N	flat back
2112-501F*	50.8mm/2″	6μm	3μm	2.5N	flat back
2112-101*	12.7mm/0.5″	5μm	2μm	1.5N	lug back
2112-251*	25.4mm/1″	5μm	3μm	2.2N	lug back
2112-501*	50.8mm/2″	6μm	3μm	2.5N	lug back
2112-251P*	25.4mm/1″	5μm	3μm	2.2N	flat back, with lift cap
2112-501P*	50.8mm/2″	6μm	3μm	2.5N	flat back, with lift cap

Resolution 0.01mm/0.0005″

Code	Range	Accuracy	Hysteresis	Maxmium Measuring Force	Remarks
2112-10F*	12.7mm/0.5″	5μm	2μm	1.5N	flat back
2112-25F*	25.4mm/1″	5μm	3μm	2.2N	flat back
2112-50F*	50.8mm/2″	6μm	3μm	2.5N	flat back
2112-10*	12.7mm/0.5″	5μm	2μm	1.5N	lug back
2112-25*	25.4mm/1″	5μm	3μm	2.2N	lug back
2112-50*	50.8mm/2″	6μm	3μm	2.5N	lug back
2112-25P*	25.4mm/1″	5μm	3μm	2.2N	flat back, with lift cap
2112-50P*	50.8mm/2″	6μm	3μm	2.5N	flat back, with lift cap

Button function: on/off, inch/mm, zero, data preset, change measuring direction, absolute/incremental measurement
Switchable high/low frequency measurement mode, high frequency mode is suitable for high speed moving of spindle and has large power consumption, low power consumption in low frequency mode
Keep preset data in memory after restart
CR2032 battery, automatic power off (time is adjustable)
Data output
Optional accessory: data output cable code 7315-50M
