CP 3 FLUTE COUNTERSINKS

CP 3 FLUTE COUNTERSINKS

Download Catalog

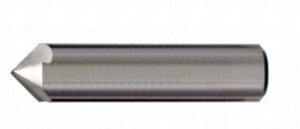

CS-12-3FLS (48130)

Material	Countersink – HSS
Range covered	Ø3 to 11mm
Max. spindle speed	800 rpm
Dimension in mm	Max Dia = 12.5, Shank Dia = 12.2, L = 55.25, Included angle: 90°
Packaging	Packaging: Card Box; Optional : Plastic Box
Pack Qty.	1
Packing Wt. in gms	56

CS-20-3FLS (48230)

Material	Countersink – HSS
Range covered	Ø5 to 19mm
Max. spindle speed	800 rpm
Dimension in mm	Max Dia = 21, Shank Dia = 12.2, L = 61, Included angle: 90°
Packaging	Packaging: Card Box; Optional : Plastic Box
Pack Qty.	1
Packing Wt. in gms	66

CS-30-3FLS (48330)

Material	Countersink – HSS
Range covered	Ø5 to 29 mm
Max. spindle speed	800 rpm
Dimension in mm	Max Dia = 31, Shank Dia = 12.2, L = 67, Included angle: 90°
Packaging	Packaging: Card Box; Optional : Plastic Box
Pack Qty.	1
Packing Wt. in gms	110.5

CS-40-3FLS (48430)

Material	Countersink – HSS
Range covered	Ø5 to 38 mm
Max. spindle speed	800 rpm
Dimension in mm	Max Dia = 41, Shank Dia = 12.2, L = 69.5, Included angle: 90°
Packaging	Packaging: Card Box; Optional : Plastic Box
Pack Qty.	1
Packing Wt. in gms	158.5

CS-12-3FLS (48130)

For Hole Deburring / Chamfering with a higher MRR(Material Removal Rate).
For hole size from 3 to 11 mm.
Suitable for chamfering/deburring holes on Steel, Aluminum and Copper. Can also be used on all other metals (hardness<35 HRC) and plastics.
Only for use on Lathe/Drill/CNC machines.
For left & right hand users both.

CS-20-3FLS (48230)

For Hole Deburring / Chamfering with a higher MRR(Material Removal Rate).
For hole size from 5 to 19 mm.
Suitable for chamfering/deburring holes on Steel, Aluminum and Copper. Can also be used on all other metals (hardness<35 HRC) and plastics.
Only for use on Lathe/Drill/CNC machines.
For left and right hand users both

CS-30-3FLS (48330)

For Hole Deburring / Chamfering with a higher MRR(Material Removal Rate).
For hole size from 5 to 29 mm.
Suitable for chamfering/deburring holes on Steel, Aluminum and Copper. Can also be used on all other metals (hardness<35 HRC) and plastics.
Only for use on Lathe/Drill/CNC machines.
For left and right hand users both

CS-40-3FLS (48430)

For Hole Deburring / Chamfering with a higher MRR(Material Removal Rate).
For hole size from 5 to 38 mm.
Suitable for chamfering/deburring holes on Steel, Aluminum and Copper. Can also be used on all other metals (hardness<35 HRC) and plastics.
Only for use on Lathe/Drill/CNC machines.
For left and right hand users both
