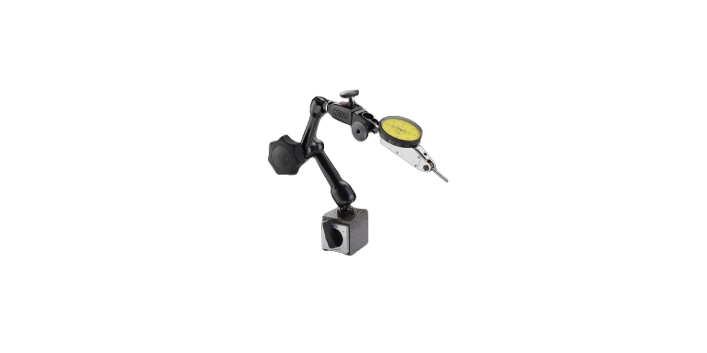

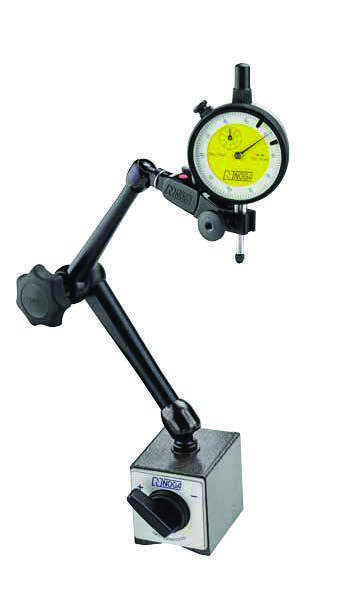

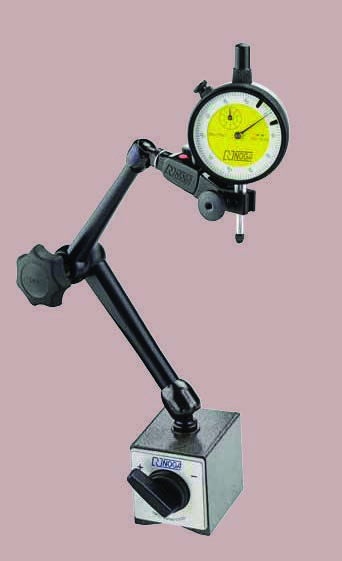

The NOGA Universal Sets & Indicators are complete measuring solutions designed for high precision in machining, inspection, and calibration tasks. These sets typically combine NOGA magnetic bases with dial indicators or test indicators, providing both stability and accuracy in one package.
Universal Design: Flexible arms and joints allow positioning at almost any angle.
Magnetic Base: Strong on/off magnetic switch for secure clamping on ferrous surfaces.
Fine Adjustment: Smooth micrometric adjustment for exact positioning of indicators.
Indicators: High-quality dial/test indicators for precise dimensional measurement.
Versatility: Suitable for a wide range of measuring, alignment, and inspection applications.
Order no. |
Holder | Arm Length | Indicators | Magnet | |||||
---|---|---|---|---|---|---|---|---|---|
Bottom Thread [D] | Weight [Kg] | Bottom Arm L1 | Top Arm L2 | Total L1 + L2 + L3 | Order no. | L | W | H | |
NF6150 | Ext. M5 | 0.6 | 56 | 51 | 178 | NF1000 | 40 | 30 | 35 |
DG6150 | Ext. M8 | 1.6 | 110 | 101 | 282 | DG1000 | 60 | 50 | 55 |
MG6150 | Ext. M8 | 2.1 | 133 | 113 | 317 | DG1000 | 60 | 50 | 55 |
Machine shops & CNC setups – for alignment and job setup.
Inspection departments – in quality control and dimensional accuracy checks.
Surface plate measurement – for calibration and precise inspection.
Maintenance & service work – for checking runout, flatness, or alignment.
