digital caliper code 1106 - review | Gokul Traders

With data interface

Code	Range	Accuracy	a (mm)	c (mm)	d (mm)	e (mm)	L (mm)
1106-301	0-300mm/0-12″	±0.05mm	18	24	100	20	420
1106-302	0-300mm/0-12″	±0.05mm	18	24	150	20	420
1106-451	0-450mm/0-18″	±0.05mm	18	24	100	20	625

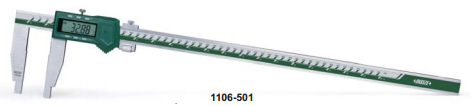

1106-501	0-500mm/0-20″	±0.05mm	18	24	100	20	675
1106-502	0-500mm/0-20″	±0.06mm	18	24	150	20	675
1106-503	0-500mm/0-20″	±0.06mm	24	31	200	20	675
1106-505	0-500mm/0-20″	±0.08mm	24	42	300	20	675
1106-601	0-600mm/0-24″	±0.05mm	18	24	100	20	770
1106-602	0-600mm/0-24″	±0.06mm	18	24	150	20	770
1106-603	0-600mm/0-24″	±0.06mm	24	31	200	20	770
1106-802	0-800mm/0-32″	±0.07mm	24	31	150	20	1025
1106-1002	0-1000mm/0-40″	±0.08mm	24	31	150	20	1220
1106-1003	0-1000mm/0-40″	±0.08mm	24	31	200	20	1220
1106-1005	0-1000mm/0-40″	±0.10mm	24	42	300	20	1220
1106-1502	0-1500mm/0-60″	±0.11mm	24	42	150	20	1780
1106-1503	0-1500mm/0-60″	±0.12mm	24	42	200	20	1780
1106-2002	0-2000mm/0-80″	±0.14mm	24	42	150	20	2290
1106-2003	0-2000mm/0-80″	±0.14mm	24	42	200	20	2290
1106-2502	0-2500mm/0-100″	±0.22mm	24	42	150	20	2800
1106-3002	0-3000mm/0-120″	±0.26mm	24	42	150	20	3300

Built-in wireless (receiver code 7315-2/3/6/7/8/9 is required)

Code	Range	Accuracy	a	c	d	e	L
1106-301WL	0-300mm/0-12″	±0.05mm	18	24	100	20	420
1106-302WL	0-300mm/0-12″	±0.05mm	18	24	150	20	420
1106-451WL	0-450mm/0-18″	±0.05mm	18	24	100	20	625
1106-501WL	0-500mm/0-20″	±0.05mm	18	24	100	20	675
1106-502WL	0-500mm/0-20″	±0.06mm	18	24	150	20	675
1106-601WL	0-600mm/0-24″	±0.05mm	18	24	100	20	770
1106-602WL	0-600mm/0-24″	±0.06mm	18	24	150	20	770

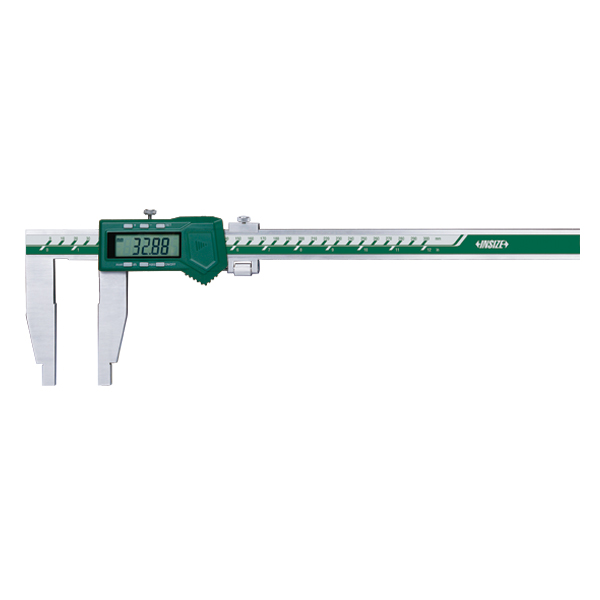

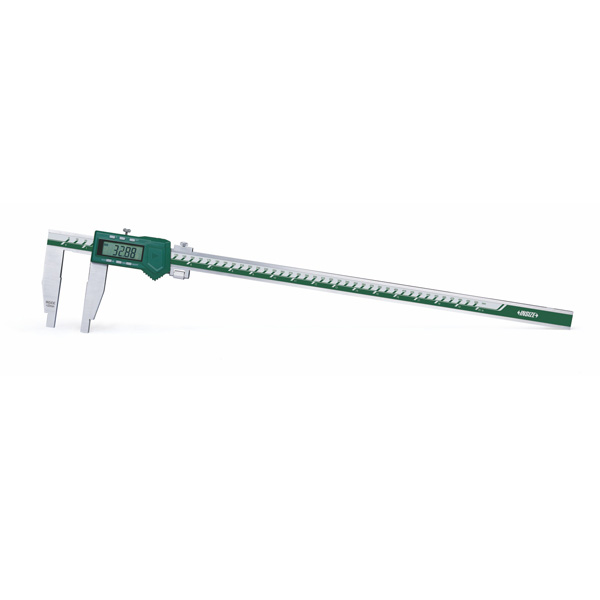

digital caliper

Non waterproof
Resolutions: 0.01mm/0.0005*
Button function : zero, mm/inch, on/off, ABS, data reset
Battery CR2032
Data Output
Made of stainless steel
Optional accesory: data output cable (code 7306-20, 7302-SPC5A/SPC5B, 7305-SPC2A)
Supplied with manufaturer calibration certificate
