Torque Calibrators

Torque calibrators offer the ability to check torque on a manual torque wrenches, electric and impact driven torque tools. Manual Torque Wrench Calibrators Manual torque wrench calibrators allows users to check torque on click type wrenches. Select remote or integrated sensor models. DIS-IP Digital Torque Tester for Manual Wrenches Model: DIS-IP with Remote Sensor Model:

Torque calibrators offer the ability to check torque on a manual torque wrenches, electric and impact driven torque tools.

Manual Torque Wrench Calibrators

Manual torque wrench calibrators allows users to check torque on click type wrenches. Select remote or integrated sensor models.

DIS-IP Digital Torque Tester for Manual Wrenches

Model: DIS-IP with Remote Sensor

Model: DIS-IPS with Minature Remote Sensor

Ranges

DIS-IP Ranges

Accuracy ± 0.5% F.S., ±1 LSD

Model		Capacity
DIS-IP (Drive Size)	lbf-in	kgf-cm	N-cm	N-m
DIS-IP5 (1/4″)	0.20~44.00	0.20~50.00	2.0~500.0	0.020~5.000
DIS-IP50 (3/8″)	2.0~440.0	2.0~500.0	20~5000	0.20~50.00
	lbf-in	lbf-ft	kgf-m	N-m
DIS-IP200 (1/2″)	20~1740	2.0~145.0	0.20~20.00	2.0~200.0
DIS-IP500 (3/4″)	20~4400	2.0~362.0	0.20~50.00	2.0~500.0

DIS-IPS (Drive Size)	lbf-in	kgf-cm	N-cm	N-m
DIS-IPS5C (3/4″)	0.20～45	0.20～50	—	0.020～5
DIS-IPS20C (3/4″)	2.0～174	2.0～200	—	0.20～20

Standard Features

DIS-IP Standard Features

Programmable High/Low setpoints with GO/NO GO LED indicators and audible beep
Peak, Real Time and Peak Down measuring modes (selectable)
Selectable units lbf-in, kgf-cm, N-cm, or lbf-ft, kgf-m, N-m
USB virtual COM port sends peak (1 data) or continuous data (12 or 180 data/second)
Statistics: number of data, Max, Min, Avg
800 data memory for recall or for SPC download
Accuracy: ±0.5% F.S. ±1 LSD ( 32° to 100°F)
Both clockwise and counterclockwise operation
Heavy duty metal construction
Runs on internal NiCad batteries (8 hour use)
AC adapter/charger included

DWT-200 Digital Torque Tester for Manual Torque Wrenches

Model: DWT-200

Ranges

DWT-200 Ranges (Resolution)

Accuracy: ±0.5% F.S. ±1 LSD

Model	Capacity
	lbf-in	kgf-cm	N-m
DWT-200	70~1740	70~2000	7.0~200.0

Standard Features

DWT-200 Standard Features

Proprietary peak down capture mode
Heavy duty metal construction
lbf-in, kgf-cm, N-m selectable
Peak Down, Peak, and Real Time measuring modes (selectable)
Accuracy: ±0.5% F.S. ±1 LSD ( 32° to 100°F)
Clockwise operation
1/2″ square drive and 3/8″ square drive adapter
Auto power off (after 10 minutes of non use)
Runs on four AA batteries (about 20 hours continuous use)
Optional vise mounting plate (AP-200V)

Electric Power Driver Calibrator

Series i Torque Calibrators

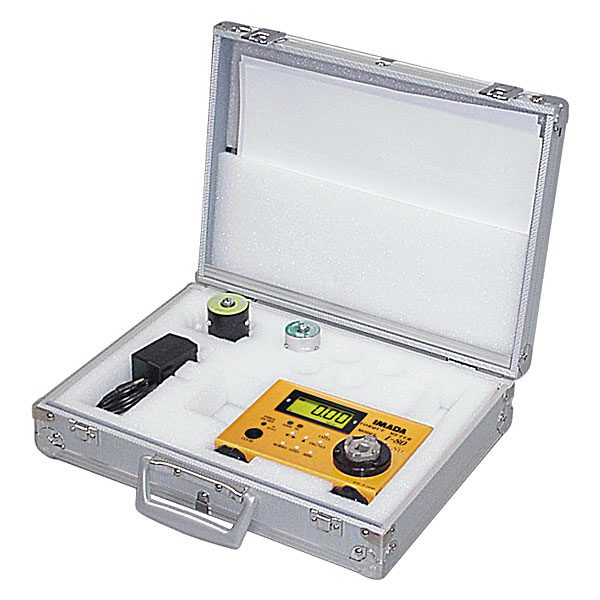

Torque Calibrators for Power Drives & Wrenches Series i

Ranges

Series i Ranges (Resolution)

Accuracy: ±0.5% F.S. ±1 LSD

Model		Capacity
	lbf-in	kgf-cm	N-cm	N-m
i-8	0.020~6.970	0.020~8.000	0.20~78.60	-
i-80	0.20~69.70	0.20~80.00	2.0~786.0	0.020~7.860
CD-150M	1.0~130.0	1.0~150.0	1.0~1500	0.10~15.00
DI-11	1.0~174.0 (0.1)	1.0~200.0 (0.1)	-	0.10~20.00 (.01)

Standard Features

Series i Standard Features

Wide measuring range up to 174 lbf-in
Selectable units lbf-in, Kgf-cm, N-cm and N-m
Programmable High/Low setpoints with audible beep for uniform torque tightening or GO/NO GO testing
2 – driver adapters included: i-8 & i-80 come with smart adapters, CD-150 & DI-11 come with spring adapters
Peak, Real Time and Peak Down measuring modes (selectable)
Measure both clockwise and counterclockwise
USB virtual COM port sends peak (1 data) or continuous data (12 or 180 data/second)
Statistics: number of data, Max, Min, Avg
Heavy-duty metal construction
Runs on internal NiCad batteries or AC adapter
3/8″ drive for socket wrenches

Specifications – Driver Adapters

	Adapter	Model	Range lbf-in	Top Screw	Operational life
i-8	Smart	OW-025E OW-10E	2 9	6-32 6-32	10,000 hrs 8,000 hrs
i-80	Smart	OW-20E OW-60E	18 53	8-32 1/4-20	5,000 hrs 5,000 hrs
CD-150M	Spring	SJ-50 SJ-130	8~50 50~130	5/16-18 3/8-16	2,500 uses 2,500 uses
DI-11	Spring	SJ-50 SJ-200	8~50 50~175	5/16-18 3/8-16	2,500 uses 2,500 uses

Air Tools & Impact Wrench Calibrator

Check torque on air tools and impact guns up to 362 lbf-ft. Select remote or integrated sensor models.

DI-1M Digital Torque Tester for Air Tools & Impact Wrenches

Series: DI-1M

DI-1M Ranges

Accuracy ± 0.5% F.S., ±1 LSD

Model		Capacity (Resolution)
	lbf-in	kgf-cm	N-m
DI-1M-50	3.0~440.0	3.0~500.0	30~5000 (N-cm)
DI-1M-200A	30~1740	30~2000	3.0~200.0
	lbf-ft	kgf-m	N-m
DI-1M-200	3.0~145.0	0.30~20.00	3.0~200.0
DI-1M-500	3.0~362.0	0.30~50.00	3.0~500.0

Standard Features

Ergonomic light weight, torque tester with heavy duty metal construction
Easy to read LED panel displays reference torque value in lbf-ft, kgf-m and N-m (selectable) and number of blows for selected period (0.1 – 9.9 sec)
Peak, Real Time and Peak Down measuring modes (selectable)
Accuracy: ±0.5% F.S. ±1 LSD ( 32° to 100°F)
Both clockwise and counterclockwise operation
USB Virtual COM port (peak data only)
Runs on internal NiCad batteries (8 hour use)
AC charger included

SJ Spring Adapter Ranges

Model	Capacity	Drive	Screw	for Model
SJ-200	200 lbf-in	3/8″	3/8-16	DI-1M-50
SJ-300	300 lbf-in	3/8″	1/2-13	DI-1M-50
SJ-500	500 lbf-in	1/2″	1/2-13	DI-1M-200
SJ-1500	1500 lbf-in	1/2″	3/4-10	DI-1M-200
SJ-2000	2000 lbf-in	3/4″	3/4-10	DI-1M-500
