Imada offers manual or motorized spring testers in vertical or horizontal configurations. Lever-operated manual systems enable rapid compression and tension spring testing. Wheel-operated manual systems enable slower, more precise movement with the hand wheel.
Motorized compression testers offer the most control and highest degree of repeatability with the ability to set a constant test speed and range of movement. All spring testers can be configured with a digital force gauge with data output for analysis by data acquisition software. An optional digital distance meter to measure displacement is available.

Wheel Operated Spring Tester

Model: HV-110

The Wheel Operated Spring Tester is ideal for measuring compression or tension of springs. The Model HV-110offers the precise control of a hand wheel test stand. The HV-110 measures both compression and tension without any conversion and is equipped with a precision digital distance meter. Imada force gauges are available in capacities of a few ounces up to 110 lbf. Consult our engineers for custom applications.
hv-110spring-t

Standard Features
Wheel Operated Digital Spring Tester Standard Features
  • HV-110S test stand with distance meter
  • DS2 Digital Force gauge (specify range)
  • AA-40 or AA-60 Flat head (top, for compression tests)
  • or S-1 Small hook (bottom, for tension tests)
  • One tester for both tension and compression spring tests
  • Generous work area can accommodate a wide variety of samples
  • Suitable for tests where a high degree of control is required
  • Maximum load 110 lbf (50 kgf)
  • Max clearance 9″ (with extender 14″)



Lever Operated Spring Tester

The Lever Operated Spring Tester offers the rapid action of a lever test stand and can be configured to measure either compression or tension. The test stand is equipped with a digital distance meter. Imada DS2 force gauges are available in capacities of a few ounces up to 220 lbf. Both force and displacement data may be collected. Consult our engineers for custom applications.

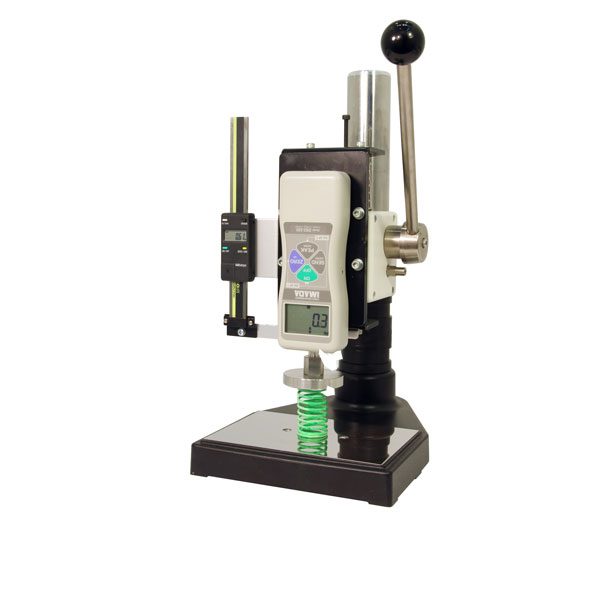

svl-220-compression-spring-tester

Standard Features
Lever Operated Spring Tester Standard Features
  • NLV-220-S test stand with distance meter
  • DS2 Digital Force gauge (specify range)
  • AA-40 or AA-60 Flat head (top, for compression tests)
  • or S-1 Small hook (bottom, for tension tests)
  • Maximum load 220 lbf (100 kgf)
  • Stroke 2″
  • Maximum clearance 9″ (or 14″ with optional extender plate)
