NOGA DOUBLE EDGE CUTTING

  • Double Edge Cutting Tools are specially designed tools featuring dual cutting edges for enhanced efficiency and longer tool life. They provide smooth and precise cutting, deburring, and finishing performance on various metal and plastic components. Ideal for industrial and workshop applications, these tools ensure better productivity with reduced blade replacement frequency.
  • Heavy Duty 3.2mm Swivel blades. For fast and easy removal of burrs from Straight edge, Curved edge, Holes, Cross holes and Deep holes. A comprehensive program to cover all your heavy duty deburring needs. Choose the right blade for your workpiece material and dimensions.Some blades are available for right hand or left hand operation, and some are for both. Some blades are made of M35 Super H.S.S. or Tungsten Carbide and certain blades can be obtained Tin-coated for longer tool life.

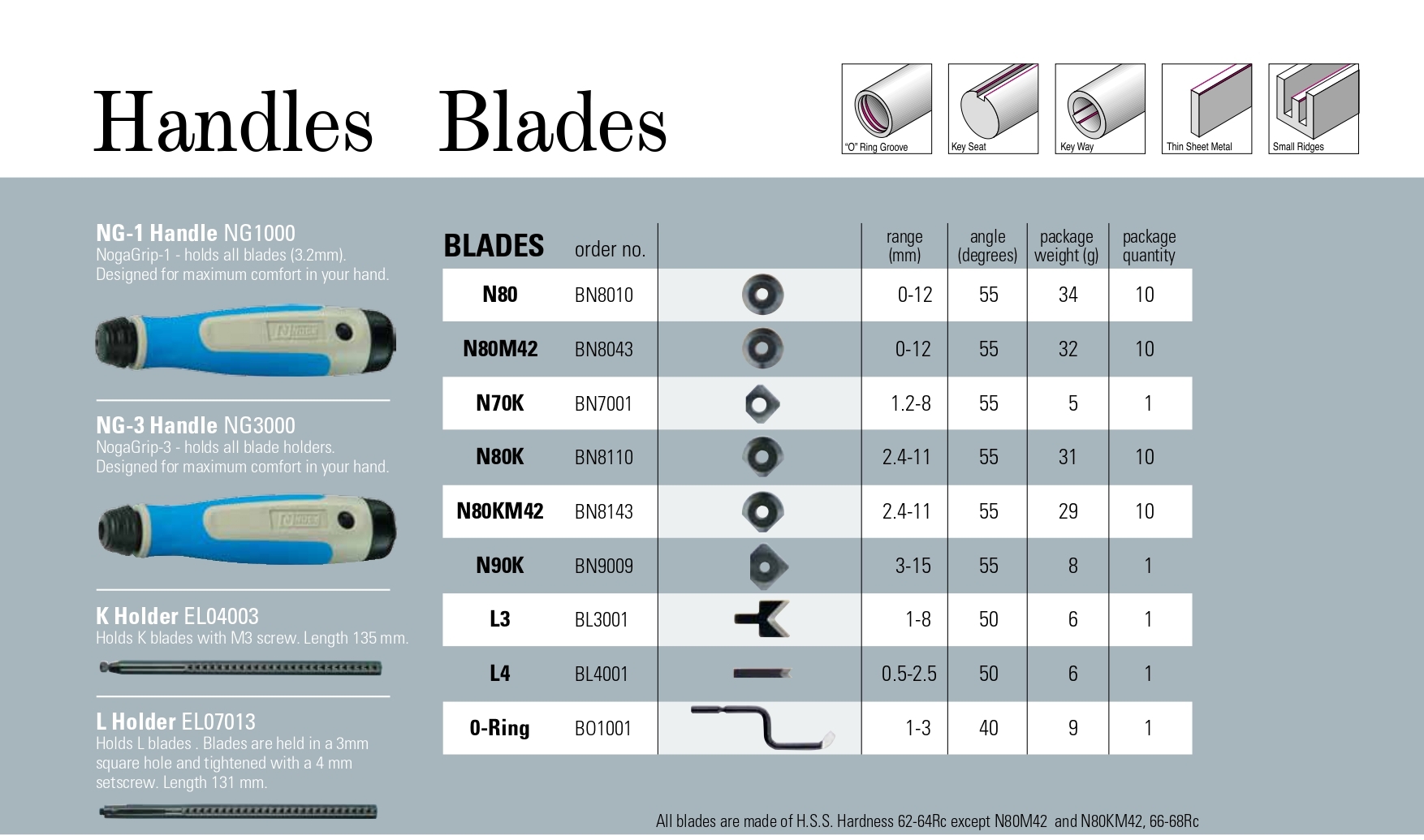

BLADES ORDER NO RANGE (mm) ANGLE (degree) PACKAGE WEIGHT (g) PACKAGE QUANTITY
N80 BN8010 0 – 12 55 34 10
N80M42 BN8043 0 – 12 55 32 10
N70K BN7001 1.2 – 8 55 5 1
N80K BN8110 2.4 – 11 55 31 10
N80KM42 BN8143 2.4 – 11 55 29 10
N90K BN9009 3 – 15 55 8 1
L3 BL3001 1 – 8 50 6 1
L4 BL4001 0.5 – 2.5 50 6 1
O-RING BO1001 1 – 3 40 9 1

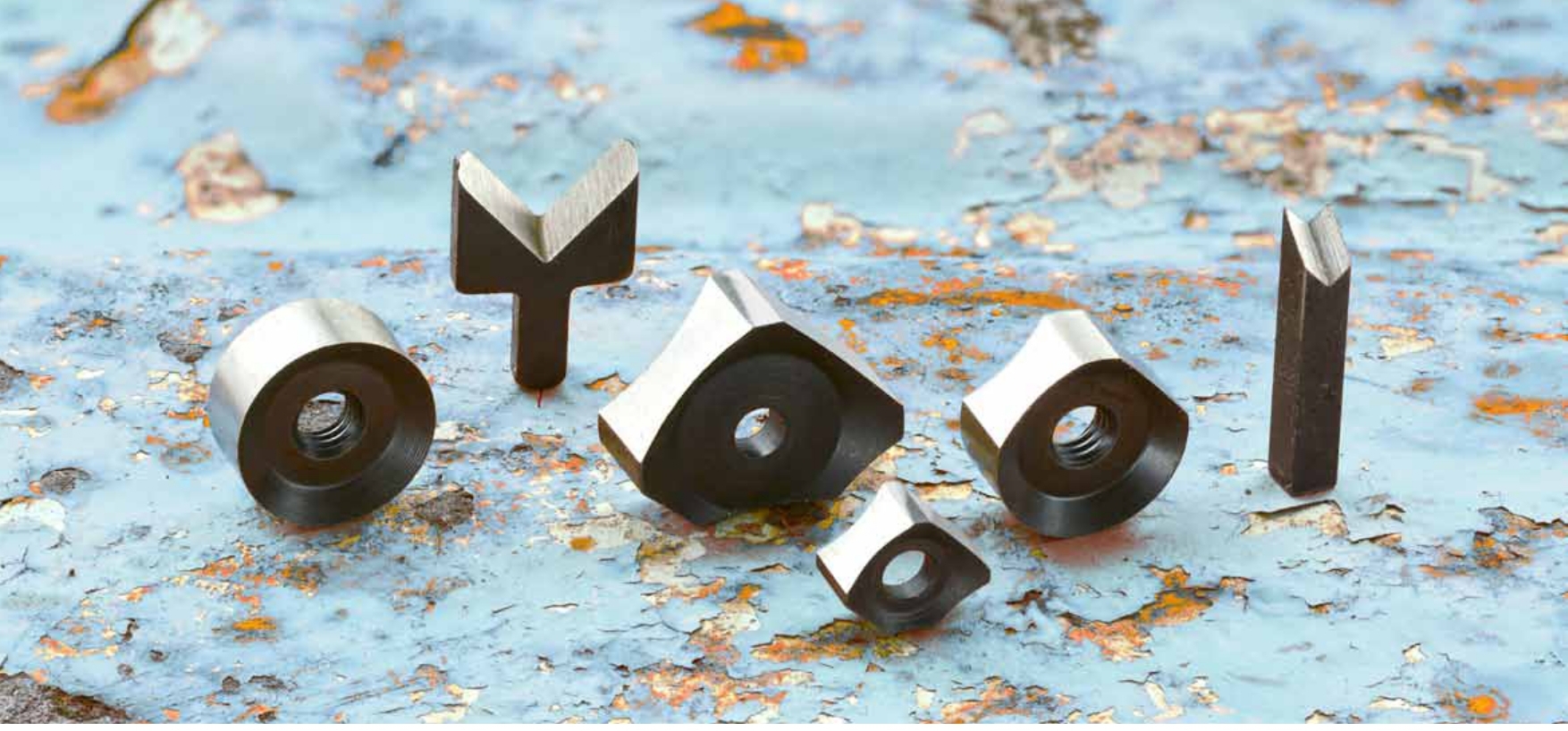

BLADES

N80 – BN8010

N80 Blade.

  • Blade Material: H.S.S
  • Hardness: 62-64 Rc
  • Angle: 55 Deg
  • Range: 0 – 12 mm
  • Weight: 35 gr
  • Pack quantity: 10 pcs

N80M42 – BN8043

N80M42 Blade.

  • Blade Material: H.S.S
  • Hardness: 66-68 Rc
  • Angle: 55 Deg
  • Range: 0 – 12 mm
  • Weight: 33 gr
  • Pack quantity: 10 pcs

N70K – BN7001

N70K Blade.

  • Blade Material: H.S.S
  • Hardness: 62-64 Rc
  • Angle: 55 Deg
  • Range: 1.2 – 8 mm
  • Weight: 5 gr
  • Pack quantity: 1 pcs

N80K – BN8110

N80K Blade.

  • Blade Material: H.S.S
  • Hardness: 62-64 Rc
  • Angle: 55 Deg
  • Range: 2.4 – 11 mm
  • Weight: 30 gr
  • Pack quantity: 10 pcs

N80KM42 – BN8143

N80KM42 Blade.

  • Blade Material: H.S.S
  • Hardness: 66 – 68 Rc
  • Angle: 55 Deg
  • Range: 2.4 – 11 mm
  • Weight: 29 gr
  • Pack quantity: 10 pcs

N90K – BN9009

N90K Blade.

  • Blade Material: H.S.S
  • Hardness: 62-64 Rc
  • Angle: 55 Deg
  • Range: 3 – 15 mm
  • Weight: 9 gr
  • Pack quantity: 1 pcs

L3 – BL3001

L3 Blade.

  • Blade Material: H.S.S
  • Hardness: 62-64 Rc
  • Angle: 50 Deg
  • Range: 1 – 8 mm
  • Weight: 6 gr
  • Pack quantity: 1 pcs

L4 – BL4001

L4 Blade.

  • Blade Material: H.S.S
  • Hardness: 62-64 Rc
  • Angle: 50 Deg
  • Range: 0 – 2.5 mm
  • Weight: 6 gr
  • Pack quantity: 1 pcs

O-Ring – BO1001

O-Ring Blade.

  • Blade Material: H.S.S
  • Hardness: 62-64 Rc
  • Angle: 40 Deg
  • Range: 1 – 3 mm
  • Weight: 9 gr
  • Pack quantity: 1 pcs

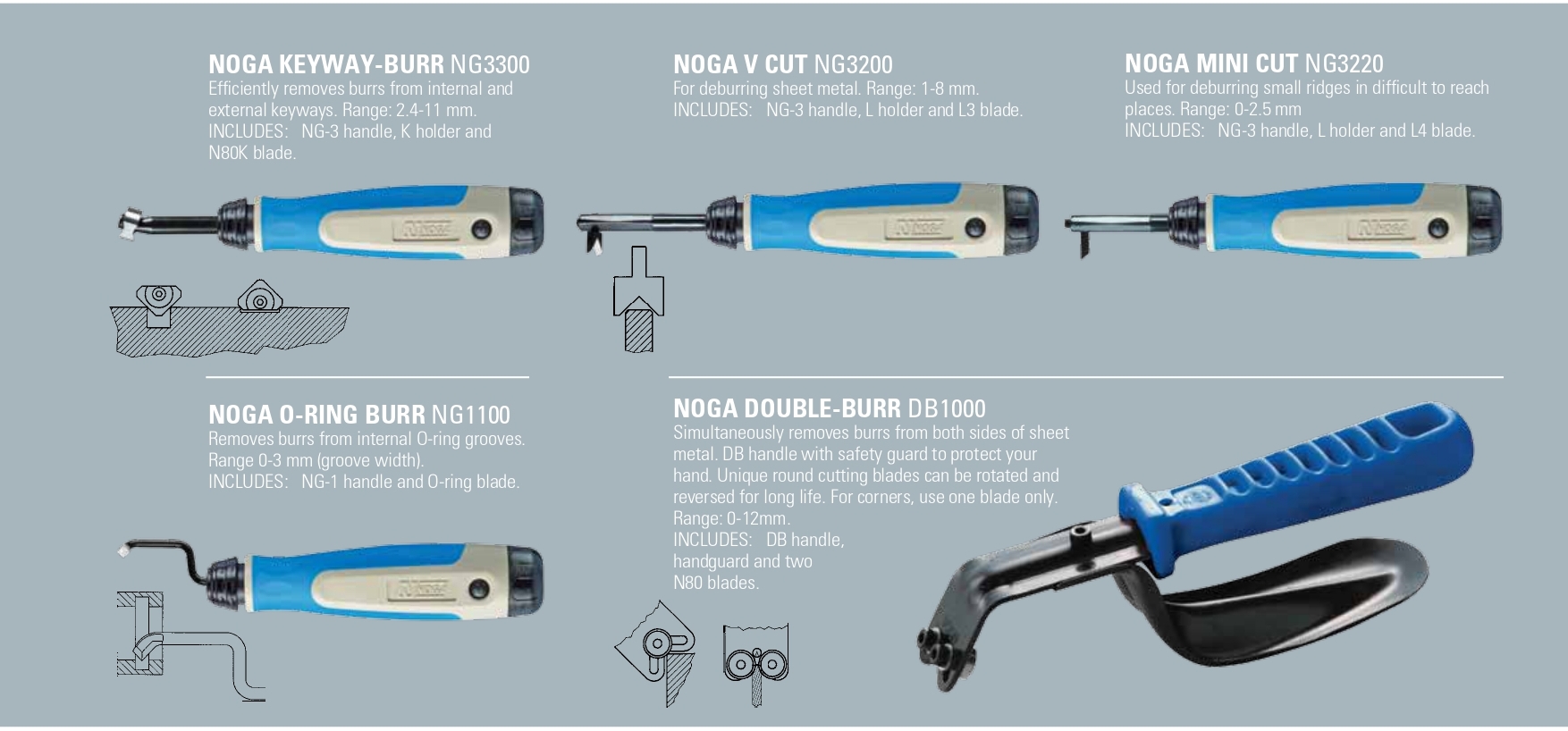

TOOLS

KEYWAY-BURR – NG3300

  • Effectively removes burrs from internal and external keyways.
  • Range: 2.4 – 11 mm

NOGA V CUT – NG3200

  • For deburring sheet metal 1 – 8 mm.

NOGA O-RING BURR – NG1100

  • Removes burrs from internal O-ring grooves. Range 0-3(groove width).

DOUBLE BURR – DB1000

  • Simultaneously removes burrs from both sides of sheet metal.
  • DB Handle with a safety guard to protect your hand.
  • Unique round cutting blades can be rotated and reversed for long life.
  • For corners, use one blade only.
  • Range: 0 – 12 mm

NOGA MINI CUT – NG3220

  • Used for deburring small ridges in difficult-to-reach places.
  • Range: 0 – 2.5 mm

HANDLES

NG-1 Handle – NG1000

  • NG-1 Handle

NG-3 Handle – NG3000

  • NogaGrip-3 holds all blades holders.
  • Spare blades are kept inside back cap.
  • Designed for maximum comfort in your hand.

HOLDERS

K Holder – EL04003

  • Holds all K blades with M3 screw.
  • Length: 135 mm

L Holder – EL07013

  • Holds L blades. Blades are held in a 3mm square hole and tightened with 4mm setscrew.
  • Length: 131 mm
