NTS-6 Motorized Rotational Friction Torque Tester

Motorized Rotational Friction Torque Tester

Series: NTS-6

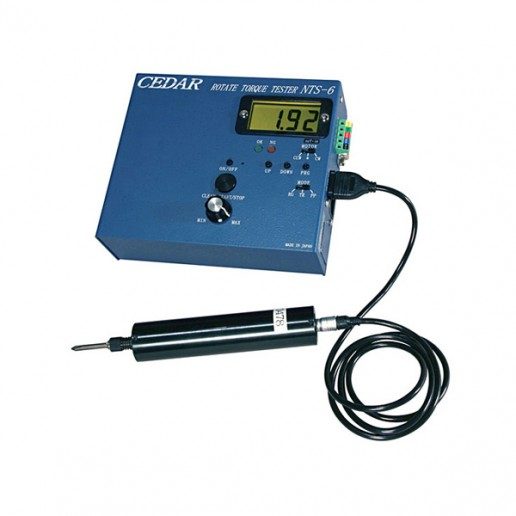

rotational friction torque-nts-6-516x516

Ranges

NTS-6 Ranges

Accuracy: ±1% F.S., ±1LSD

Note: oz models do not have selectable units

Model			Capacity			Max Speed (no-load)	Bit Size
	ozf-in	lbf-in	Kgf-cm	mN-m	N-m	rpm
NTS-6-S1oz	0.30 ~14.00	—	—	—	—	85	4mm
NTS-6-S2oz	0.30 ~ 28.00	—	—	—	—	25	4mm
NTS-6-S5oz	3.0 ~ 70.0	—	—	—	—	13	4mm
NTS-6-S1	—	0.030 ~ 0.900	0.030 ~ 1.000	3.0 ~ 100.0	—	85	4mm
NTS-6-S2	—	0.030 ~ 1.740	0.030 ~ 2.000	3.0 ~200.0	—	25	4mm
NTS-6-S5	—	0.30 ~ 4.50	0.30 ~ 5.00	—	0.030 ~ 0.500	13	4mm
NTS-6-S10	—	0.30 ~ 9.00	0.30 ~ 10.00	—	0.030 ~ 1.000	18	6.35mm HEX
NTS-6-S20	—	0.30 ~ 17.40	0.30 ~ 20.00	—	0.030 ~ 2.000	18	6.35mm HEX
NTS-6-S50	—	0.30 ~ 45.00	0.30 ~ 50.00	—	0.030 ~ 5.000	5	12mm

Standard Features

NTS-6 Standard Features

Selectable units lbf-in, Kgf-cm, mN-m or N-m (except oz models)
Peak, Real Time and Continuous Output modes (selectable)
RS-232C output n Both CW and CCW operation
Programmable high/low setpoints for Go/No Go testing

Specifications

NTS-6 Specifications

Model	S1/1oz	S2/2oz	S5/5oz	S10	S20	S50
Max. Speed (no-load)	85rpm	25rpm	13rpm	18rpm	18rpm	5rpm
Dimensions (detector)	28mm dia. × 155mm		37mm dia. × 195mm	40mm dia. x 235mm		55mm dia. x 285mm
Bit size	4mm dia.		4mm dia.	6.35mm HEX		12mm dia.
Display	4 digit LCD display
Operation	Both CW and CCW motorized rotation
Measuring modes	PP: Peak Mode displays PEAK torque value that will not change until a higher value is measured. GO: Real Time Mode displays TRANSIENT torque values. RG: Output Torque Data every 1/100 seconds.
Measurement start time	Can be set up to 1 second in 0.1 second increments.
Measuring time	Time can be programmed between 1 and 20 seconds.
Go/No go testing	Programmable High and Low values; Green lamp (OK solid, NG blinking).
External input/output	Signal output (open collector): Go and No Go Data output: RS-232C (9600 baud) External start switch input
Power supply	AC100V~240V
Dimensions (indicator)	165mm W × 110mm D × 58mm H
