digital three points internal micrometer

INSIZE DIGITAL TWO POINTS / THREE POINTS INTERNAL MICROMETER (CODE – 3127)

Resolution 0.001mm/0.00005" (resolution of 3127-275 and 3127-300 is 0.001mm/0.0001") IP65 dust/waterproo Buttons: on/off, set, mm/inch, data transmit Data output Automatic power off Ratchet stop Optional accessory: data output cable (code 7315-31 need receiver page 4, 7302-31), setting ring (code 6312), micrometer stand and clamp (code 6301 and 6301-2)

Download Catalog

Individual

Code	Range	Type	Accuracy	Setting ring	Extension rod (included)	L (mm)	a (mm)	b (mm)	c (mm)

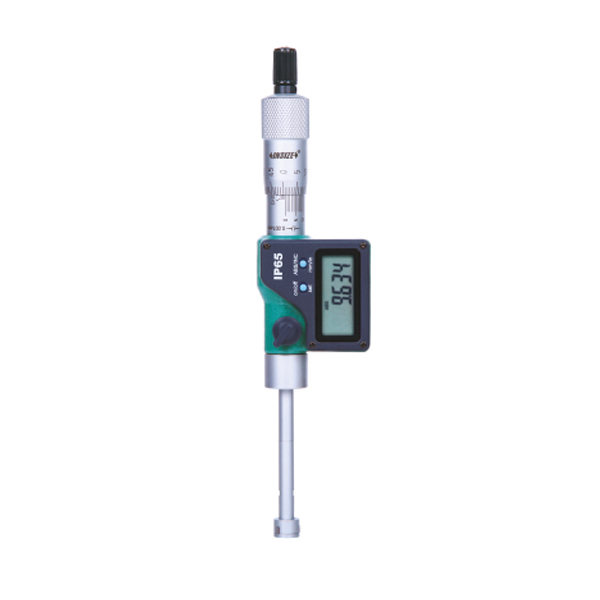

3127-2*	2-2.5mm	A (two points)	6μm	Ø2.5 (included)	–	12	–	–	–
3127-3*	2.5-3mm	A (two points)	6μm	Ø2.5 (included)	–	12	–	–	–
3127-4*	3-4mm	A (two points)	6μm	Ø4 (included)	–	22	–	–	–
3127-5*	4-5mm	A (two points)	6μm	Ø5 (included)	–	22	–	–	–
3127-6*	5-6mm	A (two points)	6μm	Ø6 (included)	–	22	–	–	–
3127-8*	6-8mm	B (three points)	4μm	Ø6 (included)	100	54.5	1.5	2.5	–
3127-10*	8-10mm	B (three points)	4μm	Ø8 (included)	100	54.5	1.5	2.5	–
3127-12*	10-12mm	B (three points)	4μm	Ø10 (included)	100	54.5	1.5	2.5	–

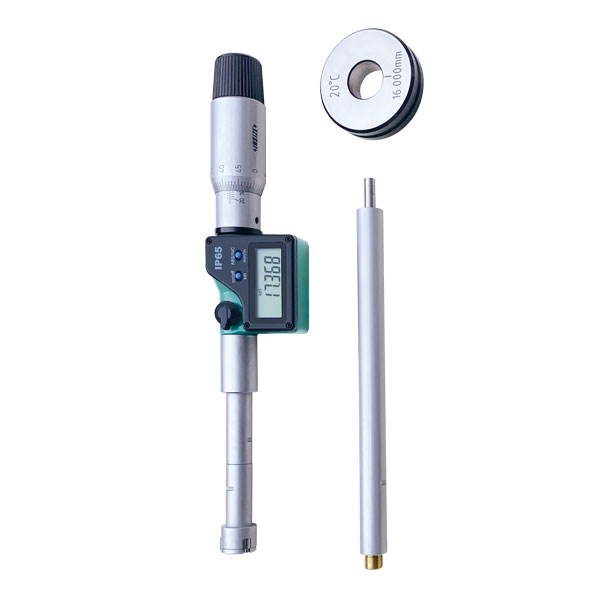

3127-16*	12-16mm	C (three points)	4μm	Ø16 (included)	150	80	0.5	6	4.5
3127-20*	16-20mm	C (three points)	4μm	Ø16 (included)	150	80	0.5	6	4.5

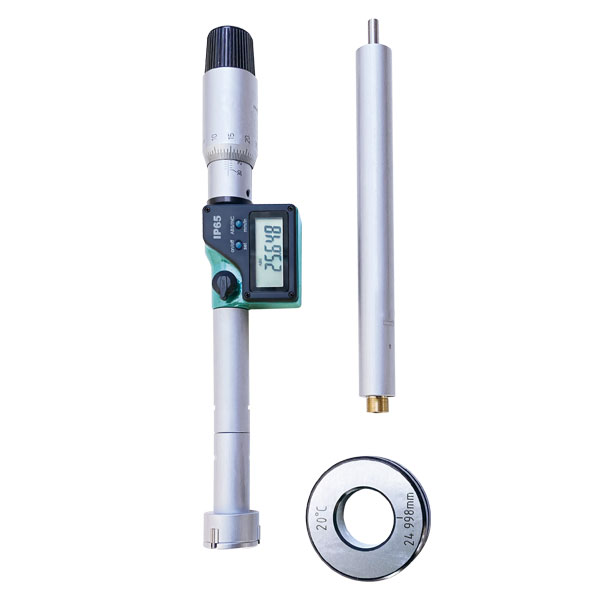

3127-25*	20-25mm	C (three points)	4μm	Ø25 (included)	150	90	0.5	8	6
3127-30*	25-30mm	C (three points)	4μm	Ø25 (included)	150	90	0.5	8	6
3127-0*	30-40mm	C (three points)	4μm	Ø40 (included)	150	97	0.5	14	12
3127-50*	40-50mm	C (three points)	5μm	Ø40 (included)	150	97	0.5	14	12
3127-63*	50-63mm	D (three points)	5μm	Ø62 (included)	150	114	0.5	17.5	14.5
3127-75*	62-75mm	D (three points)	5μm	Ø62 (included)	150	114	0.5	17.5	14.5
3127-88*	7688mm	D (three points)	5μm	Ø87 (included)	150	114	0.5	17.5	14.5
3127-100*	87-100mm	D (three points)	5μm	Ø87 (included)	150	114	0.5	17.5	14.5
3127-125*	100-125mm	D (three points)	6μm	optional	150	140	0.9	29	25
3127-150*	125-150mm	D (three points)	6μm	optional	150	140	0.9	29	25
3127-175*	150-175mm	D (three points)	7μm	optional	150	140	0.9	29	25
3127-200*	175-200mm	D (three points)	7μm	optional	150	140	0.9	29	25
3127-225	200225mm	D (three points)	8μm	opfional	150	140	0.9	29	25
3127-250	225-250mm	D (three points)	8μm	optional	150	140	0.9	29	25
3127-275	250-275mm	D (three points)	9μm	optional	150	140	0.9	29	25
3127-300	275-300mm	D (three points)	9μm	optional	150	140	0.9	29	25

Set

Code	Range	Micrometers included	Setting ring (included)	Extension rod (included)
3127-232*	2-3mm	2-2.5mm, 2.5-3mm	Ø2.5mm	—
3127-363*	3-6mm	3-4mm, 4-5mm, 5-6mm	Ø4mm, Ø5mm, Ø6mm	—

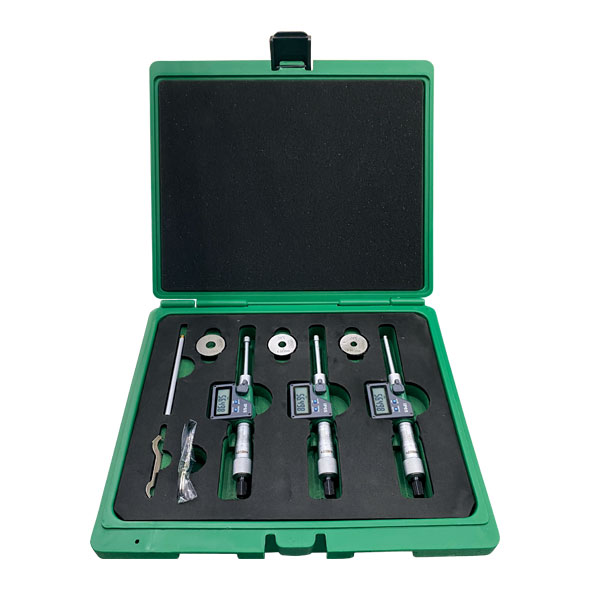

3127-123*	6-12mm	6-8mm, 8-10mm, 10-12mm	Ø6mm, Ø8mm, Ø10mm	100mm
3127-202*	12-20mm	12-16mm, 16-20mm	Ø16mm	150mm
3127-504*	20-50mm	20-25mm, 25-30mm, 30-40mm, 40-50m	Ø25mm, Ø40mm	150mm

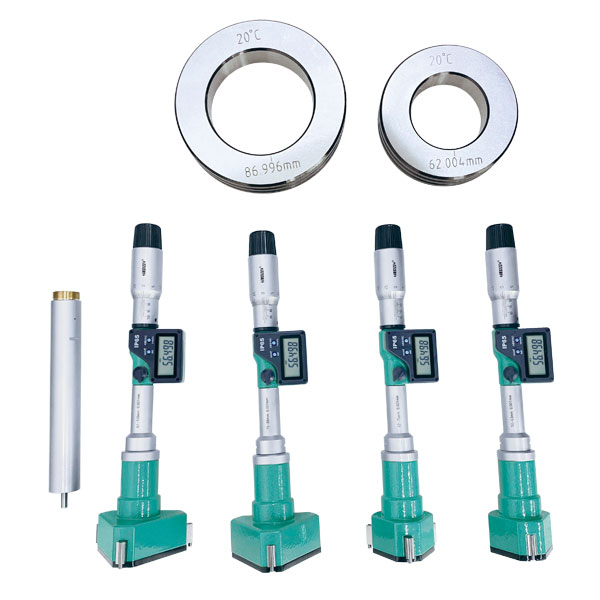

3127-1004*	50-100mm	50-63mm, 62-75mm, 75-88mm, 87-100mm	Ø62mm, Ø87mm	150mm

three points internal micrometer

Resolution 0.001mm/0.00005″ (resolution of 3127-275 and 3127-300 is 0.001mm/0.0001″)
IP65 dust/waterproo
Buttons: on/off, set, mm/inch, data transmit
Data output
Automatic power off
Ratchet stop
Optional accessory: data output cable (code 7315-31 need receiver page 4, 7302-31), setting ring (code 6312), micrometer stand and clamp (code 6301 and 6301-2)
