Imada cap torque testers measure cap tightening or loosening. The DTXS series cap torque tester can be used for rapid cap testing. The MTG allows for more accurate and repeatable results by maintaining a constant capping speed. Both testers have several ranges up to 85 lbf-in.
DTXS Cap Torque Tester
Series DTXS
RANGES
DTXS Cap Torque Tester Ranges (Resolution)
Accuracy: ±0.5% F.S. ±1 LSD
Model
Capacity (Resolution)
lbf-in
kgf-cm
N-cm
DTXS-15
15.00 (0.01 lbf-in)
20.00 (0.01 kgf-cm)
200.0 (0.1 N-cm)
DTXS-40
40.00 (0.01 lbf-in)
50.00 (0.01 kgf-cm)
500.0 (0.1 N-cm)
DTXS-85
85.0 (0.1 lbf-in)
100.0 (0.1 kgf-cm)
1000 (1 N-cm)
STANDARD FEATURES
DTXS Standard Features
Test cap loosening (CCW) and tightening (CW) torque
Heavy duty metal construction
Selectable real time and peak modes
USB (virtual COM port), RS-232, Digimatic and Analog outputs
Selectable lbf-in, kgf-cm and N-cm
1,000 data memory
Programmable high/low setpoints with color-coded LED indicators and output signal
Overload and low battery indicators
200% overload capacity
Clamps diameters from 20~160mm
Optional small tables clamp diameters from 7mm~50mm
Four standard 1 inch pegs

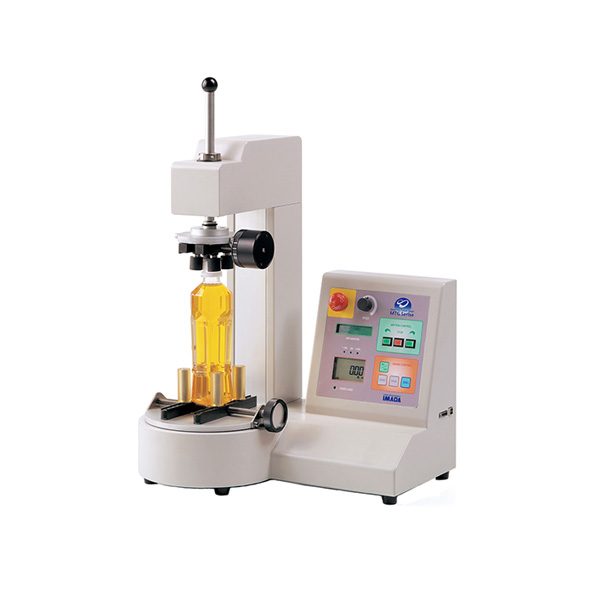

MTG Motorized Cap Torque Tester
Series MTG Motorized Torque Tester
Ranges
MTG Cap Torque Testers Ranges (Resolution)
Accuracy: ±0.5% F.S. ±1 LSD
Model
Capacity (Resolution)
lbf-in
kgf-cm
N-cm
MTG-15
15.00 (0.01 lbf-in)
20.00 (0.01 kgf-cm)
200.0 (0.1 N-cm)
MTG-40
40.00 (0.01 lbf-in)
50.00 (0.01 kgf-cm)
500.0 (0.1 N-cm)
MTG-85
85.0 (0.1 lbf-in)
100.0 (0.1 kgf-cm)
1000 (1 N-cm)
Standard Features
MTG Standard Features
Programmable high/low setpoints with color-coded LED indicators and output signal for quick go/no go testing
1,000 Data memory for computer download
lbf-in, kgf-cm, and N-cm units are selectable
USB, RS-232C, Digimatic and Analog outputs
Both CW and CCW operation
Overload capacity 150% of F.S. with alarm at 110% F.S.
Real time and peak mode (selectable)
Sample container diameters from .8″~7″; cap diameters .8″~3.5″; container height 3.2″~9.4″
Rotating speed 3~90° per second
Sampling speed 1,000 per second
Heavy duty all-metal construction for exceptional durability
