Baker XT3 Three Point Pistol Grip Digital Bore Gauge

BAKER XT3 THREE POINT PISTOL GRIP DIGITAL BORE GAUGE

Features

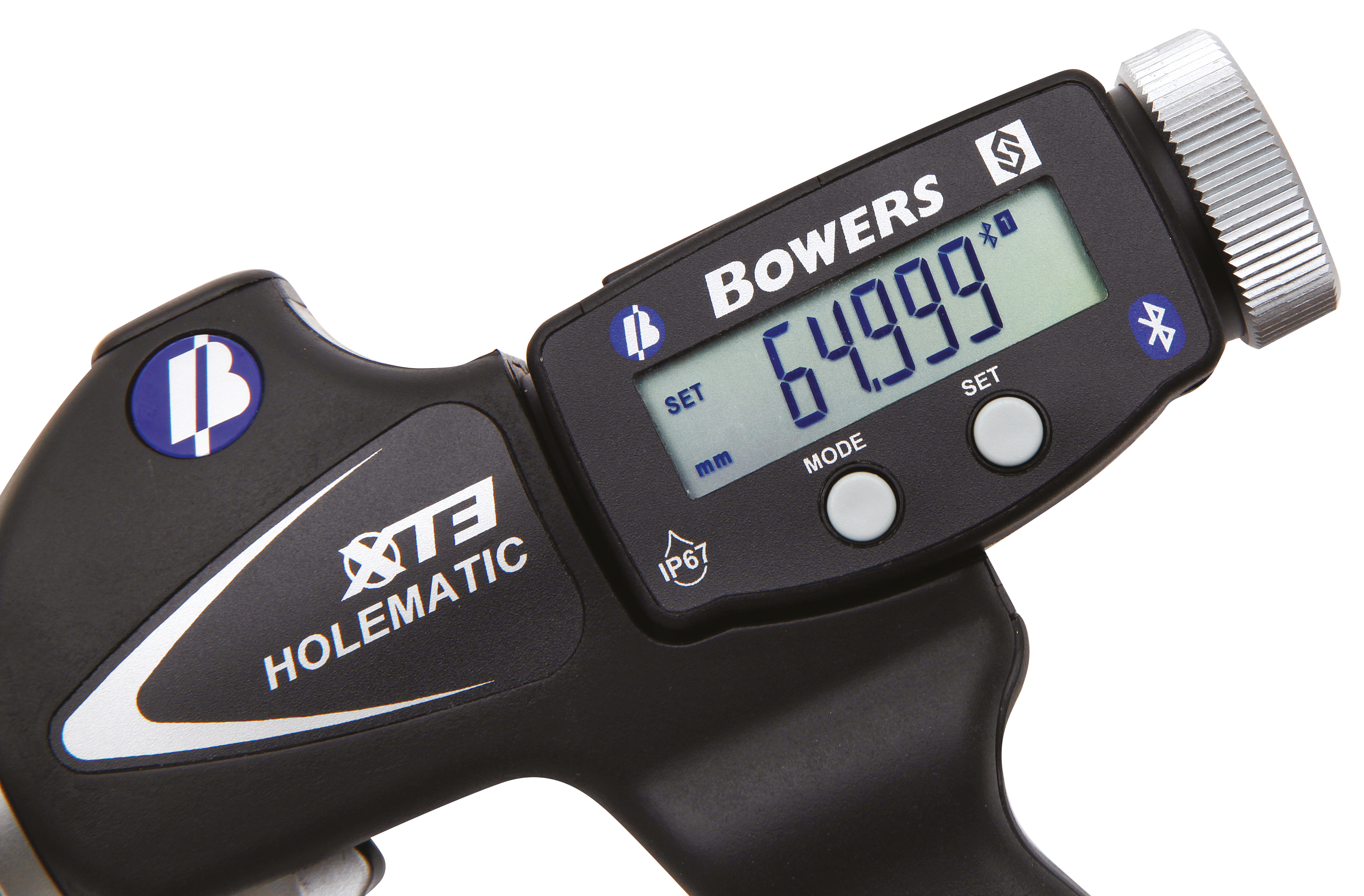

Ergonomic design with larger and clearer LCD swivel display
IP67 Electronics
Simple 2-button operation
4 preset memories
Proximity output with built-in Bluetooth
Bi-directional communication
Self-centring heads
Fast, accurate measurement
Range 2–300mm (0.080” – 12”)
2-6mm 2 point/ 6-300mm 3 point measurement
Resolution 0.001mm/0.00005”
Tungsten carbide measuring faces on all 3-point heads from 12.5mm
Blind bore measurement from 2mm – 6mm and above 12.5mm (0.500”)
Extensions available above 6mm for deep hole measurement
Setting rings included with individual instruments and sets
UKAS certificates supplied as standard with all setting rings and gauges
Serial number on all digital readouts and measuring heads
Heads with special anvils available to suit specific customer requirements (e.g. Threads, grooves, 2-point, spherical, splines etc)
Bore gauges manufactured according to DIN 863, part 4

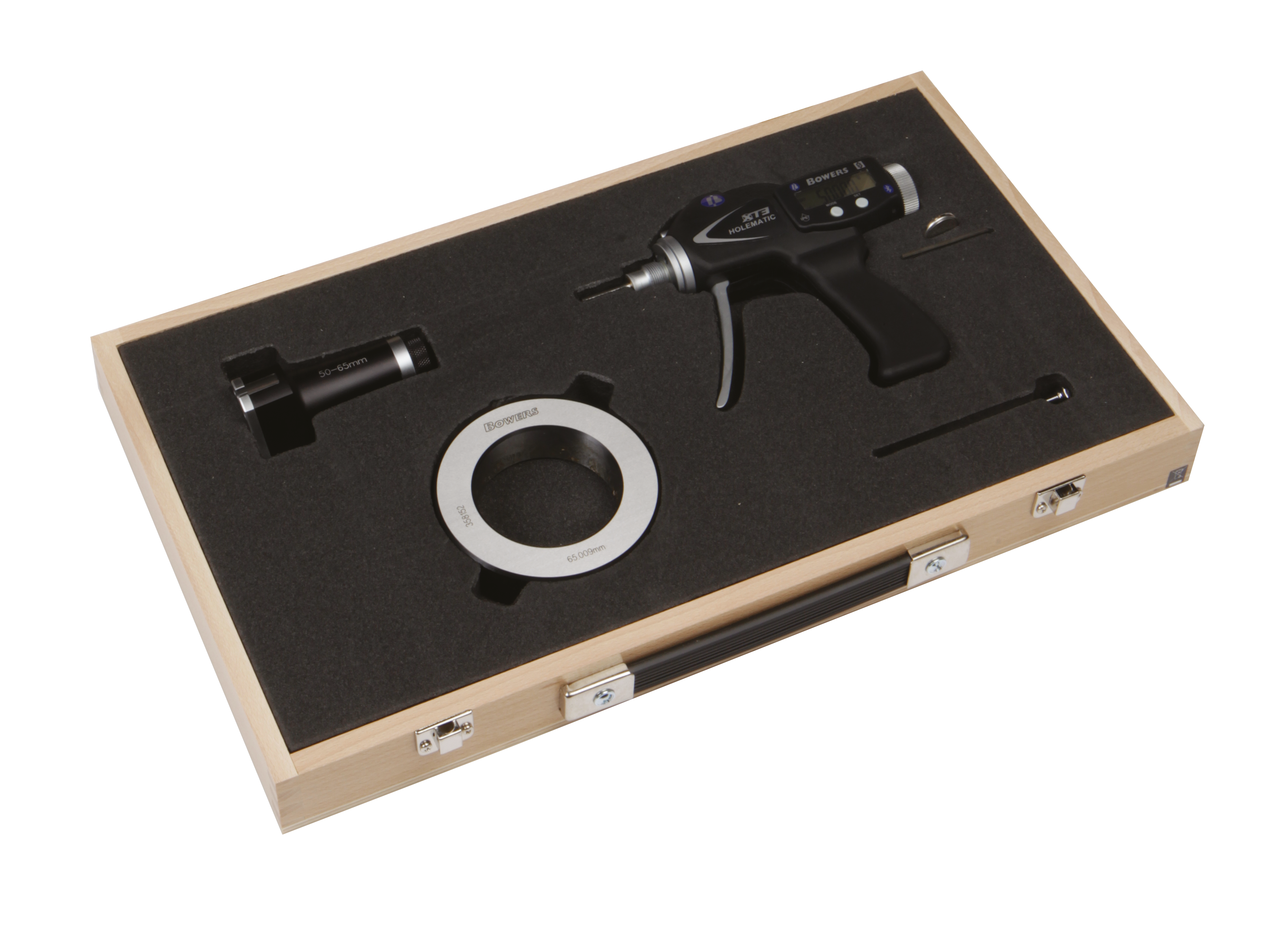

Supplied in fitted wooden case

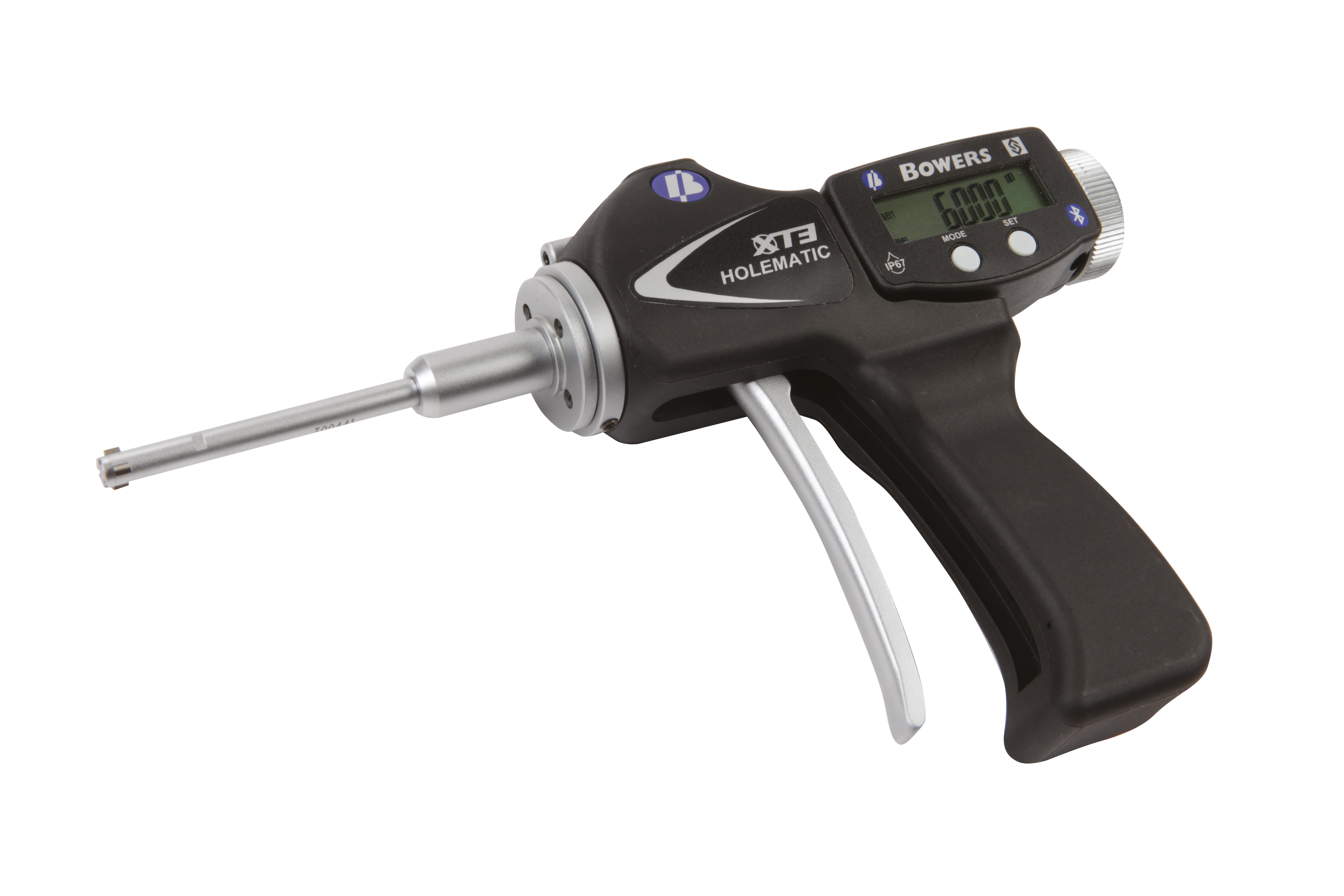

Three Point Pistol Grip

Technical Specification

Individual instruments supplied with digital pistol grip, head, ring and UKAS

Code No.	Code No. (with BT)	Range (mm)	Accuracy (mm)	Depth (mm)	Setting Ring (mm)
XTH1M-XT3	XTH1M-BT	2-2.5	0.004	9	2.50
XTH2M-XT3	XTH2M-BT	2.5-3	0.004	9	2.50
XTH3M-XT3	XTH3M-BT	3-4	0.004	12	4.00
XTH4M-XT3	XTH4M-BT	4-5	0.004	18	4.00
XTH5M-XT3	XTH5M-BT	5-6	0.004	18	5.00
XTH6M-XT3	XTH6M-BT	6-8	0.004	58	8.00
XTH8M-XT3	XTH8M-BT	8-10	0.004	58	8.00
XTH10M-XT3	XTH10M-BT	10-12.5	0.004	58	12.50
XTH12M-XT3	XTH12M-BT	12.5-16	0.004	62	12.50
XTH16M-XT3	XTH16M-BT	16-20	0.004	62	20.00
XTH20M-XT3	XTH20M-BT	20-25	0.004	66	20.00
XTH25M-XT3	XTH25M-BT	25-35	0.004	66	35.00
XTH35M-XT3	XTH35M-BT	35-50	0.004	80	35.00
XTH50M-XT3	XTH50M-BT	50-65	0.005	80	65.00
XTH65M-XT3	XTH65M-BT	65-80	0.005	80	65.00
XTH80M-XT3	XTH80M-BT	80-100	0.005	100	80.00
XTH100M-XT3	XTH100M-BT	100-125	0.006	115	125.00
XTH125M-XT3	XTH125M-BT	125-150	0.006	115	125.00
XTH150M-XT3	XTH150M-BT	150-175	0.007	115	175.00
XTH175M-XT3	XTH175M-BT	175-200	0.007	115	175.00
XTH200M-XT3	XTH200M-BT	200-225	0.008	118	225.00
XTH225M-XT3	XTH225M-BT	225-250	0.008	118	225.00
XTH250M-XT3	XTH250M-BT	250-275	0.009	118	275.00
XTH275M-XT3	XTH275M-BT	275-300	0.009	118	275.00

Code No.	Code No.(with BT)	Range (inch)	Accuracy (inch)	Depth (inch)	Setting Ring (inch)
XTH1i-XT3	XTH1i-BT	0.080-0.100	0.00015	0.35	0.1000
XTH2i-XT3	XTH2i-BT	0.100-0.120	0.00015	0.35	0.1000
XTH3i-XT3	XTH3i-BT	0.120-0.160	0.00015	0.47	0.1600
XTH4i-XT3	XTH4i-BT	0.160-0.200	0.00015	0.70	0.1600
XTH5i-XT3	XTH5i-BT	0.200-0.250	0.00015	0.70	0.2000
XTH6i-XT3	XTH6i-BT	1/4-5/16	0.00015	2.28	0.3125
XTH8i-XT3	XTH8i-BT	5/16-3/8	0.00015	2.28	0.3125
XTH10i-XT3	XTH10i-BT	3/8-1/2	0.00015	2.28	0.500
XTH12i-XT3	XTH12i-BT	1/2-5/8	0.00015	2.44	0.500
XTH16i-XT3	XTH16i-BT	5/8-3/4	0.00015	2.44	0.750
XTH20i-XT3	XTH20i-BT	3/4-1	0.00015	2.62	0.750
XTH25i-XT3	XTH25i-BT	1-1 3/8	0.00015	2.62	1.375
XTH35i-XT3	XTH35i-BT	1 3/8-2	0.00015	3.15	1.375
XTH50i-XT3	XTH50i-BT	2-2 5/8	0.00020	3.15	2.625
XTH65i-XT3	XTH65i-BT	2 5/8-3 1/4	0.00020	3.15	2.625
XTH80i-XT3	XTH80i-BT	3 1/4-4	0.00020	3.35	3.250
XTH100i-XT3	XTH100i-BT	4-5	0.00025	3.94	5.000
XTH125i-XT3	XTH125i-BT	5-6	0.00025	3.94	5.000
XTH150i-XT3	XTH150i-BT	6-7	0.00030	3.94	7.000
XTH175i-XT3	XTH175i-BT	7-8	0.00030	3.94	7.000
XTH200i-XT3	XTH200i-BT	8-9	0.00030	3.94	9.000
XTH225i-XT3	XTH225i-BT	9-10	0.00030	4.05	9.000
XTH250i-XT3	XTH250i-BT	10-11	0.00035	4.05	11.000
XTH275i-XT3	XTH275i-BT	11-12	0.00035	4.05	11.000

Sets

Supplied with digital pistol grip, head, rings and UKAS

Three Point Pistol Grip

Code No.	Code No.(with BT)	Range (mm)
SXTH1M-XT3	SXTH1M-BT	2-6
SXTH3M-XT3	SXTH3M-BT	6-10
SXTH4M-XT3	SXTH4M-BT	10-20
SXTH5M-XT3	SXTH5M-BT	20-50
SXTH6M-XT3	SXTH6M-BT	50-100
SXTH7M-XT3	SXTH7M-BT	100-150
SXTH8M-XT3	SXTH8M-BT	150-200

Code No.	Code No.(with BT)	Range (inch)
SXTH1i-XT3	SXTH1i-BT	0.080-0.250
SXTH3i-XT3	SXTH3i-BT	1/4-3/8
SXTH4i-XT3	SXTH4i-BT	3/8-3/4
SXTH5i-XT3	SXTH5i-BT	3/4-2
SXTH6i-XT3	SXTH6i-BT	2-4
SXTH7i-XT3	SXTH7i-BT	4-6
SXTH8i-XT3	SXTH8i-BT	6-8

Large Sets

Supplied with digital pistol grip, head, rings and UKAS

Code No.	Code No.(with BT)	Range (mm)
SXTH10M-XT3	SXTH10M-BT	6-20
SXTH11M-XT3	SXTH11M-BT	20-100
SXTH9M-XT3	SXTH9M-BT	100-200

Code No.	Code No.(with BT)	Range (inch)
SXTH10i-XT3	SXTH10i-BT	1/4-3/4
SXTH11i-XT3	SXTH11i-BT	3/4-4
SXTH9i-XT3	SXTH9i-BT	4-8

Extensions

Code No.	Length (mm)	Length (inch)	To Fit Heads (mm)	To Fit Heads (inch)
EGX0200	63	2.5	6-10	1/4-3/8
EGX0004	150	6.0	50-300	2-12
EGX0500	100	4.0	12.5-20	1/2-3/4
EGX0001	150	6.0	20-50	3/4-2
EGX0400	76	3.0	10-12.5	3/8-1/2

Depth Stop

Code No	Range (mm)	Range (inch)
DSTOP01	2-6	0.080-0.25

Bowers’ XT3 Three Point Pistol Grip Digital Bore Gauge Holematic offers a new ergonomic design – including a larger and clearer LCD display – along with IP67 electronics protection, proximity output with built-in Bluetooth; allowing bi-directional communication giving greater flexibility for data acquisition and storage. The extended mechanical travel of the XT range means that special heads can also be manufactured to accommodate users most awkward measuring problems. Measuring heads for threads, splines slots, grooves, deep-holes and many more applications are available on request.

The Bowers XT3 range can be supplied as individual instruments or in complete sets, with UKAS certification of both measuring head and setting ring as standard.
