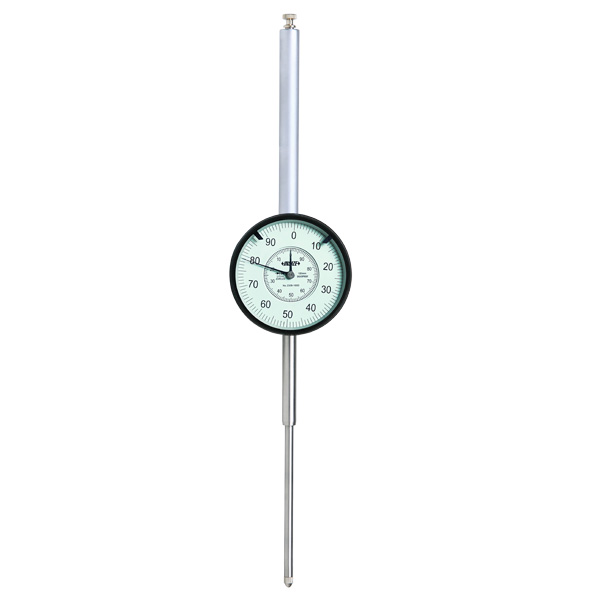

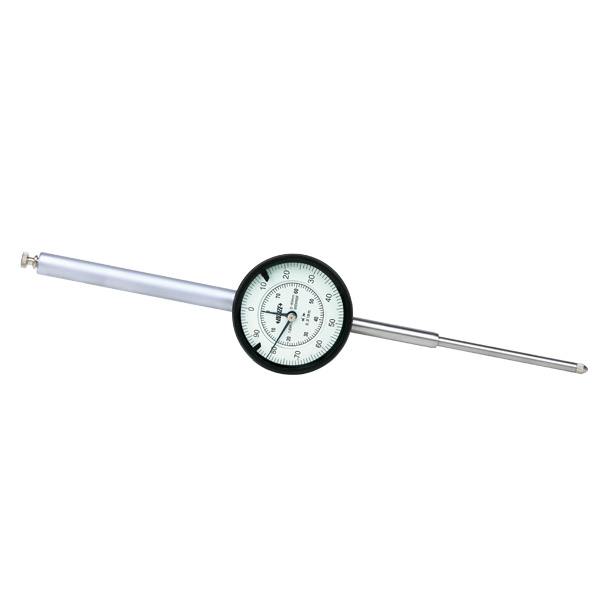

DIAL INDICATOR CODE – 2309

Shockproof Jeweled bearing Dial indicator supplied with limit pointers Optional accessory: backs (page 132), contact points (page 128~131) Code Range Graduation Type Accuracy Hysteresis Range/rev Dial reading Remark 2309-30* 30mm 0.01mm A 35µm 7µm 1mm 0-100 lug back 2309-30F* 30mm 0.01mm A 35µm 7µm 1mm 0-100 flat back 2309-50* 50mm 0.01mm A 40µm 8µm 1mm

Download PDF

Shockproof
Jeweled bearing
Dial indicator supplied with limit pointers
Optional accessory: backs (page 132), contact points (page 128~131)

Code	Range	Graduation	Type	Accuracy	Hysteresis	Range/rev	Dial reading	Remark
2309-30*	30mm	0.01mm	A	35µm	7µm	1mm	0-100	lug back
2309-30F*	30mm	0.01mm	A	35µm	7µm	1mm	0-100	flat back
2309-50*	50mm	0.01mm	A	40µm	8µm	1mm	0-100	flat back with spare lug back
2309-50D*	50mm	0.01mm	B	40µm	8µm	1mm	0-100	flat back with spare lug back
2309-80	80mm	0.01mm	A	50µm	9µm	1mm	0-100	flat back with spare lug back
2309-80D	80mm	0.01mm	B	50µm	9µm	1mm	0-100	flat back with spare lug back
2309-30	100mm	0.01mm	B	50µm	9µm	1mm	0-100	flat back with spare lug back
