Baker Mechanical External Micrometer

BAKER MECHANICAL EXTERNAL MICROMETER (WITH INTERCHANGE

Micrometer with interchangeable Anvils NOTE: *External Micrometer above Range 300mm & 12inch, Supplied without Handle shell (Insulating Grip) Setting Standards – up to 300mm & 12inch – Both Ends Flat Face. Above 300mm & 12inch – Both Ends Spherical FEATURES Interchangeable anvils Spindle made from stainless steel for rust prevention (08.0 mm, pitch O.Smm and

Buy Now

Download Catalog

MEASURING RANGE mm	READING mm	TYPE	MEASURING RANGE inch	READING inch	TYPE
0 -100	0.01	MMI0-100	0-4	0.001	INI0-4
0 -100	0.001	MMI0-100-1	0-4	0.0001	INI0-4-1
0 -150	0.01	MMI0-150	0-6	0.001	INI0-6
0 -150	0.001	MMI0-150-1	0-6	0.0001	INI0-6-1
150-300	0.01	MMI150-300	6-12	0.001	INI6-12

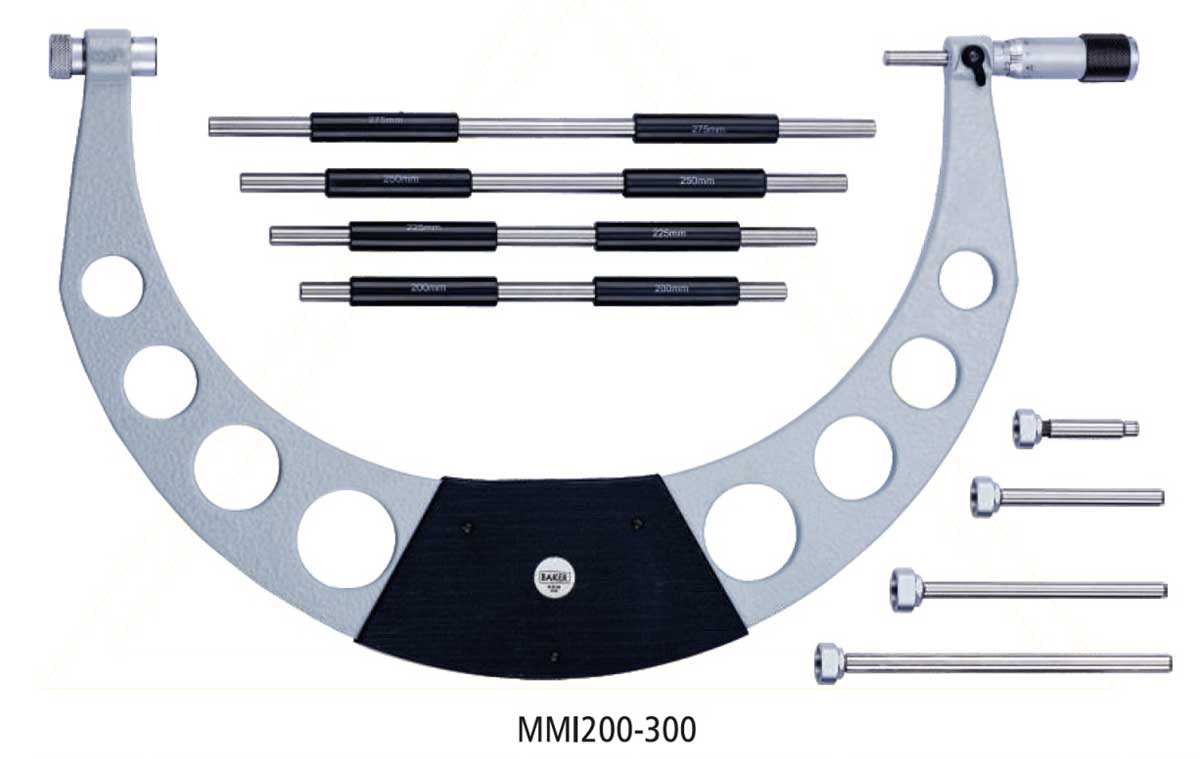

200-300	0.01	MMI200-300	8-12	0.001	INI8-12
300-400	0.01	MMI300-400	12-16	0.001	INI12-16
400-500	0.01	MMI400-500	16-20	0.001	INI16-20

External Micrometer

Specifications : IS, DIN, ANSI & JIS
Interchangeable anvils
Spindle made from stainless steel for rust prevention
Measuring faces: carbide tipped, precision ground & micro lapped
An in-built ratchet in the thimble
Easy zero setting on sleeve.
Sharp laser marking for better visibility & durability
Robust design withstands toughest workshop conditions

FEATURES

Interchangeable anvils
Spindle made from stainless steel for rust prevention
(08.0 mm, pitch O.Smm and Stroke 25mm)
Measuring faces : carbide tipped, precision ground & micro lapped
An inbuilt ratchet in the thimble
Sharp laser marking for better visibility & durability

NOTE

External Micrometer above Range 300mm & 12inch, Supplied without Handle shell (Insulating Grip)
Setting Standards –
up to 300mm & 12inch – Both Ends Flat Face.
Above 300mm & 12inch – Both Ends Spherical
