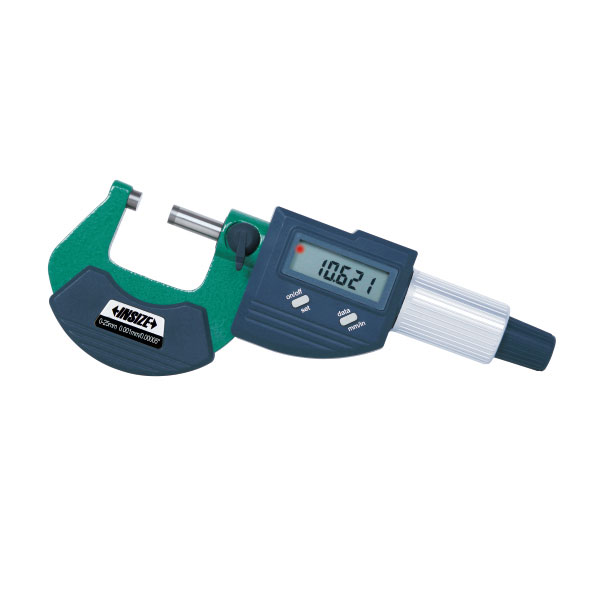

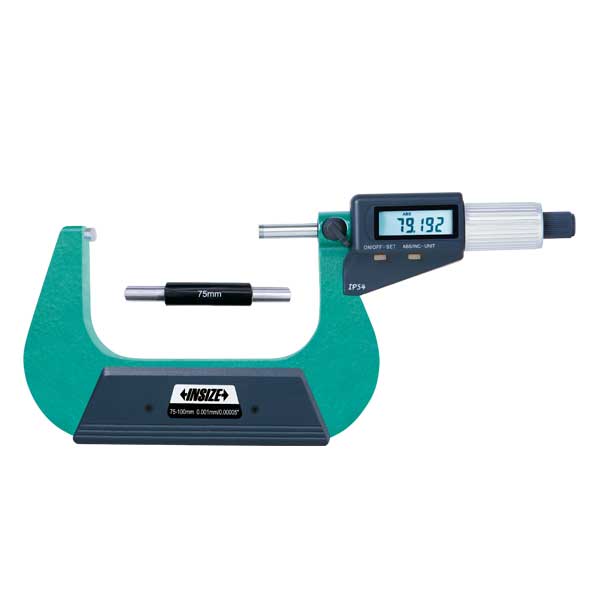

INSIZE DIGITAL OUTSIDE MICROMETERS – BASIC TYPE WITH DATA OUTPUT (CODE – 3102)

Resolution 0.01mm/0.0005" Button function : on /off, set, mm/inch, data transmit Automatic power off Carbide measuring faces Friction thimble Supplied with spherical anvil Setting standards are included (except 0-25mm/0-1")

Download Catalog

Individual

Code	Range	Accuracy	L (mm)	a (mm)	b (mm)	c (mm)
3102-25*	0-25mm/0-1″	±2µm	32	6	24	3
3102-50*	25-50mm/1-2″	±2µm	57	8	32	3
3102-75*	50-75mm/2-3″	±3µm	82	8	45	3
3102-100*	75-100mm/3-4″	±3µm	107	8	57	3
3102-125	100-125mm/4-5″	±3µm	133	10	70	3
3102-150	125-150mm/5-6″	±3µm	158	10	82	3
3102-175	150-175mm/6-7″	±4µm	183	12	95	5.5
3102-200	175-200mm/7-8″	±4µm	209	12	107	5.5

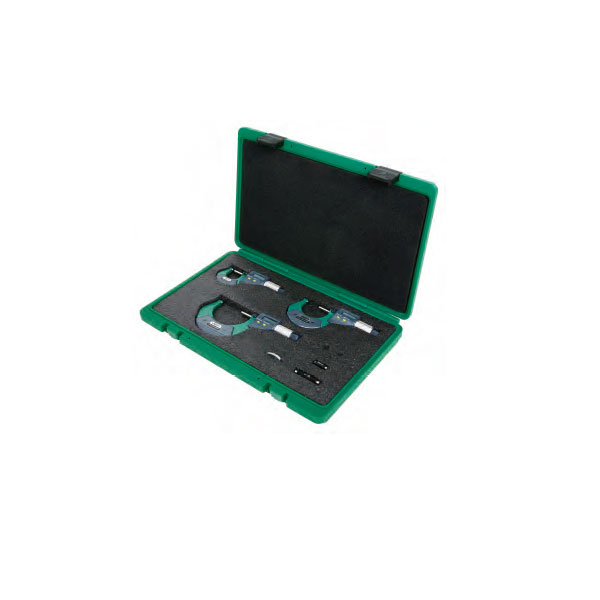

Set

Code	Range	Micrometers included	Packaging
3102-753A*	0-75mm/0-3″	3102-25A, 3102-50A, 3102-75A	blow mould case
3102-1004A*	0-100mm/0-4″	3102-25A, 3102-50A, 3102-75A, 3102-100A	blow mould case
3102-1506A*	0-150mm/0-6″	3102-25A, 3102-50A, 3102-75A, 3102-100A, 3102-125A, 3102-150A	aluminum box
