MODEL 29/38 LEVER DIAL GAUGES
FEATURES OF LEVER DIALS
  • Specification: IS, DIN, ANSI & JIS
  • Every gauge carries a calibration certificate giving actual values
  • Lever dials with auto reversal mechanism
  • Fitted with jewels and Swiss miniature ball bearings for smoother operation
  • Robust and highly sensitive gauge suitable for workshop use
  • Metric Gauges conform to IS 11498 and for the European market to DIN 2270
  • Inch Gauges conform to ASME B89.1.10M
  • Special dial Gauges for OEMs also manufactured on request
  • Complete spares and after sales service available
  • Integral dovetail offers flexibility and rigidity for mounting of the gauge
  • Metric & Inch gauges are supplied with 2 mm tungsten carbide ball stylus and 8 mm spigot assembly as standard supply
  • No additional accessories are offered when suffix A is added to the type number
  • Additional 1 mm carbide ball stylus, Height Gauge adaptor, spanner, universal clamp and 4 mm dovetail spigot assembly offered as additional accessories for gauges where type number is without suffix A

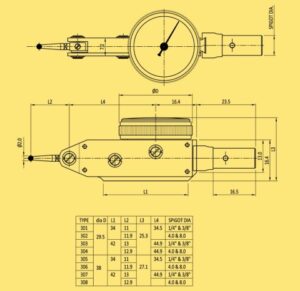

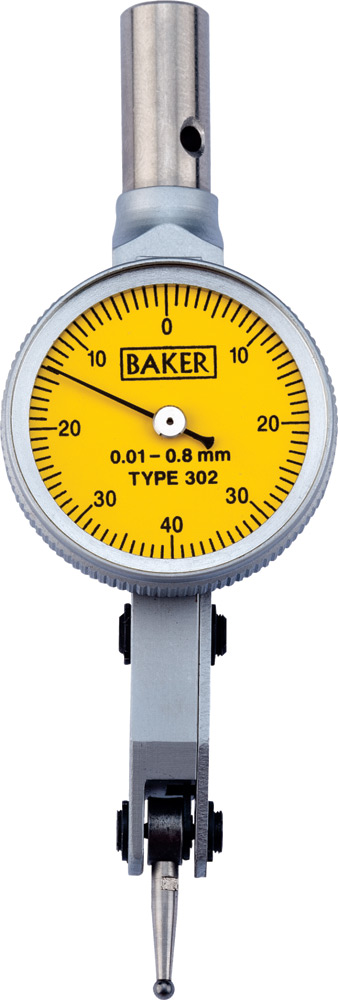

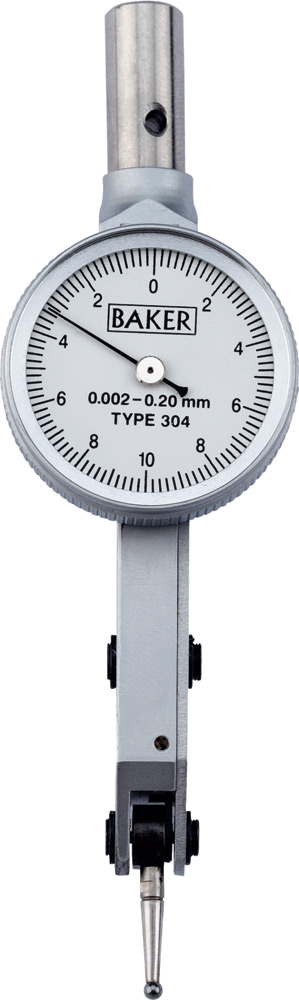

lever dials-model-29_38_01 lever dials-model-29_38_02 lever dials-model-29_38_03 lever dials-model-29_38_04 lever dials-model-29_38_05



Metric
Bezel Dia. Type Reading Range Graduation
29mm 302 0.01 mm 0.8 mm 0-40-0
29mm 304 0.002mm 0.2mm 0-10-0
29mm 302A 0.01 mm 0.8 mm 0-40-0
29mm 304A 0.002mm 0.2mm 0-10-0
38mm 306 0.01 mm 0.8 mm 0-40-0
38mm 308 0.002mm 0.2mm 0-10-0
38mm 306A 0.01 mm 0.8 mm 0-40-0
38mm 308A 0.002mm 0.2mm 0-10-0



Inch
Bezel Dia. Type Reading Range Graduation
29mm 301 0.0005″ 0.03″ 0-15-0
29mm 303 0.0001″ 0.008″ 0-4-0
29mm 301A 0.0005″ 0.03″ 0-15-0
29mm 303A 0.0001″ 0.008″ 0-4-0
38mm 305 0.0005″ 0.03″ 0-15-0
38mm 307 0.0001″ 0.008″ 0-4-0
38mm 305A 0.0005″ 0.03″ 0-15-0
38mm 307A 0.0001″ 0.008″ 0-4-0



Check the PDF
MODEL 29/38 LONG STYLUS LEVER DIAL GAUGES
FEATURES:
  • Every gauge carries a calibration certificate giving actual values
  • Auto reversal mechanism
  • Fitted with jewels and Swiss miniature ball bearings for smoother operation
  • Robust and highly sensitive gauge suitable for workshop use
  • Metric Gauges conform to IS 11498 and for the European market to DIN 2270
  • Inch Gauges conform to ASME B89.1.10M
  • Special dial Gauges for OEMs also manufactured on request
  • Complete spares and after sales service available
  • Integral dovetail offers flexibility and rigidity for mounting of the gauge
  • Metric & Inch gauges are supplied with 2mm tungsten carbide ball stylus and 8 mm spigot assembly as standard supply
  • No additional accessories are offered when suffix A is added to the type number



model-2938-long-stylus_01 model-2938-long-stylus_02 model-2938-long-stylus_03 model-2938-long-stylus_04
Bezel Dia. Type Reading Range Graduation
29mm 302L 0.01 mm 0.8mm 0-40-0
29mm 302AL 0.01 mm 0.8mm 0-40-0
38mm 306L 0.01 mm 0.8mm 0-40-0
38mm 306AL 0.01 mm 0.8mm 0-40-0
Check the PDF
