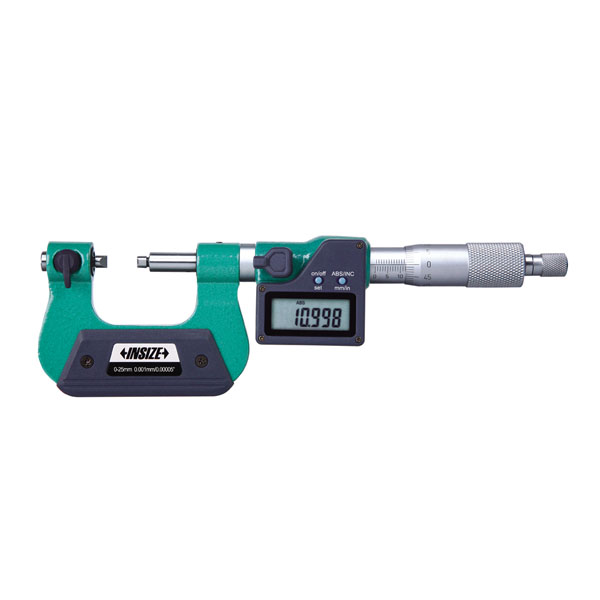

The INSIZE Digital Screw Thread Micrometer (Code 3581) is a precision measuring instrument engineered specifically for measuring the pitch diameter of screw threads. Featuring a non-rotating spindle and a ratchet stop, this instrument delivers high-resolution digital readings combined with dependable mechanical stability. It is available in various range configurations, supplied either with measuring tips included or as a model where measuring tips are optional, catering to diverse thread measurement requirements.
- Measurement Function: Designed for accurate pitch diameter measurement of screw threads.
- High Resolution: 0.001mm / 0.0005" digital display resolution.
- Digital Functions: On/off, set, mm/inch switching, and data transmission capabilities.
- Data Output: Equipped with data output port for connectivity.
- Power Management: Automatic power off functionality to conserve battery life.
- Spindle Design: Non-rotating spindle configuration to prevent wear on contact points.
- Force Control: Built-in ratchet stop for consistent, repeatable measuring force.

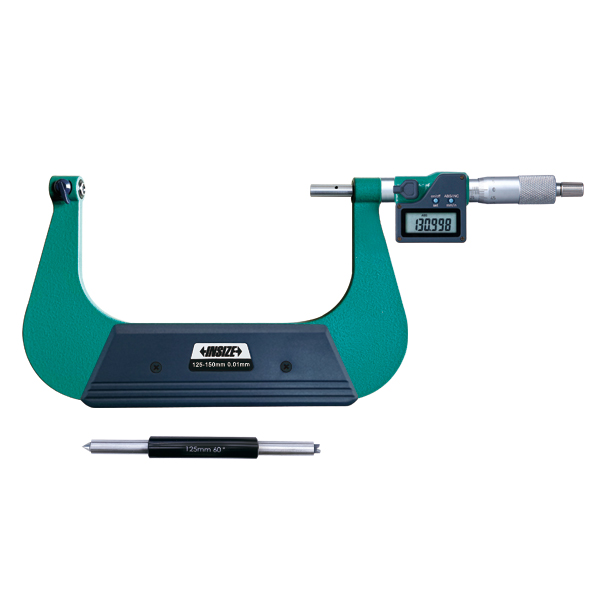

- Setting Standards: Supplied with 60° setting standards (note: excluded on 0-25mm/0-1" models).
- Wireless Compatibility: Built-in wireless variants available (Code: 3581-□□□□WL).
- Optional Accessories: 55° setting standards, data output cables (code 7315-31 receiver page 4, 7302-31 page 12), and wireless receivers.
---
Model Range & Dimensions (Measuring tips optional: Code 3581-25A to 3581-300A)

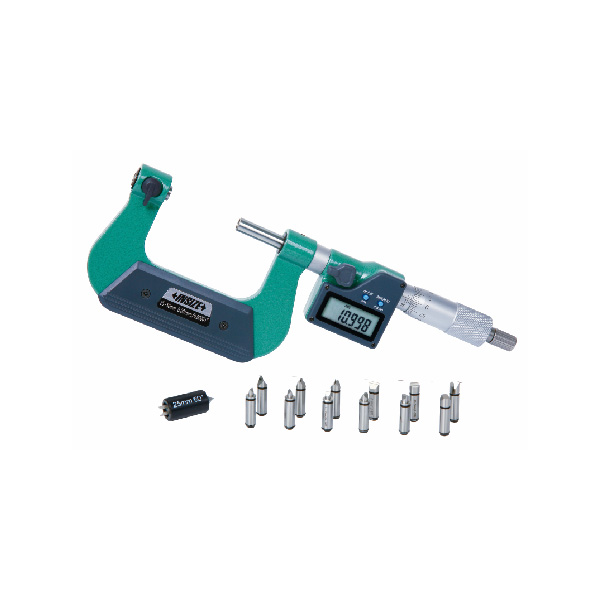

Model Range & Dimensions (Measuring tips included: Code 3581-S25 to 3581-S300)
Accuracy of Micrometers with Tips (mm)
General Electrical & Hardware Specifications
- Power Source: CR2032 rechargeable lithium battery (Built-in wireless models)
- Data Interface: CR2032 compatible output port
