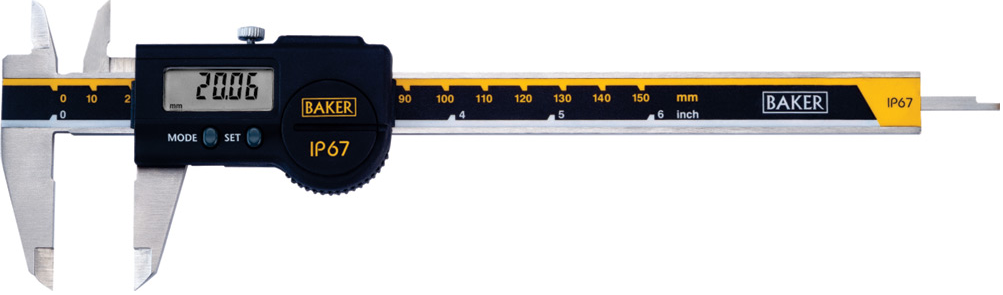

BAKER DIGITAL CALIPER WATERPROOF (ZDN SERIES)

ZDN series Digital vernier caliper / Digital Caliper IP67 available from 0-150mm to 0-300mm with IP67 Protection. RS232 data output allows to store in PC, Auto switch on bt motion, water proof, Automatic standby mode. 3V battery. Large SDN series Digital vernier caliper / Digital Caliper available from 0-500 mm to 0-1000mm with IP66 protection. High contrast liquid crystal display. Fine adjustment with lock, Auto switch off, 3V battery.
TYPE RANGE Reading
SDN10 0 – 150 mm / 0 – 6″ 0.01 mm / 0.0005″
SDN20 0 – 200 mm / 0 – 8″ 0.01 mm / 0.0005″
SDN30 0 – 300 mm / 0 – 12″ 0.01 mm / 0.0005″
Proximity cable for RS232 interface for ZDN calipers
Proximity cable for USB interface for ZDN calipers

  • Every gauge carries a calibration certificate giving actual values
  • Highest degree of protection to a hand-held instrument of its type, IP67 (according to IEC 60529)
  • Immunity to penetration of liquids or dust
  • Reliability and Accuracy of measuring tool is assured even in the most
  • Hostile workshop environment
  • High contrast Liquid Crystal Display
  • Ergonomic beam design increases comfort; reduces fatigue
  • Latest Smart Inductive System (S.I.S)
  • Automatic stand-by mode
  • Origin securely saved even in stand-by mode
  • Auto switch-on by motion of slider
  • New, Proximity type contactless RS232 data output allows user to store and analyze measurement data in PC or any other digital data storage apparatus
  • Accuracy as per DIN 862
  • Power supply 1 Lithium battery, type CR2032, 3V, 220 mAh
  • Working temperature 5 to 40 °C
