SUMMIT Graduated Try Square

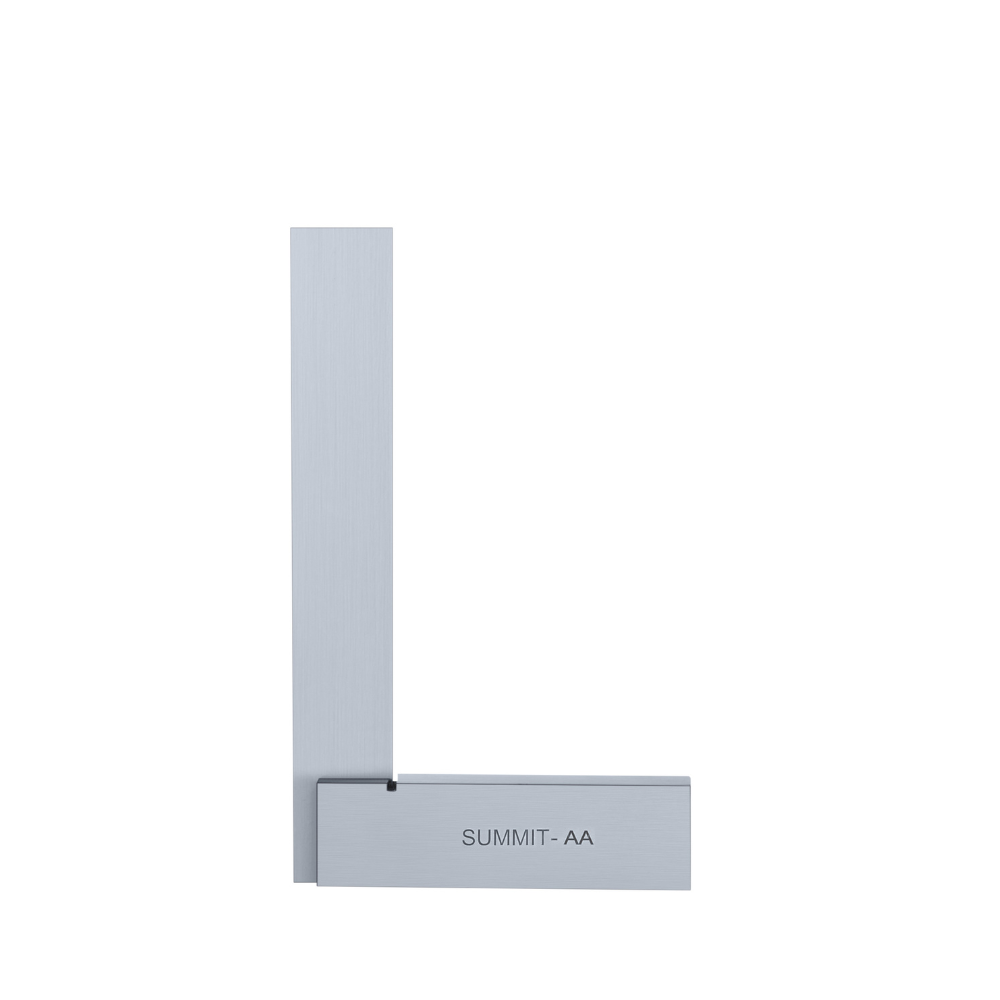

A Graduated Try Square is a precision measuring and marking tool used to check right angles (90°) and mark lines on metal, wood, or plastic surfaces. It features a steel or aluminum blade with engraved graduations for accurate measurement and layout. The square’s body is usually made of hardened metal or wood for durability and stability, while the graduations allow quick measurement of lengths and angles alongside squareness verification. This makes it essential for machinists, engineers, carpenters, and craftsmen.

Download Catalog

Part No.	Size
SGS4	4″
SGS6	6″
SGS8	8″
SGS12	12″

The Graduated Try Square is used wherever right-angle verification and precise marking are required.

Where to Use:

Metalworking – checking 90° angles on machined parts and marking layouts
Woodworking & carpentry – ensuring square cuts and marking lines
Engineering workshops – measuring and marking components for assembly
Machining & fabrication – aligning workpieces and marking for drilling or cutting
Educational / training institutes – teaching measurement and layout skills

In short: It’s used to verify squareness and make accurate measurements and markings on metal, wood, or plastic surfaces.
