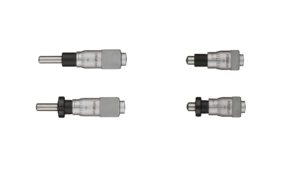

Mitutoyo-SERIES 148 – Fine Spindle Feed of 0.25mm/rev-Micrometer Heads

Miniature micrometer heads for ease of incorporating into machines. DIMENSIONS SPECIFICATIONS Metric Order No. Range Graduation Accuracy Stem dia. Stem Spindle end Spindle pitch 148-132 0 – 13mm   0.01mm   ±2µm   9.5mm Plain   Spherical (SR4)   0.25mm 148-133 w/ clamp nut 148-322 0 – 6.5mm Plain 148-323 w/ clamp nut

AUTHOR RATE
Mitutoyo-SERIES 148 – Fine Spindle Feed of 0.1mm/rev-Micrometer Heads

Highly accurate 0.1mm pitch thread is only one-fifth of that used for a standard-pitch head (0.5mm). External dimensions are compatible with standard 0.5mm pitch heads. DIMENSIONS SPECIFICATIONS Metric Order No. Range Graduation Accuracy Stem dia. Stem Spindle end Spindle pitch Special features 148-142     0 – 6.5mm     0.002mm   ±2µm   9.5mm Plain […]

AUTHOR RATE
Mitutoyo-SERIES 152 – Quick Spindle Feed of 1mm/rev-Micrometer Heads

Quick spindle feed of 1mm/rev. DIMENSIONS SPECIFICATIONS Metric Order No. Range Graduation Accuracy Stem dia. Stem Spindle end Spindle pitch 152-101 0 – 15mm   0.01mm ±2µm   12mm   Plain   Flat (carbide tip)   1mm 152-102 0 – 25mm 152-103 0 – 50mm ±4µm

AUTHOR RATE

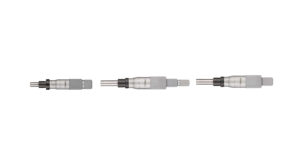

Mitutoyo-SERIES 153 – Non-rotating Spindle Type – Micrometer Heads

The spindle translates without rotation. Torsion-free feed reduces workpiece deformation and wear. DIMENSIONS SPECIFICATIONS Metric Order No. Range Graduation Accuracy Stem dia. Stem Spindle end Spindle pitch Graduation features 153-101 0 – 15mm 0.01mm   ±3µm 9.5mm   Plain   Flat (carbide tip)   0.5mm Standard 153-201*   0 – 25mm   12mm 153-202* 0.001mm […]

AUTHOR RATE

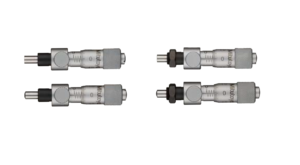

Mitutoyo-SERIES 148 – Locking-screw Type – Micrometer Heads

Locking screw provides secure locking at any position of the spindle. Position of the locking screw is the same as the sleeve index line. DIMENSIONS SPECIFICATIONS Metric Order No. Range Graduation Accuracy Stem dia. Stem Spindle end Graduation features 148-220   0 – 6.5mm           0.01mm   ±5µm   6mm Plain […]

AUTHOR RATE

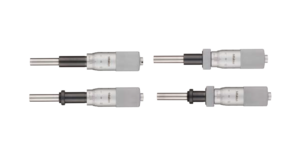

Mitutoyo-SERIES 151 – Medium-sized Standard Type with 8mm diameter spindle-Micrometer Heads

Larger spindle for heavy-duty applications (normally ø6.35mm). DIMENSIONS SPECIFICATIONS Metric Order No. Range Accuracy Stem dia. Stem Spindle end Special features 151-224           0 – 25mm           ±2µm             12mm Plain             Flat (carbide tip)   — […]

AUTHOR RATE

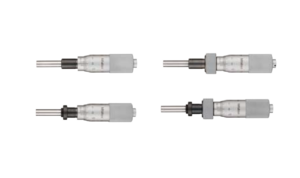

Mitutoyo-SERIES 150 – Medium-sized Standard Type-Micrometer Heads

Measuring range of 25mm. DIMENSIONS SPECIFICATIONS Metric Inch Order No. Range Accuracy Stem dia. Stem Spindle end Special features 150-208               0 – 1″               ±.0001″               .375″ Plain   Flat (carbide tip)     Standard 150-207 […]

AUTHOR RATE

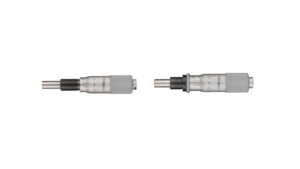

Mitutoyo-SERIES 149 – Small Standard Type with Carbide-Tipped Spindle-Micrometer Heads

Carbide-tipped spindle provides high abrasion resistance. DIMENSIONS SPECIFICATIONS Metric Order No. Range Accuracy Stem dia. Stem Spindle end Graduation features 149-132           0 – 15mm           ±2µm           9.5mm Plain   Flat (carbide tip)     Standard 149-131 W/ clamp nut 149-183 Plain* […]

AUTHOR RATE
Mitutoyo-SERIES 148 – Small Thimble Diameter Standard Type-Micrometer Heads

Measuring range of 13mm. The thimble can be set to zero at any position by loosening the setscrew. Stainless steel throughout: 148-513, 518, 511 DIMENSIONS   SPECIFICATIONS Metric Order No. Range Accuracy Stem dia. Stem Spindle end Special features 148-503           0 – 13mm           ±2µm   […]

AUTHOR RATE
Mitutoyo-SERIES 148 – Small Standard Type-Micrometer Heads

Measuring range of 13mm. SPECIFICATIONS Metric Order No. Range Accuracy Stem dia. Stem Spindle end Graduation features 148-104           0 – 13mm           ±2µm           9.5mm Plain   Flat       Standard 148-103 W/ clamp nut 148-121 Plain* 148-120 W/ clamp nut* […]

AUTHOR RATE
Mitutoyo-SERIES 148 — Short Thimble with Choice of Diameter-Micrometer Heads

Short body design maintains measuring range for limited space applications. Available in three thimble diameters to provide ease-of-reading options. DIMENSIONS Technical Data Graduation: 0.01mm or .001” Spindle pitch: 0.5mm or .025”

AUTHOR RATE
Mitutoyo-SERIES 148 — Small/Ultra-small Type-Micrometer Heads

Miniature micrometer heads for ease of incorporating into machines.   SPECIFICATIONS Metric Order No. Range Accuracy Stem dia. Stem Spindle end Graduation 148-215 0 – 5mm ±5µm 3.5mm Plain W/ clamp nut Spherical (SR1.5) Standard 148-216 148-201 0 – 6.5mm 6mm Plain W/ clamp nut Flat 148-203 148-205 Plain W/ clamp nut Spherical (SR3) 148-207 […]

AUTHOR RATE

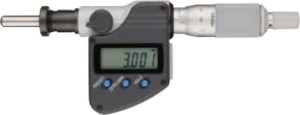

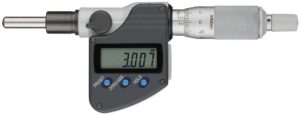

Mitutoyo-Series 164, 350-Digimatic Micrometer Heads

Equipped with digital display and output. Series 350 IP65 models: the Digimatic output port enables inclusion in a statistical process control or networked measurement system. (Refer to page A-3 for details). SPECIFICATIONS Metric Order No. Range Resolution Accuracy** Stem Stem dia Spindle end Graduation features 164-163 0 – 50mm 0.001mm ±3µm ±2µm Plain 18mm Flat (carbide […]

AUTHOR RATE
MICROMAR 46 EWR DIGITAL MICROMETER HEAD

High contrast analog display Rapid drive with integrated ratchet Immediate measurements due to the Reference System Digimatic Opto RS232C USB Battery life approx. 2 years IP 52 end cap (in case the rapid drive is not required) instruction manual battery case 8.5mm             Technical Data Order no. Measuring range mm […]

AUTHOR RATE
MICROMAR 46 / 46 H – MICROMETER HEAD

MICROMAR 46 MICROMETER HEAD Operating and display units with satin chrome finish Stainless spindle is hardened throughout and ground Technical Data Order no. Measuring range mm Graduation value mm Error limit µm Spindle diameter Spindle thread pitch_mm 4183021 0 – 6.5 0,01 3 µm 3.5 mm 0.5 mm 4183023 0 – 50 0,01 5 µm […]

AUTHOR RATEUSERS RATE (0)
MICROMETER HEAD

Micrometer Head – Plain Holding Diameter FEATURES: Spindle made from stainless steel for rust prevention Measuring face: carbide tipped, precision ground & micro lapped An in-built ratchet in the thimble Sharp laser marking for better visibility & durability     Measuring Range mm Reading mm Type Measuring Range inch Reading inch Type 0-25 0.01 MMA25-HP […]
