The shank is electrically conducted to the metal workpiece through the chuck and table, the LED lights up and the beeper sounds(only for 6566-3), when the ball touches the workpiece Not suitable for rotary use Hardened shank and contact ball Code Shank (A) Contact ball (B) Accuracy Beeper Battery 6566-2 ร20mm Sร10mm 5ยตm without 23AE,

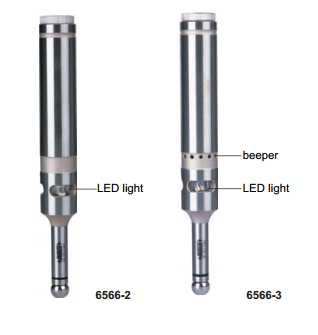

The INSIZE Electronic Edge Finder (Code: 6566) is a high-precision inspection tool designed for positioning and locating metal workpieces on milling machines and other metalworking equipment. It operates via electrical conduction: when the hardened contact ball touches the conductive metal workpiece, the shank completes the electrical circuit through the chuck and table, instantly activating an LED light and an audible beeper (available on model 6566-3).
This tool is supplied in two distinct model variants (6566-2 and 6566-3) differing by beeper inclusion. It features a hardened shank and contact ball for enhanced durability in workshop environments. Note that this tool is strictly designed for stationary setup and is not suitable for rotary use.
