• DIN875 grade 0
  • Made of hardened stainless steel

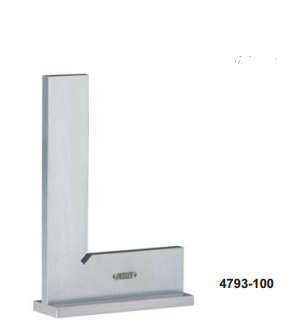

flat edge square-4793 flat edge square-4793_01



    Squareness
Code Size (LxW) Inside(α) Outside(β) C D H E(mm)
4793-50 50x40mm 6µm 6µm 13 13 4 13
4793-75 75x50mm 6µm 7µm 15 15 4 15
4793-100 100x70mm 7µm 7µm 20 20 5 20
4793-150 150x100mm 7µm 8µm 30 30 6 30
4793-200 200x130mm 8µm 9µm 30 30 7 30
4793-250 250x165mm 9µm 10µm 35 35 7 35
4793-300 300x200mm 10µm 11µm 40 40 8 40

Check the PDF
