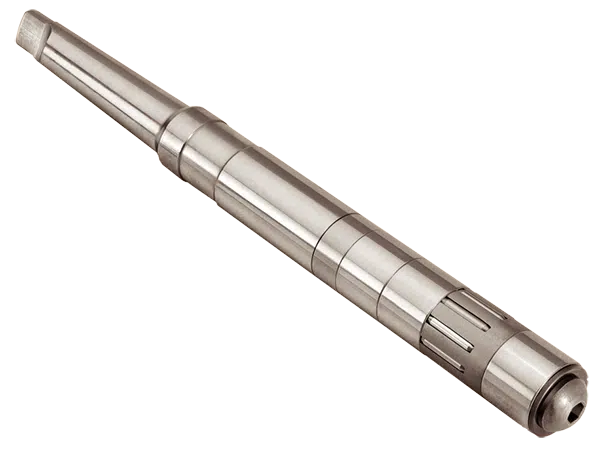

The Cogsdill Bearingizing Tool combines roller burnishing with a peening action. As the tool rotates at high speed, the rolls spin, rise, and fall over a cammed arbor, delivering up to 200,000 rapid-fire blows per minute to the work surface. This action compacts the peaks and valleys of a machined surface into a smooth, hardened, and ultrafine finish.
The tool is suitable for through-hole, semi-bottoming, or bottoming applications.
- Dual Action Mechanics: Combines roller burnishing with continuous peening (up to 200,000 blows per minute).
- Surface Hardening: Increases surface hardness by 10% to 30%.
- Multiple Roll Positions: Features three roll/cage positions over the cammed arbor to extend tool life. When the forward position (#1 position) wears, the roll cage can be repositioned to #2 and #3 positions by exchanging movable collars.
- Adjustability: Adjustable via roll change only. Rolls are diametrically opposed and manufactured in increments of .0001 inch (.0025 mm). The effective tool diameter can be changed in .0002 inch (.0051 mm) increments, accommodating a range of roll sizes up to .002 inch (.0508 mm).

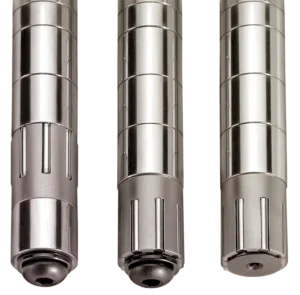

- Tool Styles: Available in Through-hole, Semi blind-hole, and Blind-hole configurations.
Application Suitability (When to use the Bearingizer):
- Thin Walls: Eliminates barrel-shaping of the part.
- Irregular Wall Thicknesses: Produces a very round hole compared to standard tools that may generate egg-shaped holes.
- Porosity Issues: The smaller "footprint" of the Bearingizing roll leaves pores in surfaces (such as oil-impregnated bearings) intact.
- Tight Tolerances: Reduces springback in the work surface material, holding sizes as close as ±.0001 inch (.002mm) in some materials with proper preparation.
(Note: Shanks other than shown above are available upon request.)
