COGSDILL BURR-OFF DEBURRING TOOL

Code:

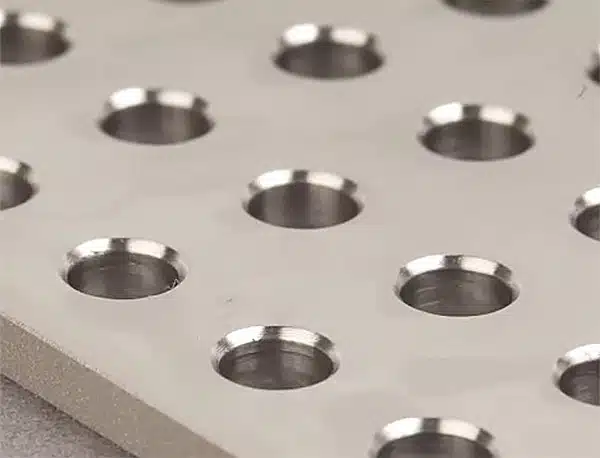

▪Deburrs front, back, or both sides in one operation
▪Ideal for high-volume automated and multi-spindle machines
▪Best suited for ferrous materials
▪Open-slot ("Clothes Pin") design ensures excellent chip evacuation

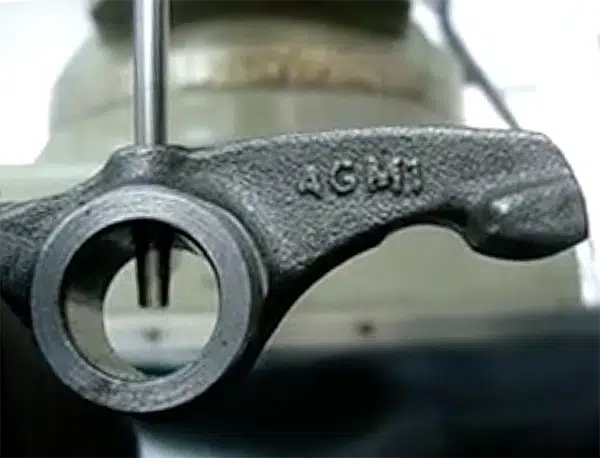

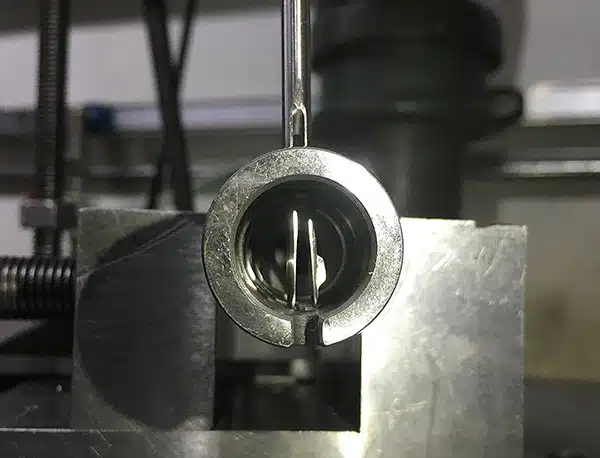

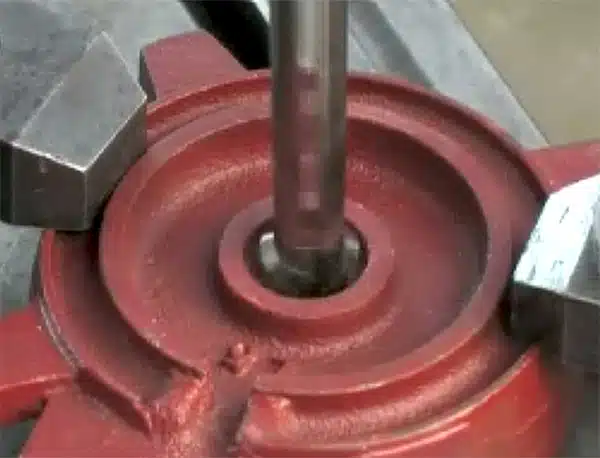

▪Perfect for restricted-access holes, pipes, tubes, flanges, housings, and multi-layer components
▪Suitable for hole sizes 1.57 mm to 5.56 mm (larger sizes available)
▪Durable one-piece construction for reliable performance

Click to Expand

COGSDILL BURR-OFF DEBURRING TOOL

Product Overview

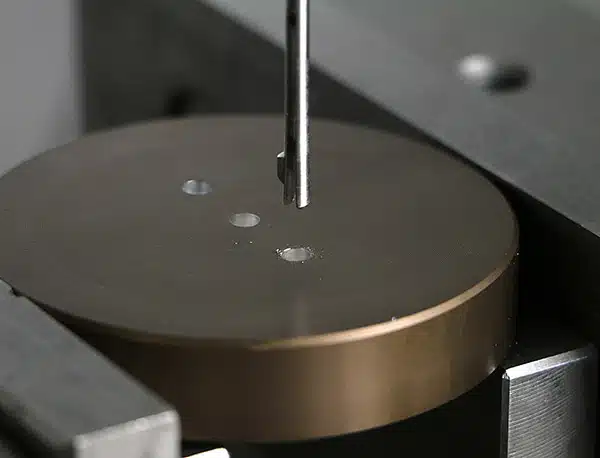

The Cogsdill Burr-Off® is an automated, high-production deburring tool designed to deburr the front, back, or both sides of a hole in one fast pass. Operating on a similar basic principle to the Burraway® system, the Burr-Off features an open-slot "clothespin tool" design that allows chips to clear easily, making it ideal for automatic equipment and multi-spindle machines.

The tool utilizes a simple one-piece construction with integral cutting edges. Models CP-20 through CP-40 are supplied with a drive tang on the shank.

Key Features & Capabilities

Single-Pass Deburring: Cleans and deburrs the front, back, or both sides of a hole in a single continuous stroke.

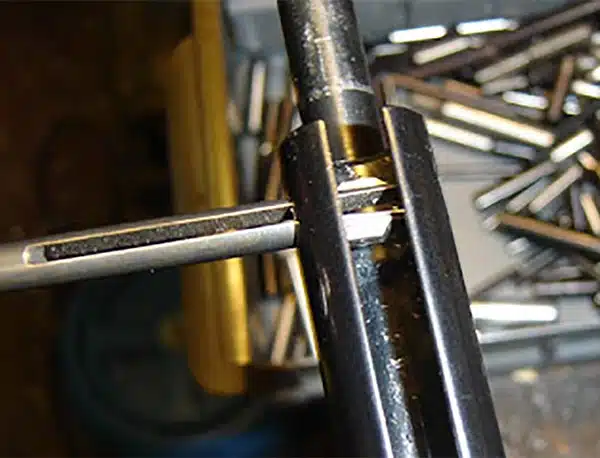

Open-Slot "Clothespin" Design: Slotted design allows the tool to "collapse" under load as it feeds through the workpiece, ensuring easy chip clearance for high-volume automated and multi-spindle environments.
Surface Protection: Features a crowned and polished top surface on the cutting edges that will not mar the inside surface of the hole.
Adjustable Tension: Equipped with a sliding tension-adjustment mechanism (on all models except CP-4 through CP-9) to control the amount of edge break and stock removal based on material hardness.
Cutting Edge Configuration:
CP-4 through CP-13: Feature a single cutting edge for hole sizes from .062 inch (1.57 mm) through .219 inch (5.56 mm).
CP-14 and Larger: Feature two cutting edges.
Resharpening Capability: Cutting edges may be reground up to four times to extend tool life.

Operating Recommendations

Speeds and Feeds: Run using the same speed and feed rates as a standard high-speed steel (HSS) drill.
Edge Break Adjustment: Loosen the screw on the sliding tension-adjustment mechanism and move it up or down the length of the slot to increase or decrease stock removal.
Resharpening Procedure: Hand grind the face .010–.015 in. (0.25 mm–0.38mm), preferably using an abrasive wheel matching the specified "A" diameter. Flat face grinding is optional.

Grinding Wheel Diameter Reference ("A" Diameter)

Tool Size	Grinding Wheel Dia. A (in.)	Grinding Wheel Dia. A (mm)
CP-4 thru CP-11	0.62	15.7
CP-12 thru CP-27	0.75	19.1
CP-28 thru CP-35	0.87	22.1
CP-36 thru CP-40	1.25	31.7

Technical Specifications

Tool Number	Range of Hole Sizes (in.)	Range of Hole Sizes (mm)	Shank Diameter (in.)	Shank Diameter (mm)	Overall Length (in.)	Overall Length (mm)	Dim. A (in.)	Dim. A (mm)	Dim. B (in.)	Dim. B (mm)
CP-4	.062–.078	1.57–1.98	.061	1.55	3.00	76.2	.08	2.11	.22	5.56
CP-5	.078–.094	1.98–2.39	.077	1.96	3.00	76.2	.08	2.11	.22	5.56
CP-6	.093–.109	2.36–2.77	.092	2.34	4.00	101.6	.09	2.36	.25	6.35
CP-7	.109–.125	2.77–3.17	.108	2.74	4.00	101.6	.09	2.36	.25	6.35
CP-8	.125–.140	3.17–3.55	.124	3.14	4.00	101.6	.13	3.30	.30	7.62
CP-9	.140–.156	3.55–3.96	.139	3.53	4.00	101.6	.13	3.30	.30	7.62
CP-10	.156–.172	3.96–4.36	.155	3.93	4.00	101.6	.13	3.30	.30	7.62
CP-11	.172–.187	4.36–4.74	.171	4.34	4.00	101.6	.13	3.30	.30	7.62
CP-12	.187–.203	4.74–5.15	.186	4.72	4.00	101.6	.13	3.30	.37	9.39
CP-13	.203–.219	5.15–5.56	.202	5.13	4.00	101.6	.13	3.30	.37	9.39
CP-14	.219–.234	5.56–5.94	.218	5.53	4.00	101.6	.25	6.35	.50	12.7
CP-15	.234–.250	5.94–6.35	.233	5.91	4.00	101.6	.25	6.35	.50	12.7
CP-16	.250–.266	6.35–6.75	.249	6.32	4.00	101.6	.25	6.35	.50	12.7
CP-17	.266–.281	6.75–7.13	.265	6.73	4.00	101.6	.25	6.35	.50	12.7
CP-18	.281–.297	7.13–7.54	.280	7.11	4.00	101.6	.25	6.35	.50	12.7
CP-19	.297–.313	7.54–7.95	.296	7.51	4.00	101.6	.29	7.36	.54	13.71
CP-20	.313–.328	7.95–8.33	.312	7.92	4.00	101.6	.29	7.36	.54	13.71
CP-21	.328–.343	8.33–8.71	.327	8.30	4.00	101.6	.29	7.36	.54	13.71
CP-22	.343–.359	8.71–9.11	.342	8.68	4.00	101.6	.29	7.36	.54	13.71
CP-23	.359–.375	9.11–9.52	.358	9.09	4.00	101.6	.29	7.36	.54	13.71
CP-24	.375–.390	9.52–9.90	.374	9.49	4.43	112.5	.32	8.12	.55	13.97
CP-25	.390–.406	9.90–10.31	.389	9.88	4.43	112.5	.32	8.12	.55	13.97
CP-26	.406–.422	10.31–10.71	.405	10.28	4.43	112.5	.32	8.12	.55	13.97
CP-27	.422–.437	10.71–11.09	.420	10.66	4.43	112.5	.32	8.12	.55	13.97
CP-28	.437–.453	11.09–11.50	.436	11.07	5.50	139.7	.35	8.89	.62	15.74
CP-29	.453–.468	11.50–11.88	.452	11.48	5.50	139.7	.35	8.89	.62	15.74
CP-30	.468–.484	11.88–12.29	.467	11.86	5.50	139.7	.35	8.89	.62	15.74
CP-31	.484–.500	12.29–12.70	.483	12.26	5.50	139.7	.35	8.89	.62	15.74
CP-32	.500–.515	12.70–13.08	.499	12.67	7.00	177.8	.38	9.65	.68	17.27
CP-33	.515–.531	13.08–13.48	.514	13.05	7.00	177.8	.38	9.65	.68	17.27
CP-34	.531–.547	13.48–13.89	.530	13.46	7.00	177.8	.38	9.65	.68	17.27
CP-35	.547–.563	13.89–14.30	.545	13.84	7.00	177.8	.38	9.65	.68	17.27
CP-36	.563–.578	14.30–14.68	.562	14.27	7.50	190.5	.42	10.66	.82	20.82
CP-37	.578–.594	14.68–15.08	.577	14.65	7.50	190.5	.42	10.66	.82	20.82
CP-38	.594–.609	15.08–15.46	.593	15.06	7.50	190.5	.42	10.66	.81	20.57
CP-39	.609–.625	15.46–15.87	.608	15.44	7.50	190.5	.42	10.66	.81	20.57
CP-40	.625–.641	15.87–16.28	.624	15.84	7.50	190.5	.45	11.43	.88	22.35

Note: Drive tang on shank supplied on models CP-20 through CP-40. Tools for larger hole sizes up to 1.000 inch (25.4 mm) are available upon request.
