COGSDILL GUN CHAMBER BURNISHING TOOL

Code:

▪Ensure trouble-free shell casing ejection with the Cogsdill Gun Chamber Burnishing Tools (CBT).
▪The chamber burnishing tools have been designed to the Sporting Arms and Ammunitions Manufacturers Institute (SAAMI) standard for Handgun and Rifle Chamber geometries.

Click to Expand

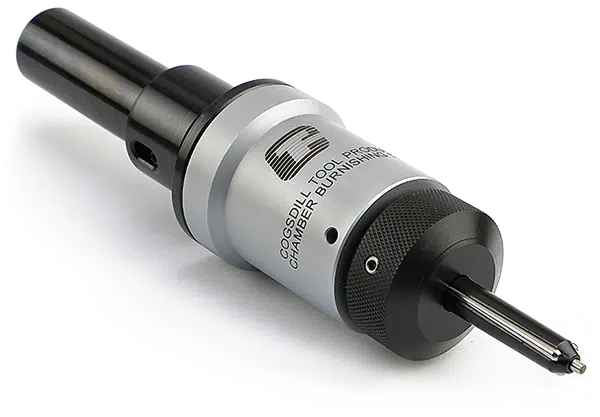

COGSDILL GUN CHAMBER BURNISHING TOOL

Product Overview

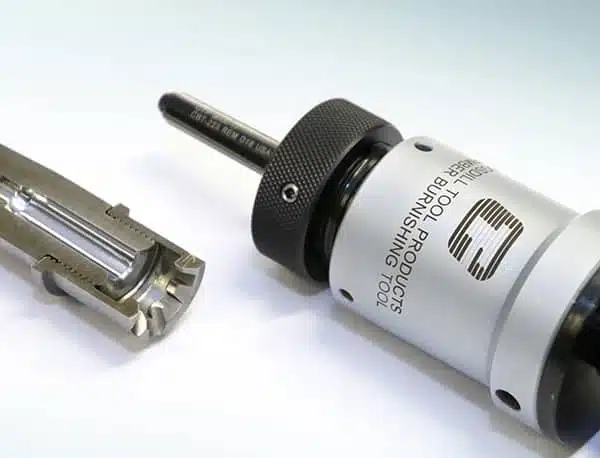

The Cogsdill Gun Chamber Burnishing Tools (CBT) are precision expanding roller burnishing tools designed to produce an extremely fine surface finish of 15 micro-inches or less in armament shell chambers. Engineered to Sporting Arms and Ammunitions Manufacturers Institute (SAAMI) standards for handgun and rifle chamber geometries, these tools apply a steady rolling force via hardened tapered rollers riding on an inversely tapered mandrel to ensure trouble-free shell casing extraction and ejection without removing any metal.

Key Features & Capabilities

Surface Finish Achievement: Generates an exceptional finish of 15 micro-inches (or less) from a uniform, tear-free reamed start.
Controlled Rolling Force: Utilizes an adjustable overtravel mechanism to precisely control burnishing pressure and force delivery.
Adjustable Parameters: Features adjustable burnishing length and tool stroke capabilities to ensure complete surface coverage without contacting chamber angles.

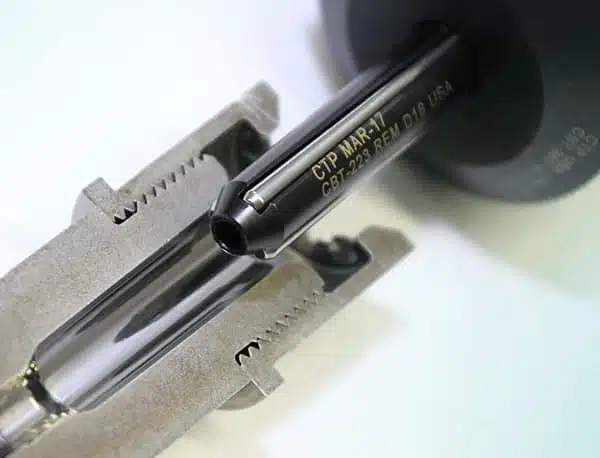

Precision Components: Built with hardened tapered rollers, an inversely tapered mandrel, a roller-holding cage, and a bearing-mounted stop.
Coolant Application: Designed to be flooded with clean, filtered coolant during operation.

Technical Specifications & Recommendations

Recommended Speed: 150 – 250 SFM
Recommended Feed: 0.010 – 0.030 IPR
Recommended Dwell Time: 2 seconds at full burnishing force

Tool Specifications & Parameters Matrix

Tool Model / Part No.	Part Name / Caliber	Recommended Burnishing Force (LBS)	Overtravel Stroke to Achieve Force (IN.)	RPM @ 200 SFM
CBT-9MM	9MM	360	0.060	2,000
CBT-380-AUTO	380 AUTO	360	0.060	2,000
CBT-40-S&W	40 S&W	360	0.060	1,800
CBT-45-ACP	45 ACP	400	0.070	1,600
CBT-38-AUTO	38 AUTO	400	0.070	2,000
CBT-357-MAG	357 MAG	550	0.090	2,000
CBT-357-SIG	357 SIG	360	0.060	1,800
