INSIZE CONCENTRCITY GAGE (CODE – 4789)

Code:

▪Accuracy 2μm
▪Optional accessory : dial test indicator

Click to Expand

INSIZE CONCENTRICITY GAGE (CODE – 4789)

Product Overview

The INSIZE Concentricity Gage (Code – 4789) is a precision inspection instrument designed for accurate concentricity measurement. Available in fixed stand and universal stand configurations, this gage delivers an accuracy of 2µm. To ensure this high level of accuracy during operation, the distance between the measuring point and the roller should be kept under 30mm.

Key Features & Capabilities

High Precision: Maintains an accuracy of 2µm.

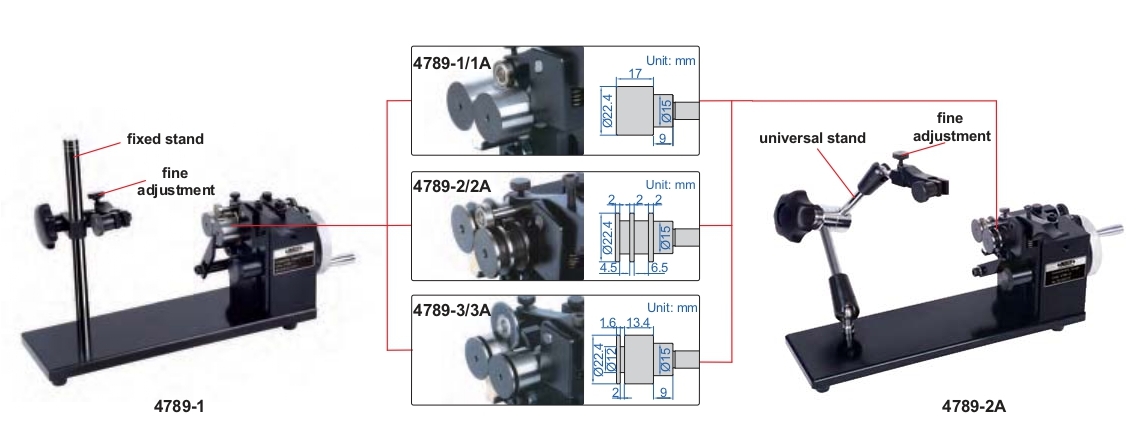

Stand Options: Available with either a fixed stand or a universal stand featuring fine adjustment.
Optional Accessory: Compatible with dial test indicators.
Operational Requirement: To ensure measurement accuracy, the distance between the measuring point and roller must be <30mm.
Base Dimensions: 250mm (L) x 78mm (W).
Overall Height: 176mm.

Technical Specifications

Code	Applicable Diameter	Remark / Configuration
4789-1	Ø3.5-25mm	Fixed stand, high accuracy, inconvenient operation
4789-2	Ø1-25mm	Fixed stand, high accuracy, inconvenient operation
4789-3	Ø1-25mm	Fixed stand, high accuracy, inconvenient operation
4789-1A	Ø3.5-25mm	Universal stand, low accuracy, convenient operation
4789-2A	Ø1-25mm	Universal stand, low accuracy, convenient operation
4789-3A	Ø1-25mm	Universal stand, low accuracy, convenient operation
