KRISTEEL WELDING GAUGE BRIDGE CAM (BCWG)

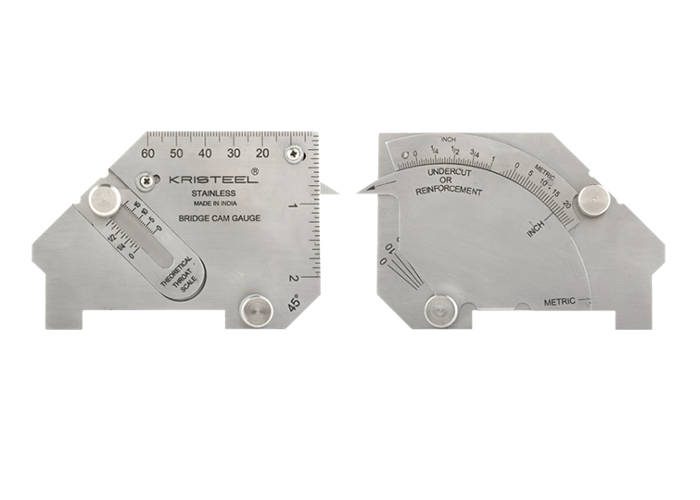

This rugged gauge, fabricated in Stainless steel, will measure the important dimensions of weld preparations and of completed Butt and Fillet welds.
lt is intended for general fabrication work in the shop or on-site and rapidly measures the following weld features: Angle of preparation (0 to 60°), Excess weld metal, fillet weld leg length, Throat size, Misalignment and hole sizes for butt weld and but weld reinforcement.
General linear measurements up to 60 mm or 2 inches.

Buy Now

Download Catalog

Available other models:
1) Multipurpose Weld gauge 2) Automatic Weld gauge

Adjustable scale, Miter slide, Main quadrant.
To check undercut
To check excess weld metal (butt weld reinforcement)
To check fillet leg length
To check fillet weld throat actual & theoretical (mm/ inch)
To check angle of preparation for butt weld
To check misalignment in butt weld
MATERIAL: Base in Stainless Steel 430 thick-2.0 and scale in S.S.202 thick=1.0 mm
RANGE: as per given in following diagrams.
LEASTCOUNT: 0.01 mm.
FINISH: Polished.
PACKING :Scales graduated in metric units, Supplied in a protective case and Instruction leaflet
