KRISTEEL WELDING GAUGE DIGITAL (MODEL NO – 3458)

Code:

▪This rugged gauge, fabricated in Stainless steel, will measure the important dimensions of weld preparations and of completed Butt and Fillet welds.
▪lt is intended for general fabrication work in the shop or on-site and rapidly measures the following weld features: angle of preparation 60, 70, 80, & 90 degree.
▪Fillet weld leg throat size, Butt weld reinforcement.

Click to Expand

KRISTEEL WELDING GAUGE DIGITAL (MODEL NO – 3458)

Product Overview

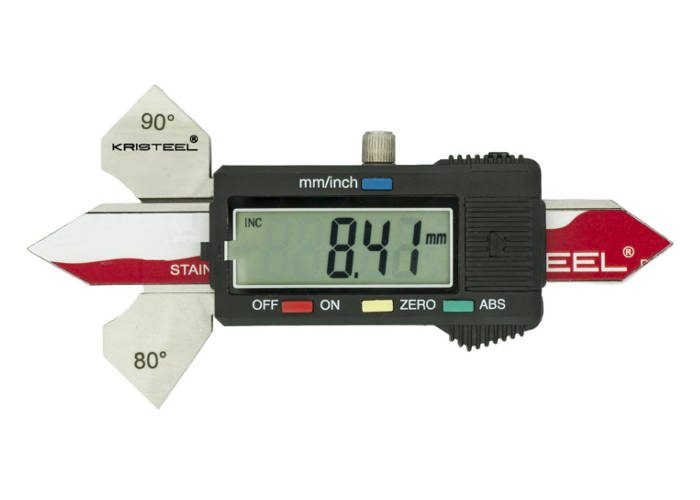

The Kristeel Digital Welding Gauge (Model No. 3458) is a rugged, stainless steel instrument designed to measure key dimensions of weld preparations and completed butt and fillet welds. Suitable for shop or on-site general fabrication work, this digital gauge provides immediate, accurate readings for weld preparation angles, fillet weld leg throat sizes, and butt weld reinforcement. Each unit is supplied with a calibration certificate.

Key Features & Capabilities

Accurate readings instantly with an easy-to-read digital display.
Zero setting at any position.
Metric/Imperial system conversion at any position.
Measures preparation angles: 60°, 70°, 80°, and 90°.
Measures fillet weld leg throat size and butt weld reinforcement.

Technical Specifications

Parameter	Specification
Model Number	3458
Material	Stainless Steel (Base thickness: 6.3 mm / 6.0 mm, Beam thickness: 3.4 mm / Scale thickness: 3.0 mm)
Finish	Polish / Hardened and Polished
Standard	DIN862
Least Count	0.01 mm / 0.001"
Range	0–20 mm (Throat up to 20 mm, Butt Reinforcement up to 4.0 mm)
Accuracy	±0.03 mm
Length	120 mm
Width	59.8 mm
Type	Rigid
