KRISTEEL WITE GAUGE (MODEL N0 – 1505 / 1506)

Code:

▪The Kristeel Wire Gauge is a precision measuring tool designed to accurately determine the diameter or gauge of wires, sheets, and thin materials.
▪Manufactured from high-quality hardened steel with precision-machined slots, it provides quick, reliable, and accurate measurements.
▪Ideal for electrical, engineering, manufacturing, fabrication, and quality inspection applications.

Click to Expand

KRISTEEL WIRE GAUGE (MODEL NO – 1505 / 1506)

Product Overview

The Kristeel Wire Gauge (Models 1505 and 1506) is a precision measuring instrument designed for checking sheet thickness and wire diameters in both British (SWG) and Metric systems. Manufactured to rigorous international standards, these gauges provide reliable, accurate measurements for engineering, fabrication, and quality control applications.

Key Features & Capabilities

Graduations in both British (SWG) and Metric systems.
Permanent etched markings for clear reading and long-term durability.

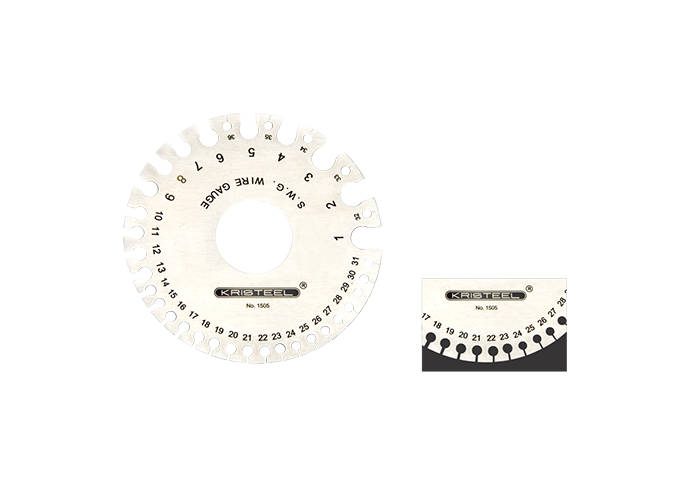

Center hole (Ø25mm) on Model 1505 for easy handling and holding during inspection.
Individually packed in a PVC pouch with a printed card containing a Gauge Conversion chart.
Optional satin chrome plated finish available.

Technical Specifications

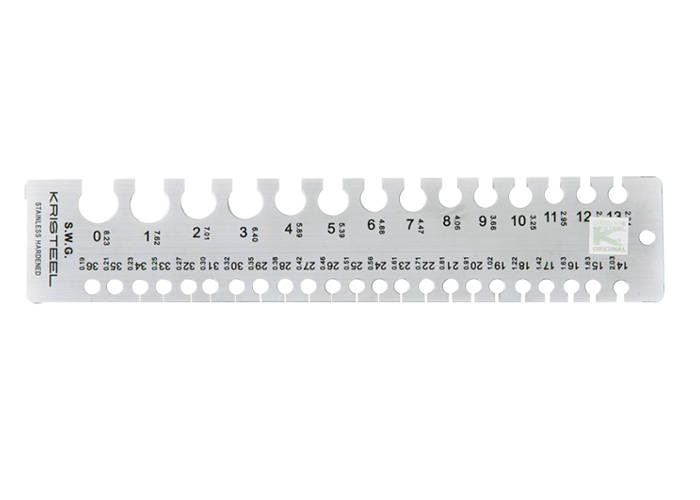

Parameter	Model 1505 (Round)	Model 1506 (Rectangular)
Material	Stainless Steel, Full Hard (1.0 thick)	Stainless Steel, Full Hard (1.0 thick)
Finish	Polished (Optional Satin Chrome)	Polished (Optional Satin Chrome)
Standard	EEC-I	EEC-I
Least Count	1 SWG	1 SWG
Range	1 to 36 SWG (Incremental of 1 gauge)	1 to 36 SWG (Incremental of 1 gauge)
Top Side Graduation	SWG 1 TO 36 Marking	SWG 0 TO 36 Marking
Back Side Graduation	SWG to MM Conversion	SWG to MM Conversion
Length (mm)	86 mm	165 mm
Width (mm)	86 mm	33 mm
Thickness (mm)	1 mm	1 mm
Type	Rigid	Rigid
Accuracy (±mm)	0.025 & 0.05 mm	0.025 & 0.05 mm
