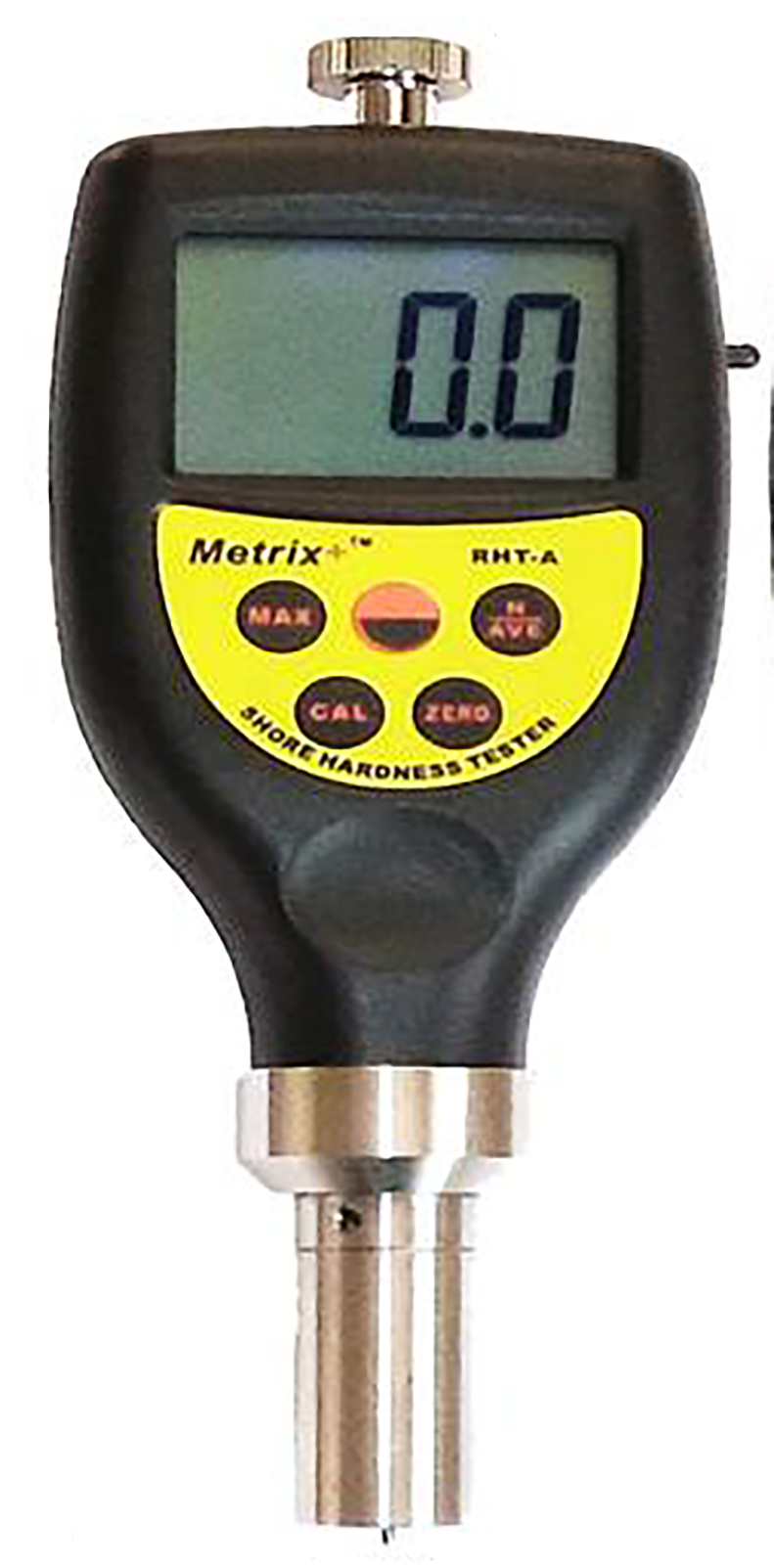

The Metrix+ RHT-A is an integrated probe, lightweight digital Shore A hardness tester designed for precise measurement of soft elastomers, rubbers, and polymers. Utilizing an indenter loaded by a calibrated spring, the instrument determines measured hardness based on the penetration depth under load.
- Integrated probe and lightweight design
- Average value function and max data hold
- Automatic power-off and low battery indication
- Metric to imperial conversion
- Inbuilt software calibration
- Meets standards of DIN 53505, ISO 868, ISO 7619, ASTM D 2240, and JIS K7215
Shore A scale is used for testing soft elastomers (rubbers) and other soft polymers including:
- Soft vulcanized rubber
- Natural rubber
- Nitriles
- Thermoplastic elastomers
- Flexible polyacrylics and thermosets
- Wax, felt, and leathers
- Hardness values between 20 ~ 90A
- Main Unit
- Pin length test block (imitation block for indenter reference point measurement)
- Carrying case
- Manual
- PC interface
- Shore hardness tester measurement stand
- Rubber hardness test block (A/D type)
