NITYO NI – 3313 | 1/2″ PNEUMATIC PISTOL DRILL RPM 700

Code:

▪Planet gear mechanism sysem.
▪Low vibration design.
▪Low noise.
▪Lightweight parts but desgined for heavy duty applications.

Click to Expand

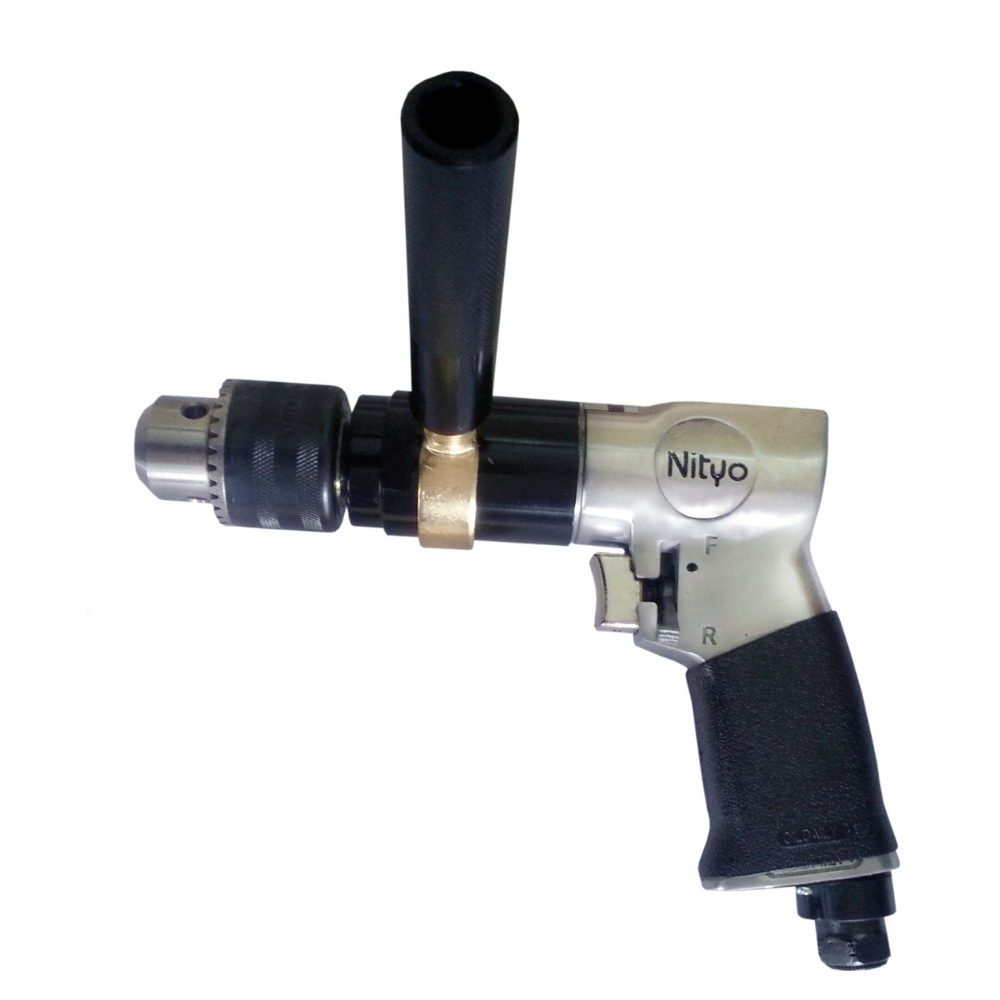

NITYO NI – 3313 | 1/2″ PNEUMATIC PISTOL DRILL RPM 700

Product Overview

The Nityo NI – 3313 is a heavy industrial pneumatic drill engineered for high-performance applications. It features a planetary gear mechanism system and is constructed with lightweight parts designed specifically for heavy-duty industrial operations.

Key Features & Capabilities

Heavy Industrial design
Power stability
Strong power with long performance life
Heat-treated internal parts for extended operational life
High and stable speed
Easy forward/reverse switch with single-handed operation
Planetary gear mechanism system
Low vibration design
Low noise output

Technical Specifications

Parameter	Specification
Chuck Size	13 mm (1/2″)
Free Speed	700 RPM
Gear Box	3 Gears
Weight	1.38 kg
Exhaust	Rear
Air Pressure	6.3 $\text{Kg/cm}^2$
Avg. Air Consumption	4 CFM
Air Inlet	1/4″ NPT
Length	210 mm
