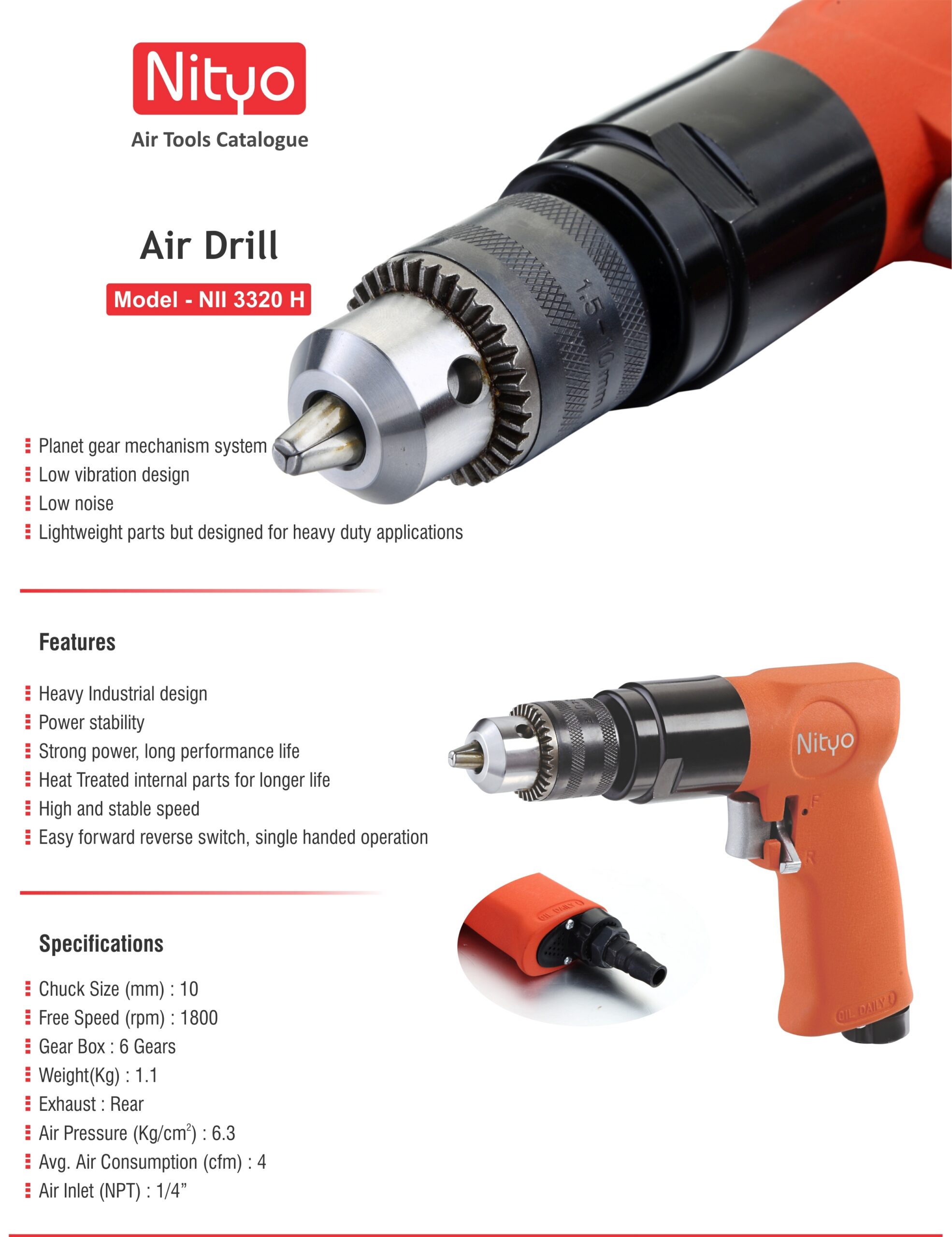

NITYO NI-3320H AIR DRILL | 3/8″ PNEUMATIC STRAIGHT DRILL – RPM 1800

Code:

▪Planet gear mechanism system
▪Low vibration design
▪Low noise
▪Lightweight parts but designed for heavy duty applications

Click to Expand

NITYO NI-3320H AIR DRILL | 3/8″ PNEUMATIC STRAIGHT DRILL – RPM 1800

Product Overview

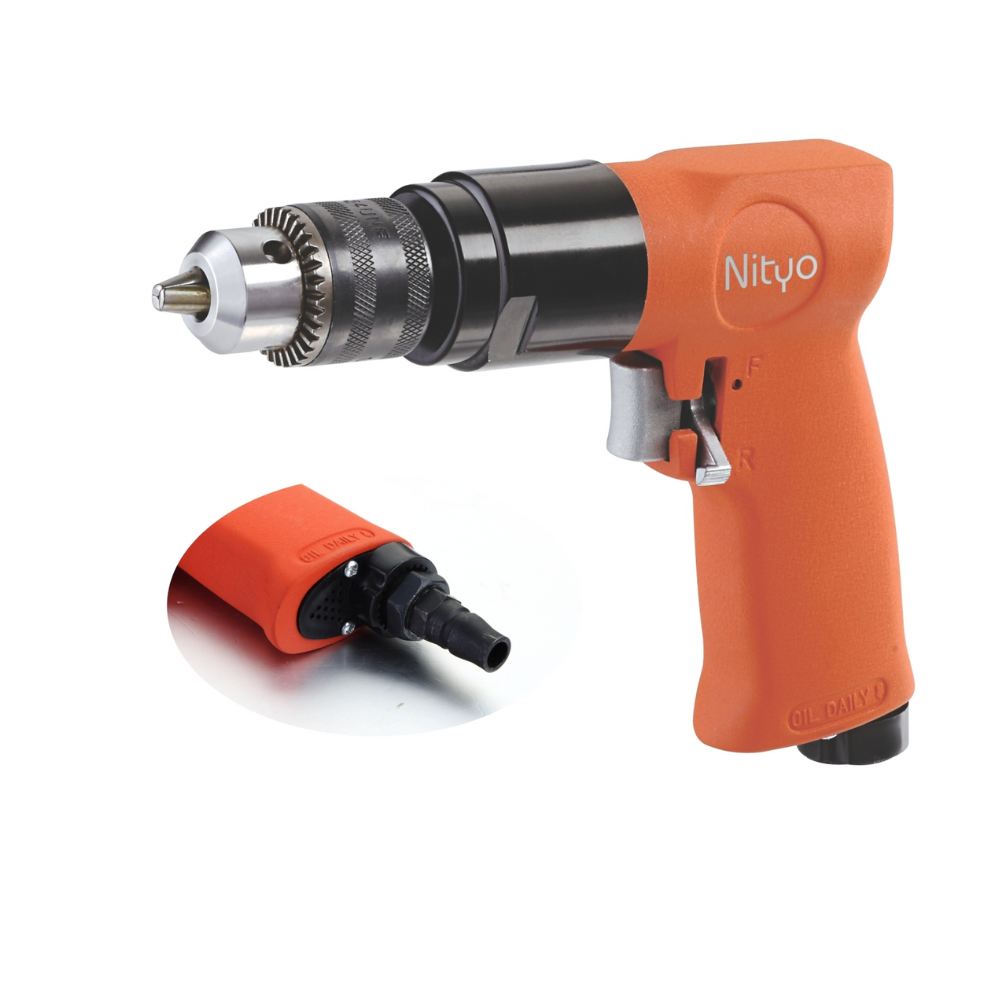

The Nityo NI-3320H is a heavy-duty pneumatic air drill engineered for industrial applications. Featuring a planet gear mechanism system, this tool is designed to deliver stable power and high operational speed while maintaining low vibration and low noise levels. Its lightweight construction incorporates heat-treated internal parts to ensure an extended performance life in demanding work environments.

Key Features & Capabilities

Heavy Industrial Design: Built for heavy-duty applications with lightweight parts.
Planet Gear Mechanism: Utilizes a planet gear system for high and stable speed.
Power Stability: Delivers strong power and long performance life.
Enhanced Durability: Equipped with heat-treated internal parts for extended operational longevity.
Operator Comfort: Features a low vibration design and low noise output.
Ergonomic Operation: Includes an easy forward/reverse switch designed for single-handed operation.
Exhaust System: Rear exhaust configuration.

Technical Specifications

Parameter	Specification

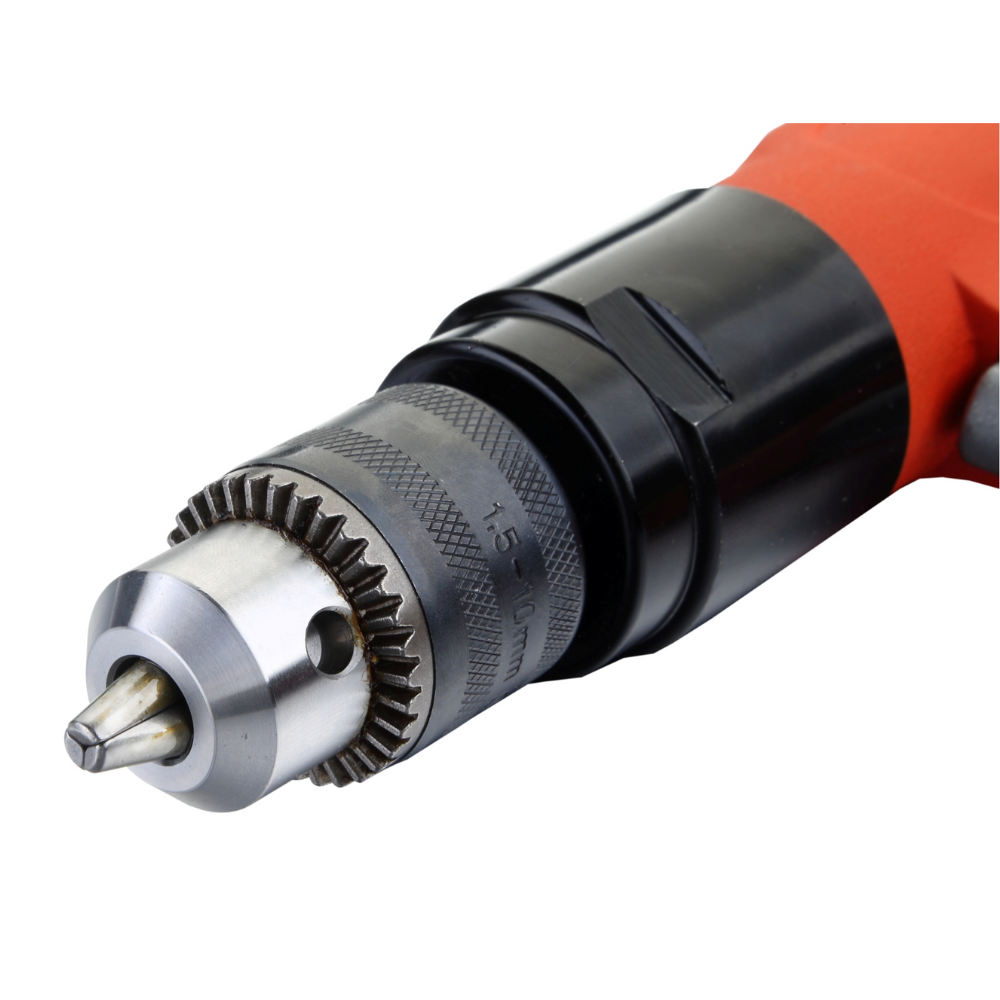

Chuck Size	10 mm (3/8″)
Free Speed	1800 rpm
Gear Box	6 Gears
Weight	1.1 kg
Exhaust	Rear
Air Pressure	6.3 $\text{Kg/cm}^2$
Avg. Air Consumption	4 cfm
Air Inlet (NPT)	1/4″
