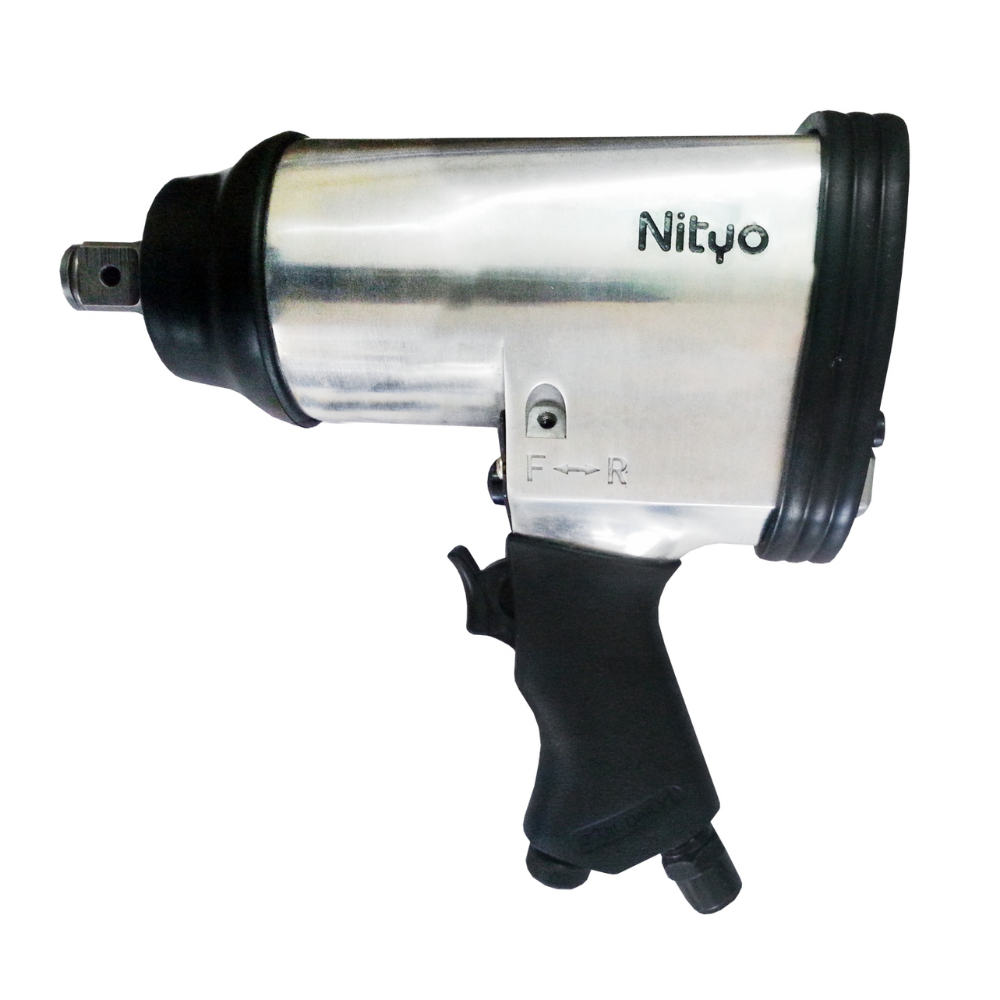

NITYO NI-7715 | 3/4″ IMPACT WRENCH RPM4800- MAX TORQUE 700NM

Code:

▪Available in standard anvil
▪Rocking dog mechanism, can keep high torque output
▪High torque applications
▪Lightweight parts but designed for heavy duty applications

Click to Expand

NITYO NI-7715 | 3/4″ IMPACT WRENCH RPM4800- MAX TORQUE 700NM

Product Overview

The NITYO NI-7715 is a 3/4" heavy-duty industrial impact wrench engineered with a rocking dog mechanism to maintain high torque output. Designed with lightweight components while retaining heavy-duty construction capabilities, this pneumatic tool is built for reliable performance in demanding mechanical and workshop environments.

Key Features & Capabilities

Heavy Industrial Design: Engineered for rigorous industrial applications with durable construction.
Rocking Dog Mechanism: Delivers steady, high torque output during operation.
Application Range: Suitable for high torque applications as well as widely used for low torque applications.
Ergonomic Build: Utilizes lightweight parts while maintaining heavy-duty durability.
Standard Anvil: Features a standard anvil configuration.

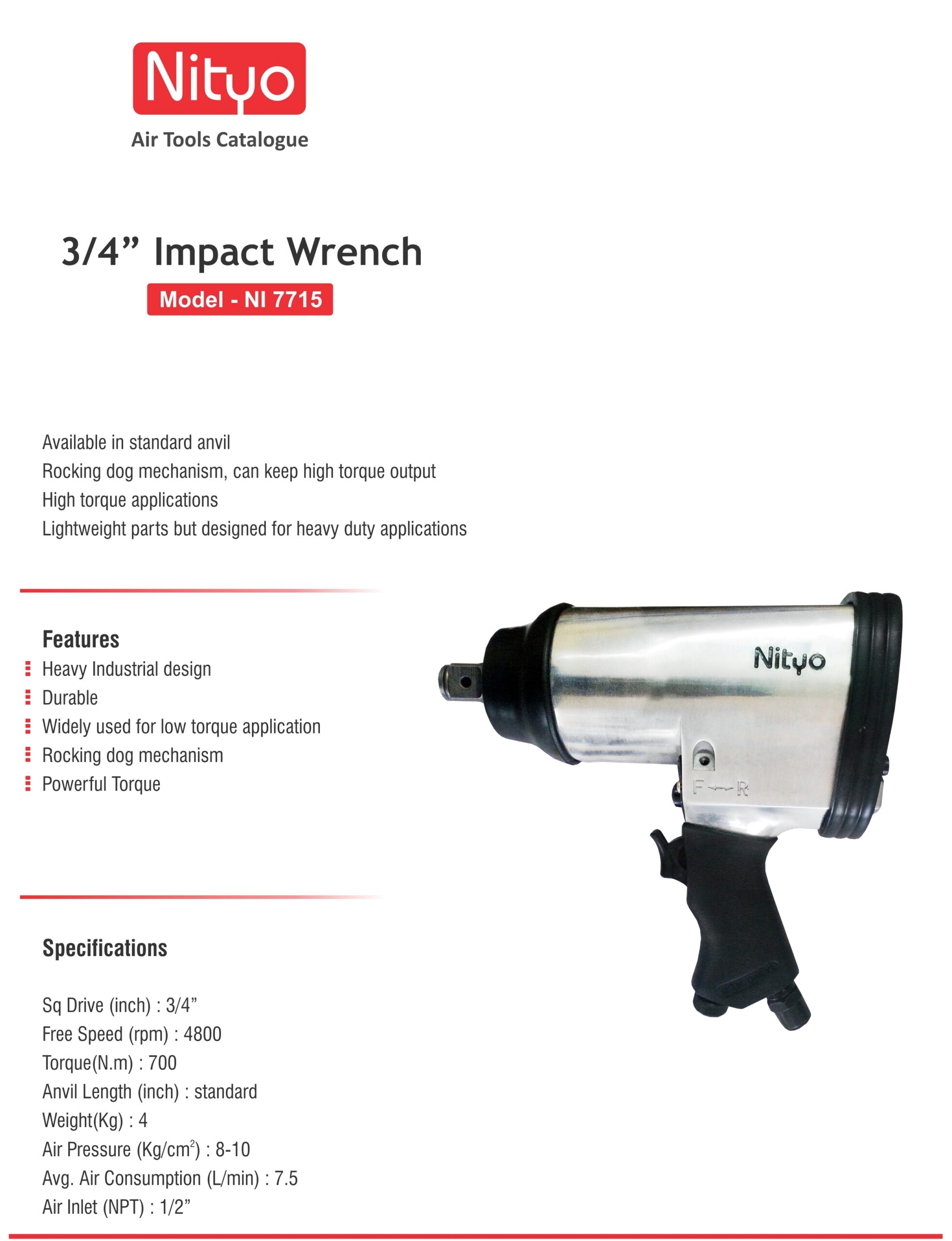

Technical Specifications

Parameter	Specification
Square Drive (inch)	3/4"
Free Speed (rpm)	4800
Torque (N.m)	700
Anvil Length (inch)	standard
Weight (Kg)	4
Air Pressure (Kg/cm²)	8–10
Avg. Air Consumption (L/min)	7.5
Air Inlet (NPT)	1/2"
