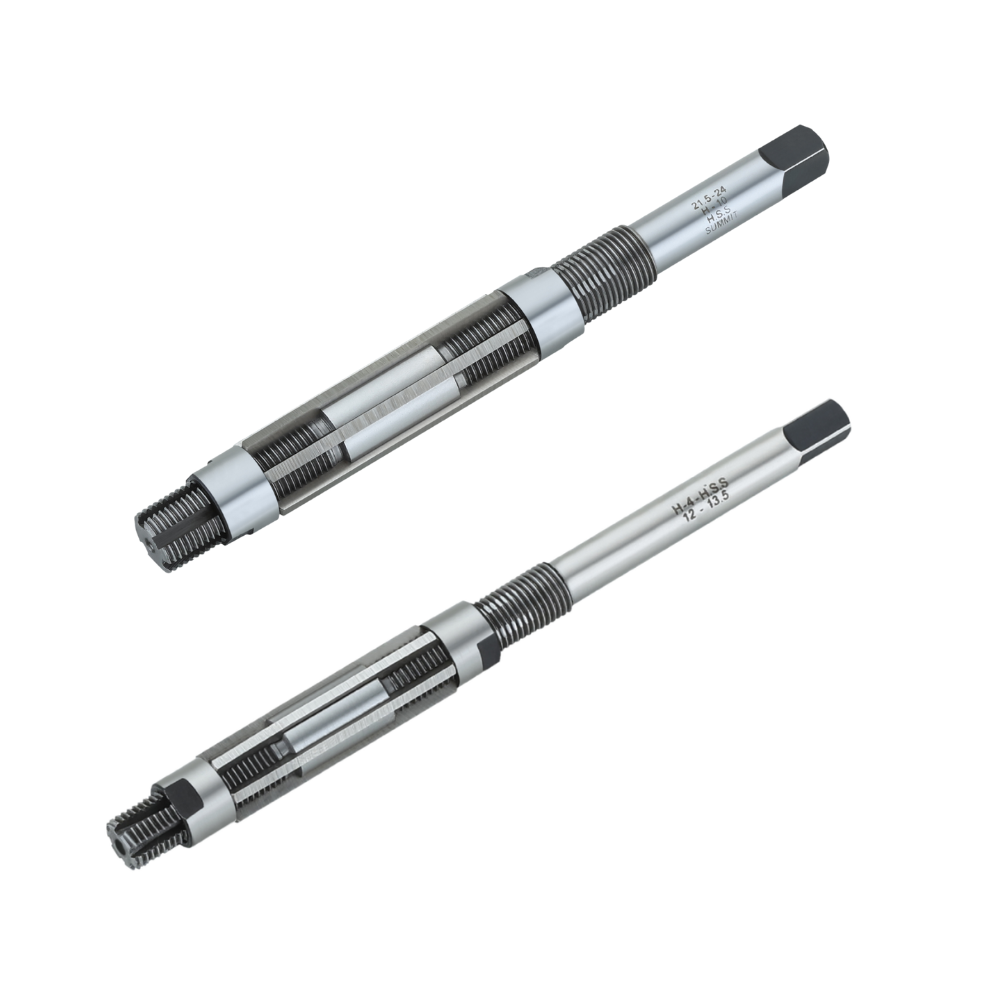

SUMMIT ADJUSTABLE HAND REAMER

Name: SUMMIT ADJUSTABLE HAND REAMER
Brand: SUMMIT
SKU: H-1

Code:

The Summit Adjustable Hand Reamer is a precision cutting tool used for enlarging, finishing, and sizing pre-drilled holes with high accuracy. It features an expandable blade design, allowing the tool to cover a small range of diameters, making it highly versatile for workshop use.

BUY NOW DOWNLOAD CATALOG

f in

Click to Expand

SUMMIT ADJUSTABLE HAND REAMER

The Summit Adjustable Hand Reamer is a precision-engineered tool designed for the accurate sizing and finishing of pre-drilled holes. Featuring an expandable blade design, this tool allows for precise diameter adjustments, providing versatility for various machining and repair requirements.

Key Features & Capabilities

Adjustable Design: Enables precise diameter control within a specified range, reducing the need for multiple fixed-size reamers.
Precision Construction: Manufactured to high standards to ensure consistent hole sizing and alignment.
Material Options: Available in both Carbon Steel (CS) and High-Speed Steel (HSS) configurations to suit different operational requirements.
Versatile Range: The series covers a comprehensive range of hole diameters from 1/4" (6.35 mm) up to 3 11/32" (84.93 mm).

Technical Specifications

Size	Range (Inch)	Range (mm)	CS Part No.	HSS Part No.
H-V	1/4 - 9/32	6.35 - 7.14	CRHV	SRHV
H-W	9/32 - 5/16	7.14 - 7.93	CRHW	SRHW
H-Z	5/16 - 11/32	7.93 - 8.74	CRHZ	SRHZ
H-Y	11/32 - 3/8	8.74 - 9.52	CRHY	SRHY
H-1	3/8 - 13/32	9.52 - 10.31	CARH1	SARH1
H-2	13/32 - 7/16	10.31 - 11.10	CARH2	SARH2
H-3	7/16 - 15/32	11.10 - 11.90	CARH3	SARH3
H-4	15/32 - 17/32	11.90 - 13.49	CARH4	SARH4
H-5	17/32 - 19/32	13.49 - 15.08	CARH5	SARH5
H-6	19/32 - 21/32	15.08 - 16.66	CARH6	SARH6
H-7	21/32 - 23/32	16.66 - 18.25	CARH7	SARH7
H-8	23/32 - 25/32	18.25 - 19.84	CARH8	SARH8
H-9	25/32 - 27/32	19.84 - 21.43	CARH9	SARH9
H-10	27/32 - 15/16	21.43 - 23.81	CARH10	SARH10
H-11	15/16 - 1 1/16	23.81 - 26.98	CARH11	SARH11
H-12	1 1/16 - 1 3/16	26.98 - 30.16	CARH12	SARH12
H-13	1 3/16 - 1 1/32	30.16 - 34.13	CARH13	SARH13
H-14	1 1/32 - 1 1/2	34.13 - 38.10	CARH14	SARH14
H-15	1 1/2 - 1 13/16	38.10 - 46.03	CARH15	SARH15
H-16	1 13/16 - 2 7/32	46.03 - 56.35	CARH16	SARH16
H-17	2 7/32 - 2 3/4	56.35 - 69.85	CARH17	SARH17
H-18	2 3/4 - 3 11/32	69.85 - 84.93	CARH18	SARH18
