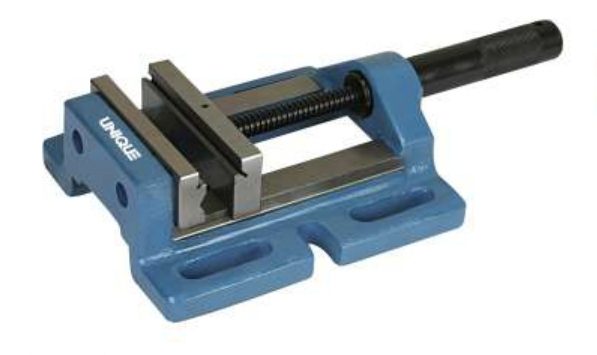

UNIQUE 3 WAY PRECISION VICE – CODE U3307 P

Code:

▪3 Way Precision Drill Vice
▪With Three Mounting Options

Click to Expand

UNIQUE 3 WAY PRECISION VICE – CODE U3307 P

Product Overview

The Unique 3 Way Precision Drill Vice (Code U3307 P) is a specialized workholding solution engineered for versatility in machining environments. Designed with three distinct mounting options, this vice provides high-precision clamping for various drilling and machining operations.

Key Features & Capabilities

Multi-Axis Mounting: Features three machined mounting faces, each equipped with clamping slots to facilitate three-way mounting configurations.
Precision Construction: Engineered for high-accuracy workholding requirements.
Versatile Clamping: Designed to accommodate diverse workpiece geometries through its precision-machined design.

Technical Specifications

Parameter	3 Inch Model	4 Inch Model
Width of jaws (mm)	75	100
Opening of jaws (mm)	80	100
Depth of jaws (mm)	30	30
Height Overall (mm)	60	60
Width Overall (mm)	145	160
Length Overall (mm)	211	285
Slot Size (mm)	13	14
Jaw Slot (mm)	8	8
Weight (Approx. in kgs)	3	4.5
