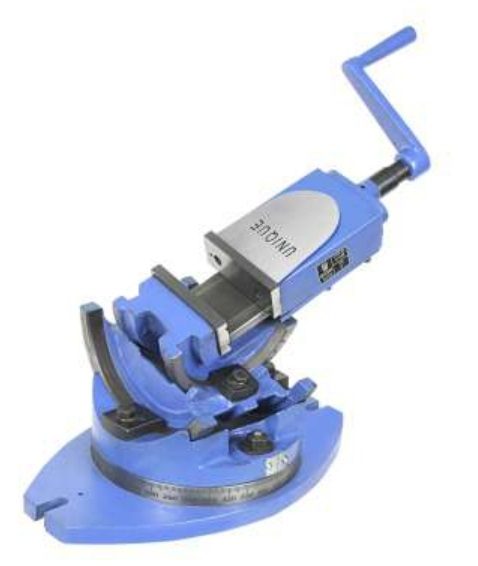

UNIQUE 3 WAY UNIVERSAL TILT & SWIVEL ANGLE VISE- CODE U330

Fitted with Thrust Bearing for Smooth Movement.
Body is made of grey cast iron.
High quality ACME steel screw.
Hardened & accurately ground jaws provided with ‘V’ groove .
This vice can'set up at any angle with positive locking.
Upper angle base can incline from the horizontal position to the vertical position.
The lower angle setting base can incline up to 45º in both right & left directions.
The entire unit may be swivelled on a base plate through 360º
Quick alignment to machines through longitudinal slot provided in base.
Crank handle is made of unbreakable steel provided with a spring loaded mechanism providing positive grip.
Supplied with Stopper for Fast Production.

Download Catalog

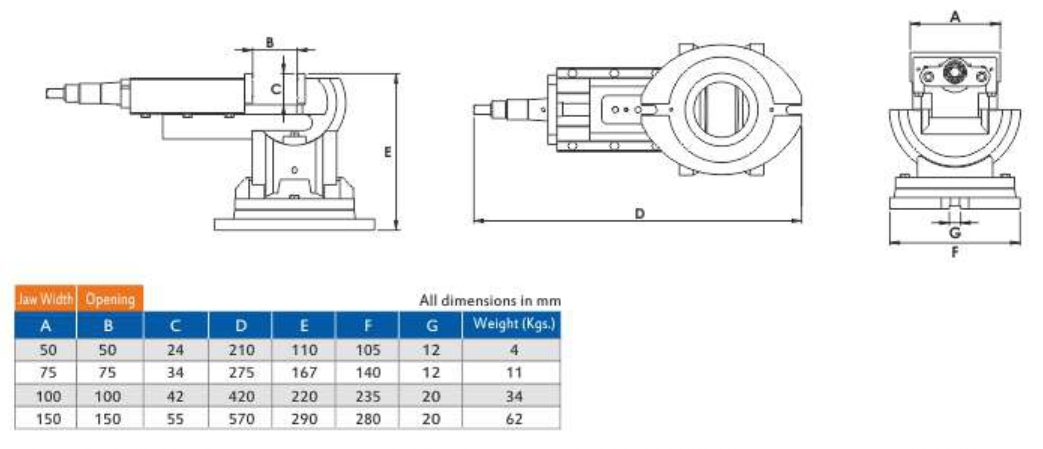

A	B	C	D	E	F	G	WEIGHT (kgs).
JAW WIDTH	OPENINGS
50	50	24	210	110	105	12	4
75	75	34	275	167	140	12	11
100	100	42	420	220	235	20	34
150	150	55	570	290	280	20	62

Features

Vise can be set up at any angle with positive locking.
Vise body is made from high strength graded cast iron for toughness and rigidity.

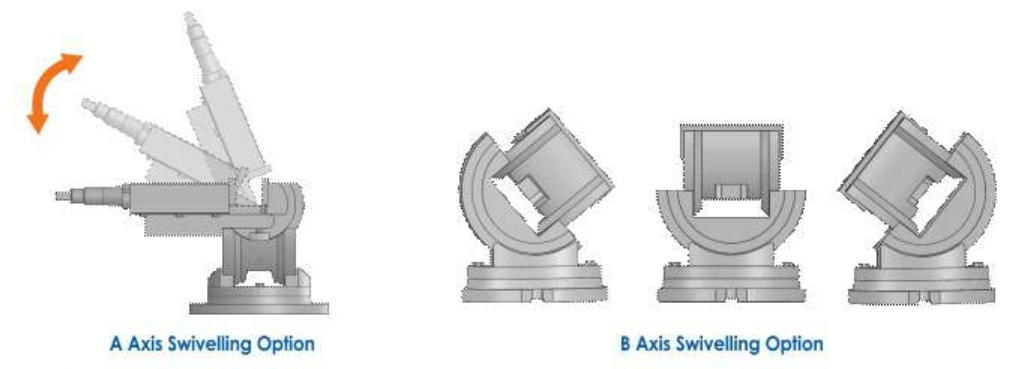

Topmost angled base allows for the workpiece to be held at any angle between and including 0° and 90° in the A axis.
The middle base can be inclined at any angle between and including positive and negative 45° in the B axis, while being perpendicular to the swivel movement of the topmost base.
The entire unit can be swivelled on a swivel base, which is fully graduated through 360°.
Hardened and precision ground jaws with ‘V’ grooves.
Quick alignment to machine table through longitudinal slot provided in the swivel base.
Crank handle is made of unbreakable steel and consists of a spring loaded ball mechanism to provide a positive grip during operations.
