UNIQUE COMPACT PRECISION MULTI VISE – CODE U2424 COMPACT

UNIQUE COMPACT PRECISION MULTI VISE – CODE U2424 COMPACT

Product Overview

The Unique Compact Precision Multi Vise (Code U2424 Compact) is a high-precision workholding solution designed for versatility and efficiency in machining environments. Featuring serrated/plain guide ways, this system is engineered to maximize machine table capacity and can be configured in serial or parallel arrangements using alignment keys to accommodate various workpiece sizes.

Key Features & Capabilities

• Modular Configuration: Not limited by the size of the base slide; units can be paired in serial or parallel order.
• Multi-Workpiece Holding: Capable of holding multiple workpieces simultaneously to reduce tool changeover times.
• High-Precision Construction: Manufactured from high-quality alloy steel, case hardened up to HRC 60 ± 2.
• Accuracy: Provides positioning and alignment accuracy within ± 0.02mm/100mm.
• Repeatability: Fixturing set-up is supported by a high-accuracy rail system.

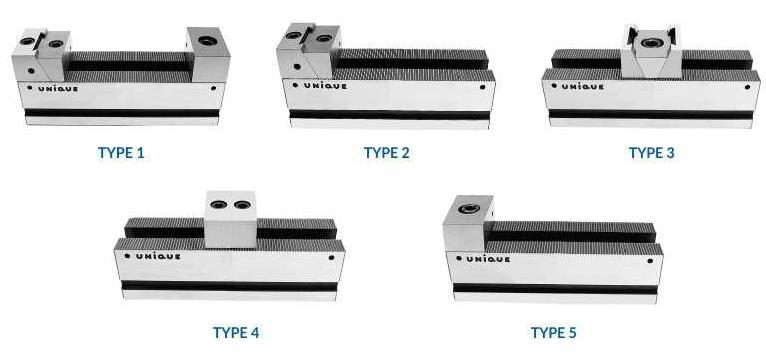

• Versatile Jaw Options: Compatible with V-Type, Serrated, and Horizontal V-Type jaws.

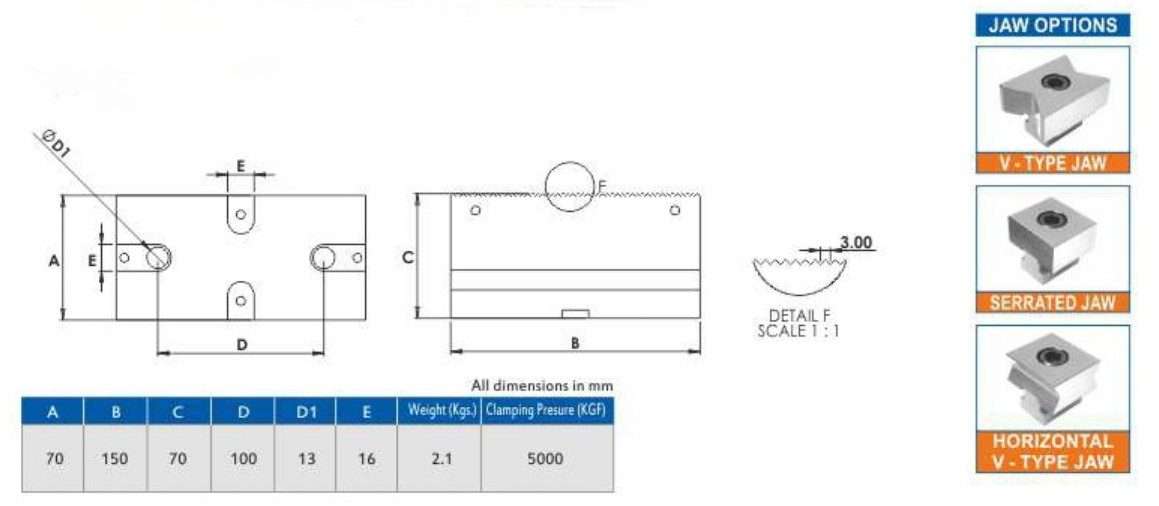

Technical Specifications
