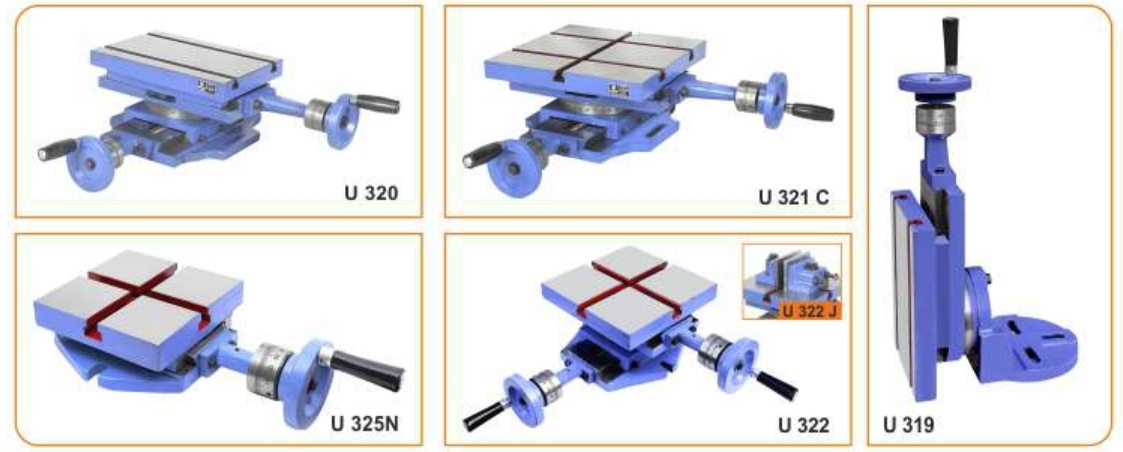

UNIQUE COMPOND SLIDING TABLES CODE - U320, U321, U321C & U325N

Code No.	U320		U321C		U321	U321C				U318N / U325N		U321
Sizes in Inch	12×8	12×6	12×12	16X16	12×20	4×4	6×6	8×8	10×10	6×6	8×8	7×10
Table Size in mm	300×200	300×150	300×300	400×400	300×500	100×100	150×150	200×200	250×250	150×150	200×200	175×250
Height in mm	150	150	150	170	165	105	120	130	130	60	65	270
Length Overall in mm	460	460	460	620	680	160	275	300	350	260	295	465
T. Slot Size in mm	13	13	13	16	16	13	13	13	13	13	13	13
Travel Bothways in mm	225	225	225	300	430, 310	65	105	125	125	105	125	180
Width of Jaws in mm	–	–	–	–	–	–	–	–	–	One way	One way	–
Depth of Jaws in mm	–	–	–	–	–	–	–	–	–	–	–	–
Calibration	90º	90º	90º	90º	90º	90º	90º	90º	90º	–	–	180º
Wheels graduation	0.05	0.05	0.05	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.05
Weight Approx. in kgs	40	36	44	80	103	7	14	20	24	8	12	23.5

Features

Unique Precision Compound Sliding Tables are meant for accurate boring, drilling grinding and milling operations.
Grey iron casting properly machined and grinded with a Unique process provides accuracy well within 0.01mm/100mm tolerance.
Toughened lead screw having acme threads running smoothly in phosphorus Bronze Nut.
Dovetail slides have adjustable steel ribs for smooth running and adjustment.
