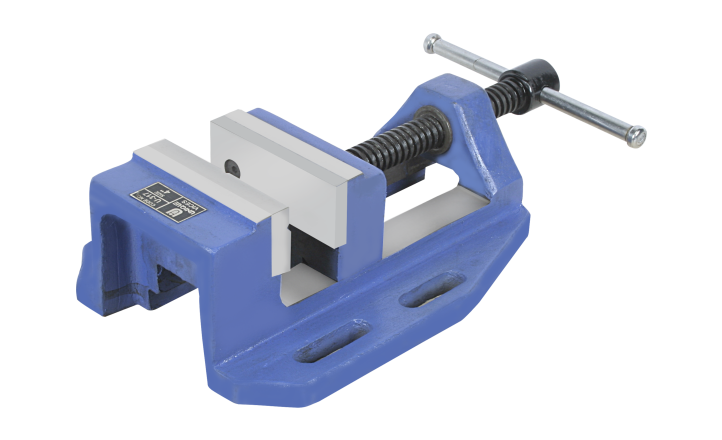

UNIQUE DRILL PRESS VICE – CODE U317

Code:

▪Body close grain cast Iron.
▪Special steel ground jaws provided with "V" groove for holding round jobs.
▪Lead screw of special steel is provided.
▪Four"T" slots are provided on the both sides for rigid grip on drilling machine.

Click to Expand

UNIQUE DRILL PRESS VICE – CODE U317

Product Overview

The Unique Drill Press Vice (Code U317) is a precision-engineered workholding solution designed for secure clamping on drilling machines. Constructed from high-quality close-grain cast iron, this vice is built for durability and stability in industrial environments. It features specialized ground jaws and a robust lead screw mechanism to ensure reliable performance during drilling operations.

Key Features & Capabilities

Material Construction: Body manufactured from high-grade close-grain cast iron.
Precision Jaws: Equipped with special steel ground jaws featuring a "V" groove, specifically designed for the secure holding of round workpieces.
Lead Screw: Integrated lead screw manufactured from special steel for smooth and reliable operation.
Mounting Versatility: Features four "T" slots located on both sides of the base to provide a rigid, secure grip on drilling machine tables.

Technical Specifications

Parameter	3" Model	4" Model	6" Model
Width of jaws (mm)	80	100	150
Depth of jaws (mm)	45	60	60
Opening of jaws (mm)	75	115	155
Height overall (mm)	70	85	100
Length overall (mm)	230	275	155
Width overall (mm)	145	185	245
Slot size (mm)	10	13	13
Weight (Approx.) (kg)	4.5	8	15.5
