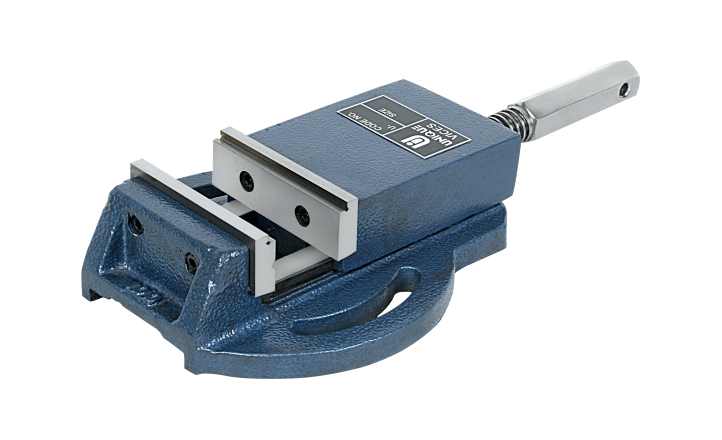

UNIQUE DRILL PRESS VICE – CODE U324

Code:

▪Body made from graded cast iron.
▪Hardened & ground Jaws provided with "v" grooves for holding round Jobs both horizontally & vertically.
▪Circular slots which can be adjusted for accurate positioning of the vise.

Click to Expand

UNIQUE DRILL PRESS VICE – CODE U324

Product Overview

The Unique Drill Press Vice (Code U324) is a precision-engineered workholding solution designed for accurate positioning on drilling machinery. The unit features a robust body constructed from graded cast iron, ensuring durability and stability during operation.

Key Features & Capabilities

Material Construction: Body manufactured from high-quality graded cast iron.
Precision Jaws: Equipped with hardened and ground jaws.
Versatile Workholding: Jaws feature "V" grooves, allowing for the secure holding of round workpieces in both horizontal and vertical orientations.
Adjustable Positioning: Integrated circular slots allow for precise adjustment and alignment of the vice on the machine table.

Technical Specifications

Parameter	2-1/2"	3"	4"	5"	6"
Width of jaws (mm)	60	80	100	120	150
Opening of Jaws (mm)	60	80	100	145	190
Depth of Jaws (mm)	24	28	35	40	50
Height Overall (mm)	48	55	64	80	105
Width overall (mm)	135	156	200	225	265
Length overall (mm)	250	285	340	415	465
Weight (Approx. in kgs)	2.4	3.7	7	13	22.5
Tenon slot (mm)	10	10	13	13	13
