UNIQUE INDEXING MILLING FIXTURE HORIZONTAL & VERTICAL CODE – U1335

Code:

▪Indexing Milling Fixture Horizontal & Vertical
▪With Chuck & Tail Stock

Click to Expand

UNIQUE INDEXING MILLING FIXTURE HORIZONTAL & VERTICAL CODE – U1335

Product Overview

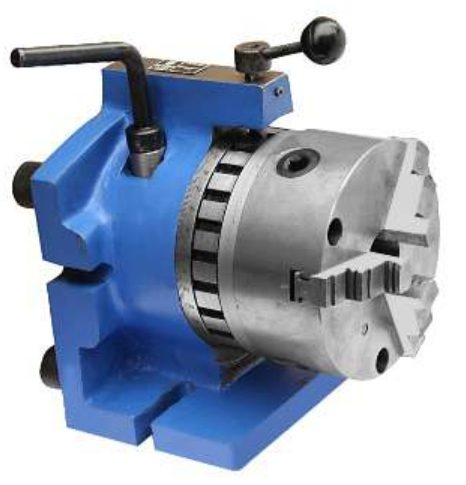

The Unique Indexing Milling Fixture (Code U1335) is a precision-engineered tool designed for both horizontal and vertical milling operations. This fixture is engineered to provide rapid, accurate indexing and is available in five model configurations (IMF H/V 080 through IMF H/V 200). The unit features a 3-jaw chuck and is compatible with an optional tail stock for enhanced support during machining.

Key Features & Capabilities

Versatile Orientation: Designed for both horizontal and vertical indexed milling operations.
Precision Indexing: Equipped with 24 standard indexing positions and a graduated collar with a 1° least count for precise degree indexing.
Robust Construction: Movable parts are hardened and ground to ensure superior wear resistance.
Smooth Operation: Integrated ball bearings and taper roller bearings facilitate accurate and easy rotation.

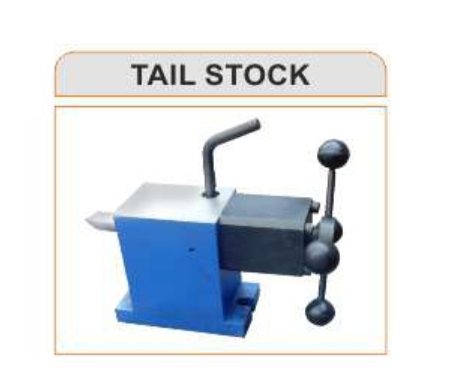

Enhanced Stability: Includes a tail stock with a lead screw for fine-tuning the center on long workpieces.
Surface Grinding Compatibility: Suitable for use in surface grinding applications.
Efficiency: Provides faster clamping and rapid indexing compared to conventional dividing heads or rotary tables.

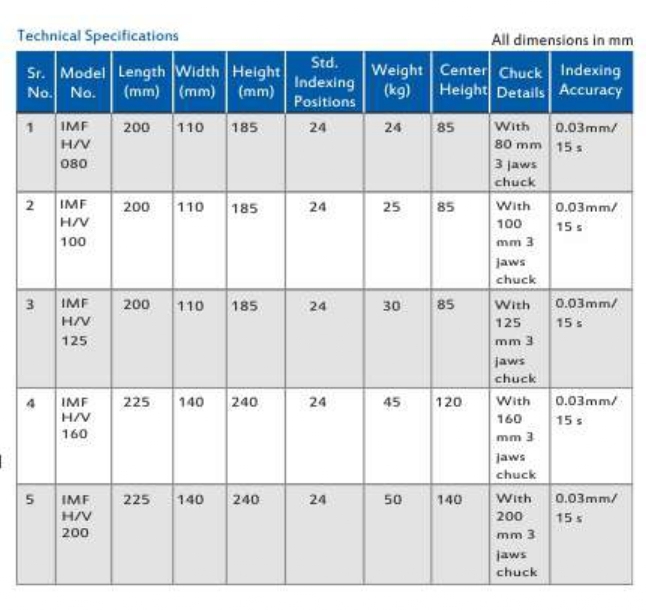

Technical Specifications

Model No.	Length (mm)	Width (mm)	Height (mm)	Std. Indexing Positions	Weight (kg)	Center Height	Chuck Details	Indexing Accuracy
IMF H/V 080	200	110	185	24	24	85	80 mm 3 jaws	0.03mm/15 s
IMF H/V 100	200	110	185	24	25	85	100 mm 3 jaws	0.03mm/15 s
IMF H/V 125	200	110	185	24	30	85	125 mm 3 jaws	0.03mm/15 s
IMF H/V 160	225	140	240	24	45	120	160 mm 3 jaws	0.03mm/15 s
IMF H/V 200	225	140	240	24	50	140	200 mm 3 jaws	0.03mm/15 s
