The Unique Milling Machine Vise (Code U310) is a precision-engineered workholding solution designed for milling operations. This vise features a versatile design that allows for conversion between a swivel base and a fixed base configuration. It is constructed from high-strength graded cast iron to ensure structural toughness and rigidity during heavy-duty machining.
- Construction: Vise body manufactured from high-strength graded cast iron for enhanced durability and rigidity.
- Precision Movement: Fitted with a thrust bearing to facilitate smooth operation and reduce operator fatigue.
- Clamping Mechanism: Equipped with a fine acme thread lead screw for precise adjustment.
- Jaw Design: Jaws are manufactured from special steel, hardened and ground. The fixed jaw includes vertical and horizontal 'V' grooves to securely hold round workpieces.
- Quick Alignment: Features longitudinal slots in both the vise body and the swivel base for rapid alignment to the machine table.
- Crank Handle: Constructed from unbreakable steel with a spring-loaded ball mechanism to ensure a positive grip.

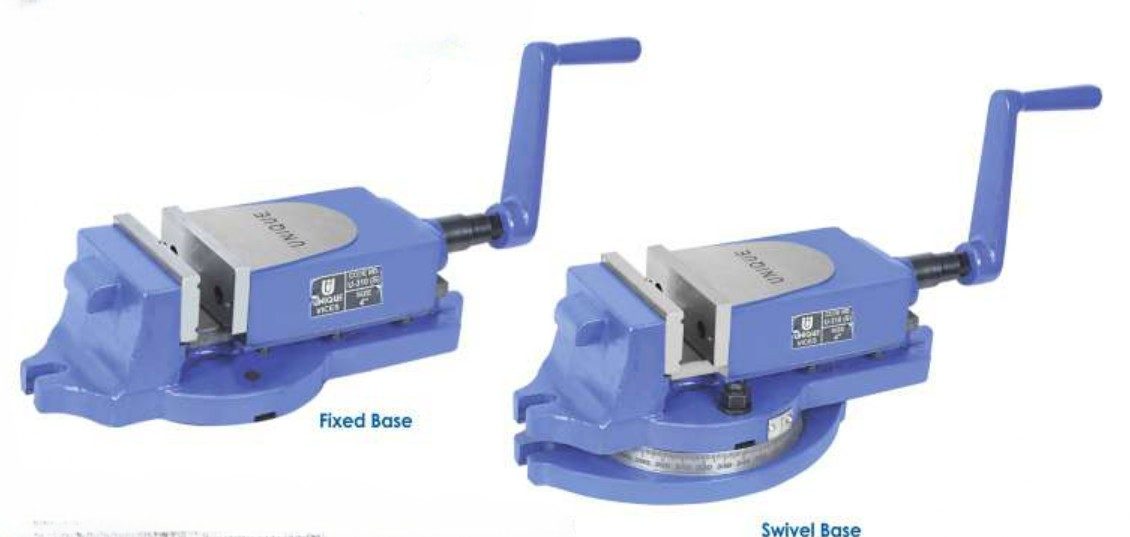

- Versatility: The unit can be converted from a swivel base to a fixed base by removing the swivel base component.
- Optional: Also available in high-quality FCD 60 vise body material.
All dimensions are provided in millimeters (mm).
