UNIQUE MODULAR PRECISION MACHINE VISE -CODE U3333

Code:

▪Unique Modular Precision Machine Vise with optional Swivel Base
▪Hardness HRC 60 ± 2

Click to Expand

UNIQUE MODULAR PRECISION MACHINE VISE - CODE U3333

Product Overview

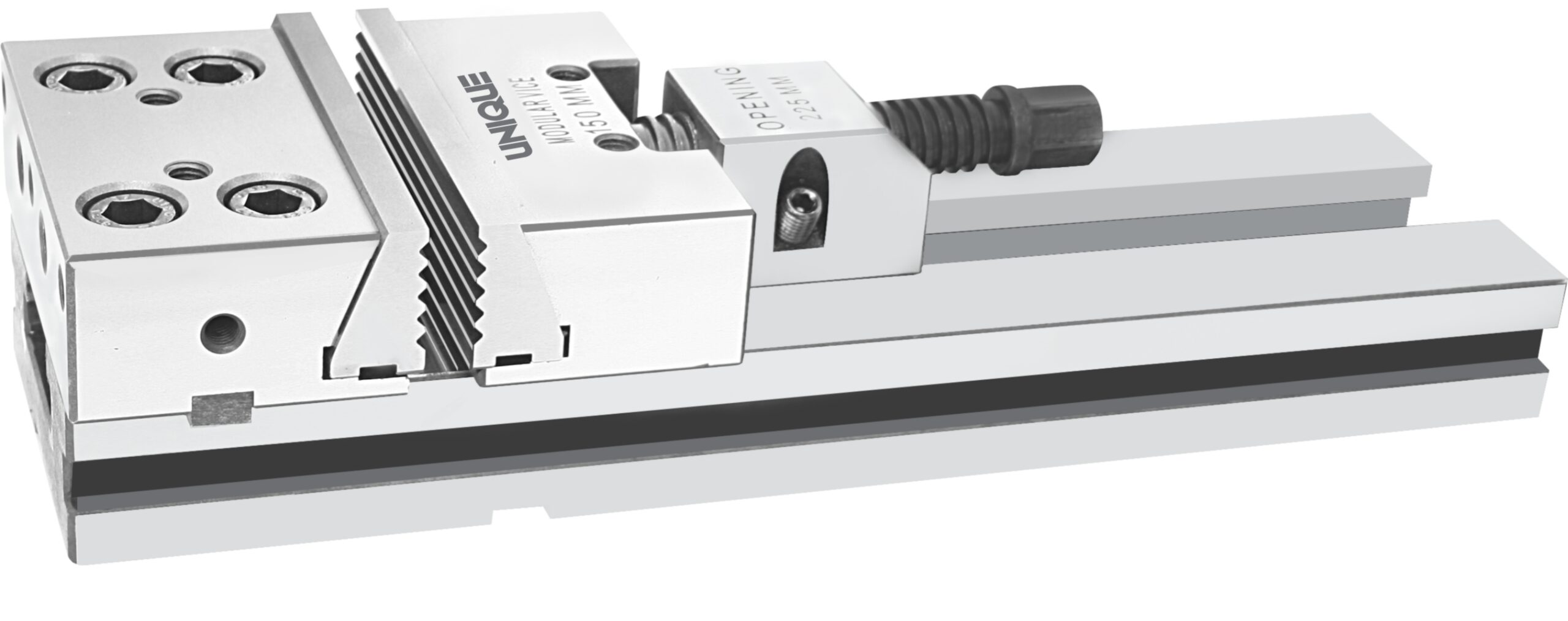

The Unique Modular Precision Machine Vise (Code U3333) is a high-performance workholding solution engineered for precision machining. Designed with a low-profile, anti-lift configuration, this vise is constructed from high-grade alloy steel that is stabilized and hardened to ensure maximum rigidity and wear resistance. The system features a hammer-less design with pull-down angle jaw plates to ensure secure, rigid clamping of workpieces. The vise is available with an optional swivel base and is supplied with a stopper for high-efficiency production environments.

Key Features & Capabilities

Precision Engineering: Accuracy in squareness maintained at ± 0.01/100 mm.
Material Integrity: Manufactured from high-grade alloy steel; all parts are case hardened to HRC 60 ± 2.
Anti-Lift Design: Low-profile construction prevents workpiece lifting during operation.
Pull-Down Clamping: Both jaw plates utilize a pull-down angle to secure the workpiece firmly against the vise bed or parallels.
Modular Versatility: Consistent bed height allows for multiple units to be used in series for holding longer workpieces.
Production Ready: Includes a stopper for rapid, repeatable setup in fast-production environments.

Technical Specifications

Jaw Width (A)	Opening (B)	C	D	E	F	G	H	I	J	J1	Weight (Kgs)	Clamping Pressure (KGF)
100	130	40	325	71	102	45	16	90	100	13	14	2500
125	175	40	375	90	125	50	16	100	100	13	17	3000
150	225	50	450	98	150	50	16	125	100	13	29	3500
150	300	50	525	98	150	50	16	125	100	13	31	3500
200	300	60	555	118	203	57	16	175	100	13	53	4000
200	400	60	655	118	203	57	16	175	100	13	58	4000
