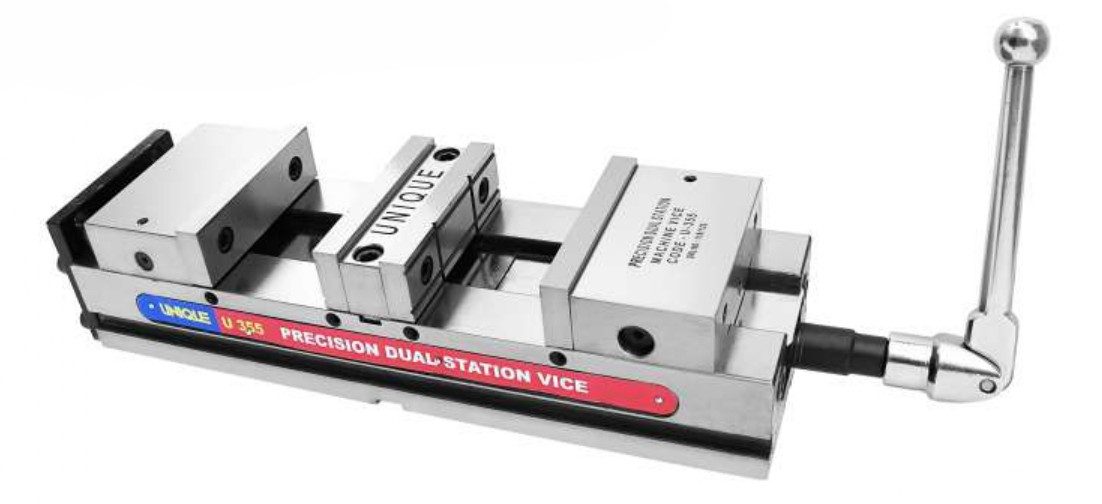

UNIQUE PRECISION DUAL STATION VISE – CODE U355

  • Two different / same sized workpieces making fast production of parts possible.
  • Clamping force equalization mechanism ensures that both workpieces are clamped with equal force.
  • High quality FCD 60 vise body. Both the vise bed and the Jaw plates are hardened and precision ground.
  • Fixed Center jaw has a machined keyway with H7 tolerance for accurate alignment.

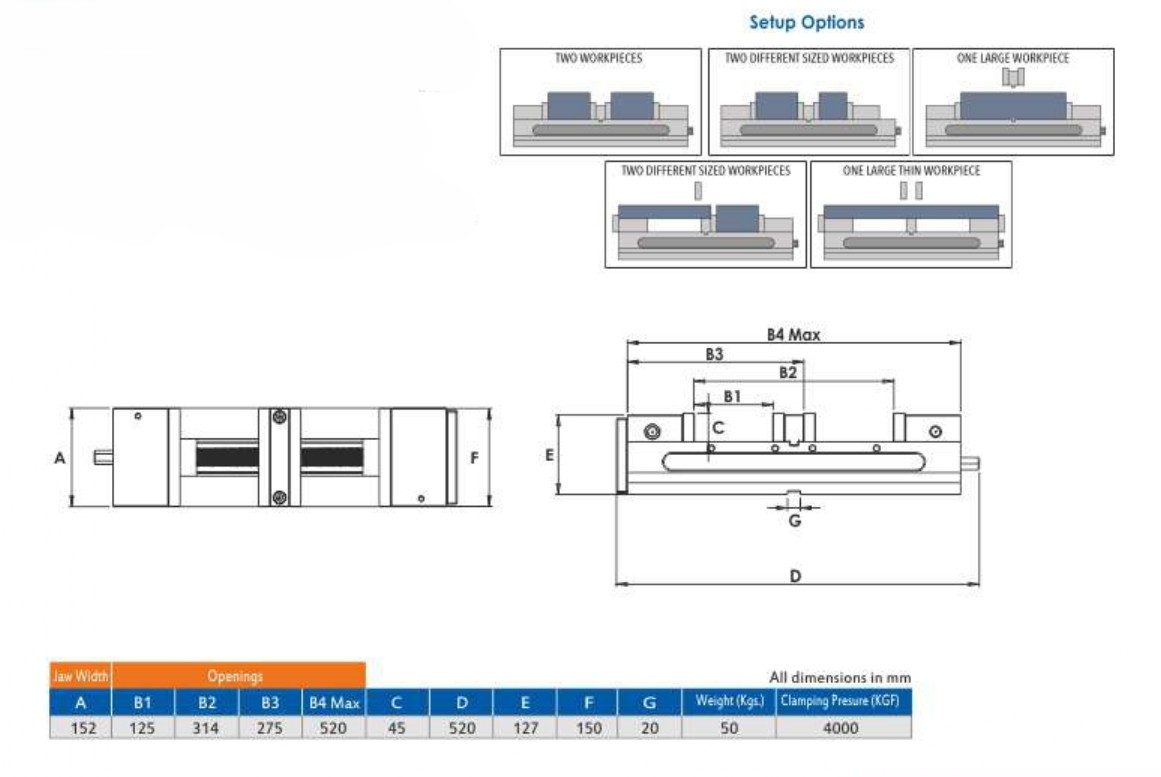

  • 5 Different clamping configurations possible, as shown in Setup Options
  • Accuracy in squareness in within + 0.02mm / 100 mm.
JAW WIDTH OPENINGS
A B1 B2 B3 B4 MAX C D E F G WEIGHT(kgs) CLAMPING PRESSURE (KGF)
152 125 314 275 520 45 520 127 150 20 50 4000

Features

  • Rigid Material Vise Body of Ductile Iron.
  • Clamping force equalization same force to two workpieces in different size.
  • Anti-lift mechanism ensure the workpiece does not lift during operation
  • Double clamp makes different size of workpieces can be clamped at the same time on vice.
  • Can be mounted Horizontally or Vertically.
  • One Handle operate the two Moveable Jaws.
  • Fixed Center Jaw has a Machined Keyway for Accurate Alignment and Setup.
  • 5 Different Workpeice Clamping Applications.
  • Accuracy in Squareness within 0.02/100MM.
