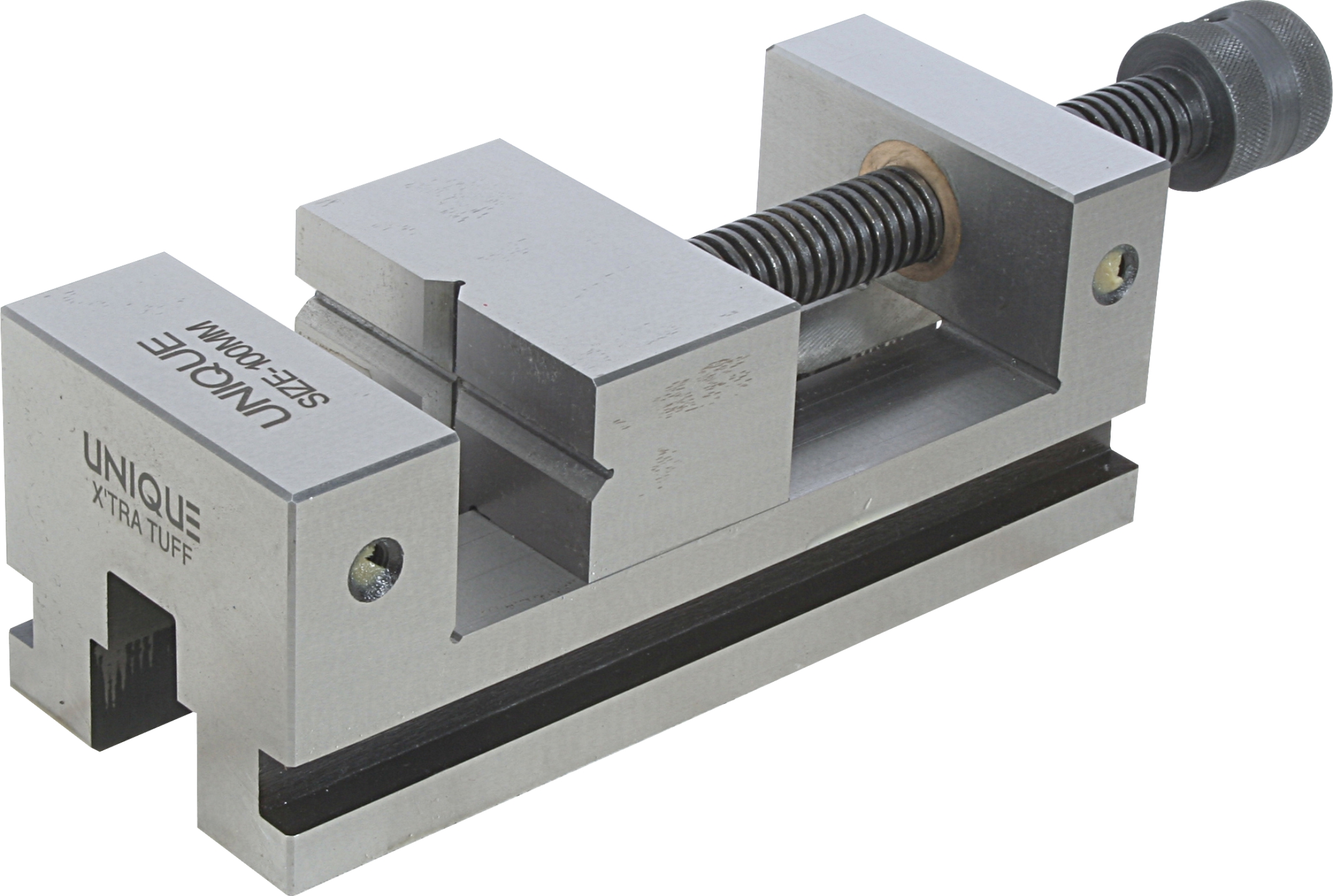

UNIQUE PRECISION GRINDING VISE – CODE U422

  • Precision Grinding Vice
Download Catalog

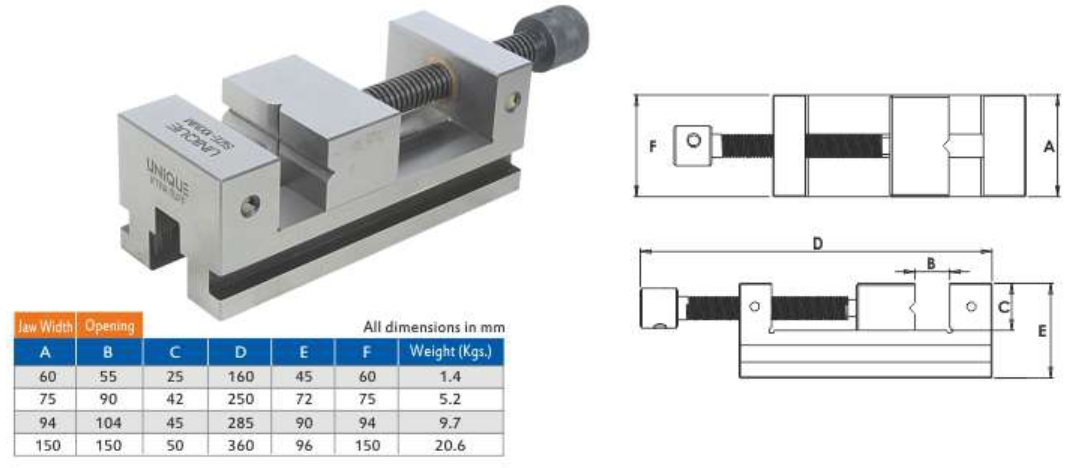

JAW WIDTH OPENING
A B C D E F WEIGHT (kgs.)
60 55 25 160 45 60 1.4
75 90 42 250 72 75 5.2
94 104 45 285 90 94 5.2
150 150 50 360 96 150 20.3

Features

  • Vise body &jaws are made of Tool Steel & are hardened, tempered & precision ground.
  • All sides parallelism & squareness is well within + 0.01mm / 100mm.
