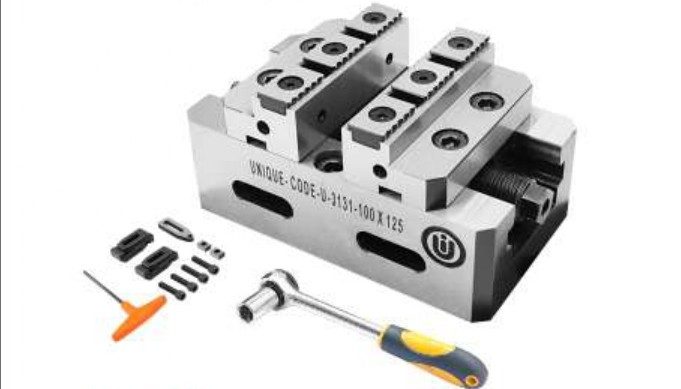

UNIQUE PRECISION SELF CENTERING 5 AXIS VISE

A	B1	B2	B3	B4	C1	C2	D	E	F	G	H	I	J	K	L	M	N	O	P	WIGHT (KGS)	CLAMPING PRESSURE (KGF)
JAW WIDTH	OPENING
50	50	45	80	75	22	14	130	70	75	45	12	15	15	60	30	55	9	3	52	2.7	2000
75	65	60	105	100	25	14	160	73	75	45	12	15	15	60	30	55	9	3	52	3.6	2500
100	80	75	130	125	30	12	185	90	100	57	16	19	15	100	50	80	11	3	52	7.8	3000
125	130	125	180	175	30	12	235	90	125	57	16	19	15	100	50	100	13	3	96	11.8	3000
150	155	150	205	200	30	12	265	90	150	57	16	19	15	150	75	125	13	3	96	13.4	3000

Features

Small body size is well suited for most rotary tables & machining centers.
The low profile body provides a large machining area & good tool accessibility.
Repeating center accuracy is ± 0.02mm.
Accuracy in squareness ± 0.01 / 100 mm.
Tool accessibility can be increased by using this vise with height riser block (U3131 RB).
Lock tight system to prevent floating of the clamped work piece, for better efficiency.
High quality alloy steeli case hardened to HRC 60 ± 2.
Gripping the workpiece with minimum gripping length provides the ability to machine from 5 sides.
Unique design facilitates effective evacuation of chips & coolant.
