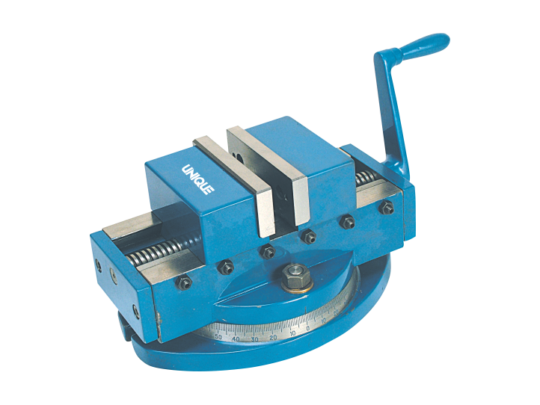

UNIQUE PRECISION SELF CENTERING VICE – CODE U1314S
-
Precision Self Centring
-
Vice -Swivel Base
-
-
| SIZE IN INCHES |
4 |
6 |
| Width of jaws in mm |
100 |
150 |
| Opening of jaws in mm |
100 |
150 |
| Depth of jaws in mm |
45 |
55 |
| Height overall in mm |
125 |
160 |
| Width overall in mm |
175 |
240 |
| Length overall in mm |
265 |
400 |
| Weight (Approx) in kgs. |
16 |
35 |
Features
- Casting close grained high tensile Seasoned Cast Iron.
- Screw spindle made of tool steel cut spindle thread for firm gripping and smooth operation.
- Fully Hardened and ground tool Steel Jaws.
- The 360° Swivel Base, graduated in 1° increment.
- alignment on the Machine table through longitudinal slot provided in the base.
- Accurate centring of jobs automatically.
