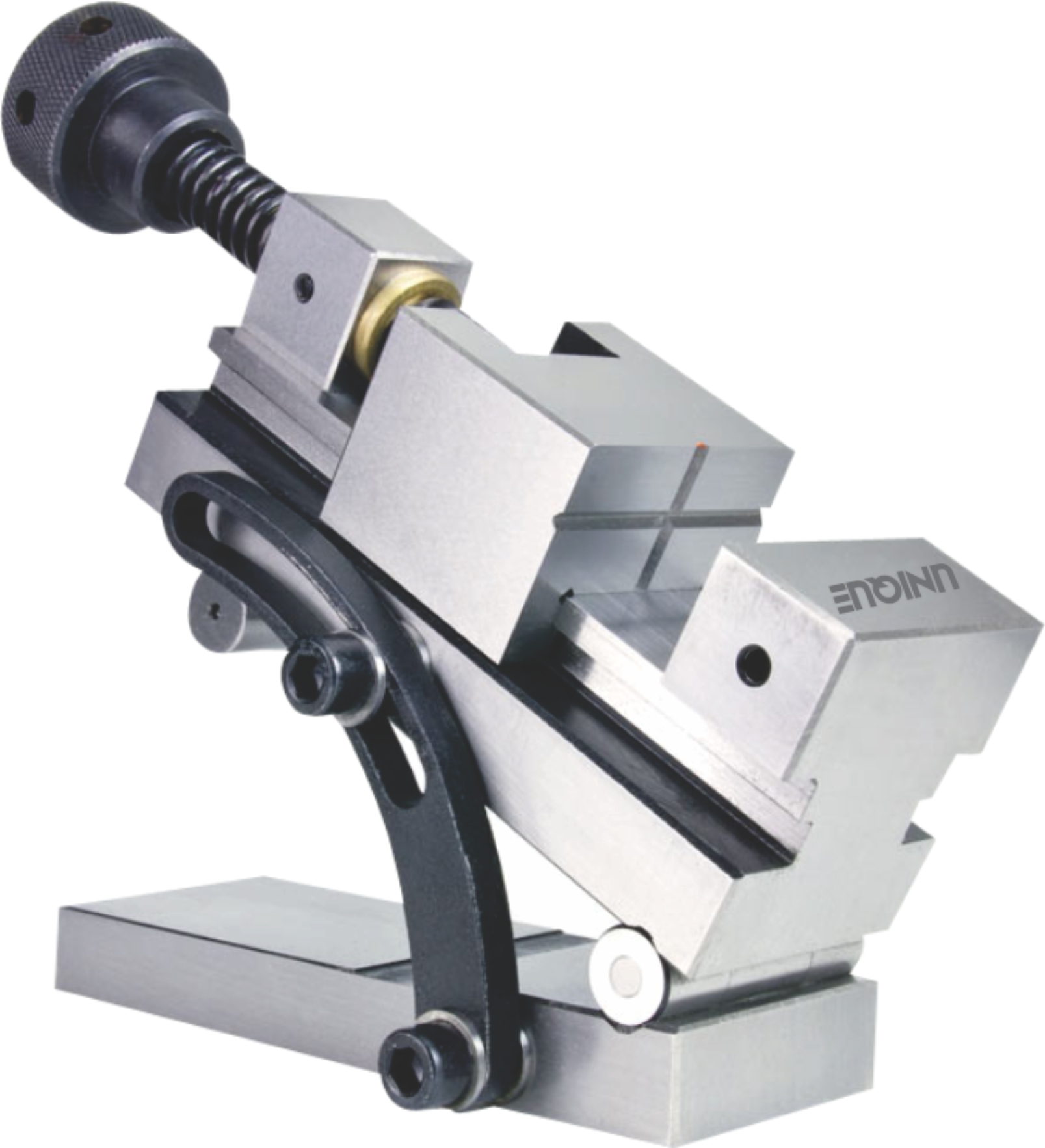

The Unique Precision Sine Vise (Lead Screw Type, Code U425) is a specialized work-holding solution engineered for high-accuracy angular machining and inspection applications. Constructed from hardened and tempered tool steel, this vise is precision ground to ensure stability and dimensional consistency. It utilizes a lead screw mechanism for secure clamping and allows for precise angle setting through the use of gauge blocks.
- Material Construction: Vise body and jaws are manufactured from high-grade Tool Steel, hardened and tempered for durability.
- Precision Ground: All surfaces are precision ground to maintain strict geometric tolerances.
- High Accuracy: Parallelism and squareness on all sides are maintained within ± 0.01mm / 100mm.
- Angular Versatility: Designed to facilitate the attainment of specific angles when used in conjunction with gauge blocks.
- Clamping Mechanism: Features a lead screw type design for reliable and controlled work-piece clamping.

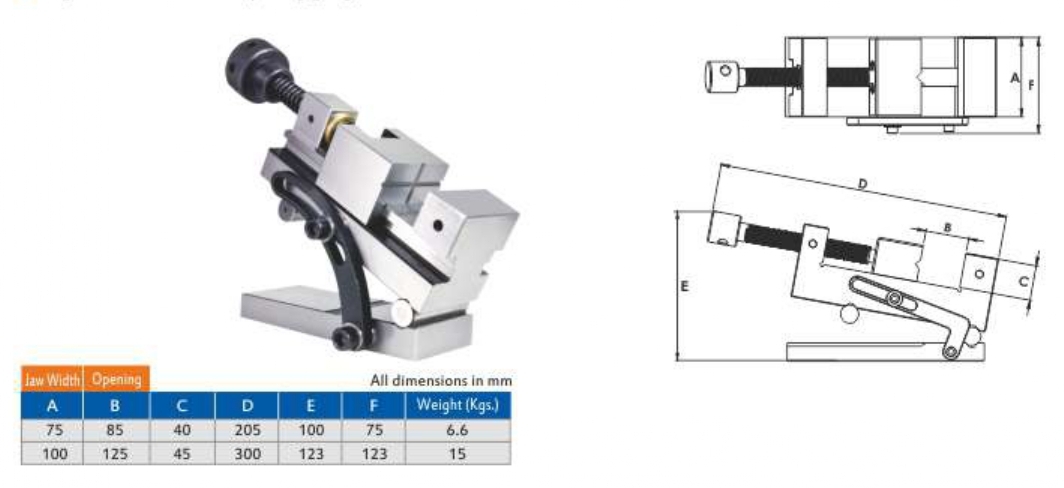

All dimensions are in millimeters (mm).
